Front Seat of Aston Martin Aston Martin GT DBS (2007-2012)

View All

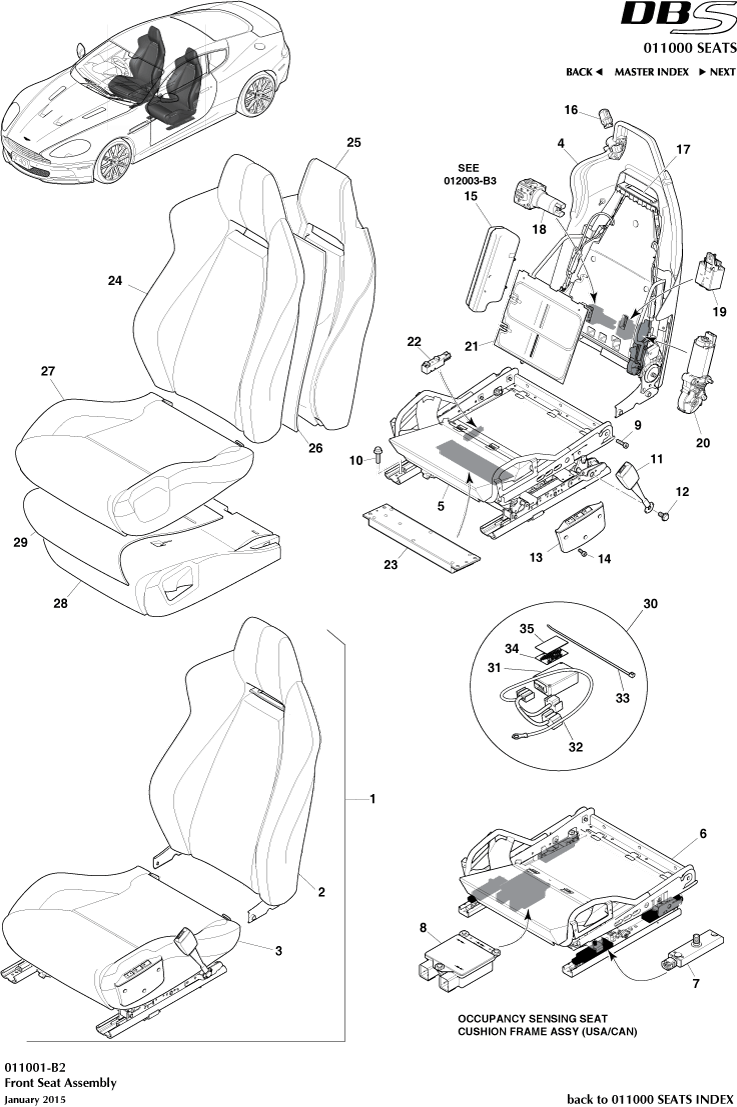

Aston Martin GT DBS (2007-2012) - Front Seat

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D3360009BAW	ASSY FRONT SEAT LHS	8D3360009BAW ASSY FRONT SEAT LHS -	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass USA/Can	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass USA/Can	-	1	Enquire
-	8D3360137BAW	FRONT SEAT SQUAB LH TRIMMED ASSY	8D3360137BAW FRONT SEAT SQUAB LH TRIMMED ASSY -	-	1	Enquire
-	8D3360051BAW	COVER ASSY FRONT SEAT CUSHION LH	8D3360051BAW COVER ASSY FRONT SEAT CUSHION LH -	-	1	Enquire
-	7G4364802AD	FRT ST SQB FRM MEM	7G4364802AD FRT ST SQB FRM MEM -	-	1	Enquire
-	7G43L60344AD	FRONT SEAT CUSHION FRAME HEIGHT ADJUST	7G43L60344AD FRONT SEAT CUSHION FRAME HEIGHT ADJUST USA/Can	-	1	Enquire
-	7G4314E693AA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH -	-	1	Enquire
-	4G437410689	Airbag, Side, LH	4G437410689 Airbag, Side, LH -	-	1	Enquire
-	SY9Y1188186AA	FLR VIN PL CVR PNL	SY9Y1188186AA FLR VIN PL CVR PNL For vehicles between VIN E00001 - E01458 Please refer to SB-01-0331	-	1	Enquire
-	CG4314C249BA	SEAT ECU	CG4314C249BA SEAT ECU 12MY	-	2	Enquire
-	AD3364573BAW	COVER ASSY SQUAB SPORTS SEAT	AD3364573BAW COVER ASSY SQUAB SPORTS SEAT -	-	1	Enquire
-	7G434D9513AB	SQUAB FOAM RH	7G434D9513AB SQUAB FOAM RH -	-	1	Enquire
-	8D3362901BAW	COVER ASSY FRONT SEAT CUSHION LH	8D3362901BAW COVER ASSY FRONT SEAT CUSHION LH -	-	1	Enquire
-	7G437411070	SEAT HARNESS	7G437411070 SEAT HARNESS Not illustrated	-	1	Enquire
1	8D3360008BAW	ASSY FRONT SEAT RHS	8D3360008BAW ASSY FRONT SEAT RHS -	-	1	Enquire
2	8D3360136BAW	FRONT SEAT SQUAB RH TRIMMED ASSY	8D3360136BAW FRONT SEAT SQUAB RH TRIMMED ASSY -	-	1	Enquire
3	8D3360050BAW	FRONT SEAT CUSHION TRIMMED ASSY RH	8D3360050BAW FRONT SEAT CUSHION TRIMMED ASSY RH -	-	1	Enquire
4	7G4364800AE	FR ST SQB FRAME MEM	7G4364800AE FR ST SQB FRAME MEM -	-	1	Enquire
5	7G43L60344AD	FRONT SEAT CUSHION FRAME HEIGHT ADJUST	7G43L60344AD FRONT SEAT CUSHION FRAME HEIGHT ADJUST ROW	-	2	Enquire
6	7G43L60344CB	Cushion Frame, Front Seat, Non Height Adjusting, OCS	7G43L60344CB Cushion Frame, Front Seat, Non Height Adjusting, OCS USA/Can	-	1	Enquire
7	7G43625B02BA	Sensor Passenger Seat Weight	7G43625B02BA Sensor Passenger Seat Weight USA/Can	-	1	Enquire
8	7G43625B00CC	Module, Passenger Seat Weight	7G43625B00CC Module, Passenger Seat Weight USA/Can	-	1	Enquire
9	4G4361538AB	M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT	4G4361538AB M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT -	-	4	Enquire
10	703733	SCREW-M8x25 HF PI8.8	703733 SCREW-M8x25 HF PI8.8 -	-	4	Enquire
12	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass NSS	-	2	Enquire
13	7G4314E693BA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	7G4314E693BA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH -	-	2	Enquire
15	4G437410690	Airbag, Side, RH	4G437410690 Airbag, Side, RH -	-	1	Enquire
16	6G33062A00AA	GLOVEBOX SWITCH	6G33062A00AA GLOVEBOX SWITCH -	-	1	Enquire
17	7G43605W00ACW	Strap, Squab Release, Manual Override	7G43605W00ACW Strap, Squab Release, Manual Override Not sold separately - Included with item 2	-	N/A	Enquire
18	8G3365532AA	Pump, Lumbar Support Air	8G3365532AA Pump, Lumbar Support Air -	-	1	Enquire
19	8G3365524AA	Valve, Lumbar Support Air	8G3365524AA Valve, Lumbar Support Air -	-	1	Enquire
20	4G437410127	Kit, Squab Motor	4G437410127 Kit, Squab Motor -	-	1	Enquire
21	8G3365500AA	LUMBAR SUPPORT BAG	8G3365500AA LUMBAR SUPPORT BAG -	-	1	Enquire
22	22AA815GP	ASSY BRKT RR FENDER INR RH	22AA815GP ASSY BRKT RR FENDER INR RH -	-	1	Enquire
23	SY9Y17504AA	WPR MTR ASY RHS RHD	SY9Y17504AA WPR MTR ASY RHS RHD For vehicles between VIN E00001 - E01458 Please refer to SB-01-0331	-	1	Enquire
24	AD3364572BAW	COVER ASSY SPORTS SEAT	AD3364572BAW COVER ASSY SPORTS SEAT -	-	1	Enquire
25	7G434D9514AB	SEAT BACK FOAM LH	7G434D9514AB SEAT BACK FOAM LH -	-	1	Enquire
26	7G4314D696AB	Heating Element, Squab	7G4314D696AB Heating Element, Squab -	-	2	Enquire
27	8D3362900BAW	COVER ASSY FRONT SEAT CUSHION RH	8D3362900BAW COVER ASSY FRONT SEAT CUSHION RH -	-	1	Enquire
28	8G439515AA	FRT ST CUSH FOAM RH	8G439515AA FRT ST CUSH FOAM RH -	-	1	Enquire
29	7G4314D698AC	Element, Seat Base Heater	7G4314D698AC Element, Seat Base Heater -	-	2	Enquire
30	FG43632B22AA	SUPERVISOR KIT	FG43632B22AA SUPERVISOR KIT See QN-01-0026, January 2015	-	1	Enquire
31	FG4318B512AA	SUPERVISOR BOX	FG4318B512AA SUPERVISOR BOX Part of kit #30	-	2	Enquire
32	FG4314B510AA	SUPERVISOR HARNESS	FG4314B510AA SUPERVISOR HARNESS Part of kit #30	-	2	Enquire
33	4G43N02091AB	Tie, Wrap	4G43N02091AB Tie, Wrap Part of kit #30	-	2	Enquire
34	920033488	SPARCO RACING GLOVES 12	920033488 SPARCO RACING GLOVES 12 Part of kit #30	-	2	Enquire
35	920033489	SPARCO RACING GLOVES 13	920033489 SPARCO RACING GLOVES 13 Part of kit #30	-	2	Enquire
