Body Structure - Body Rear End Composite, Volante

Aston Martin GT DBS (2007-2012)

Find Your Part

Aston Martin GT DBS (2007-2012) - Body Structure - Body Rear End Composite, Volante

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

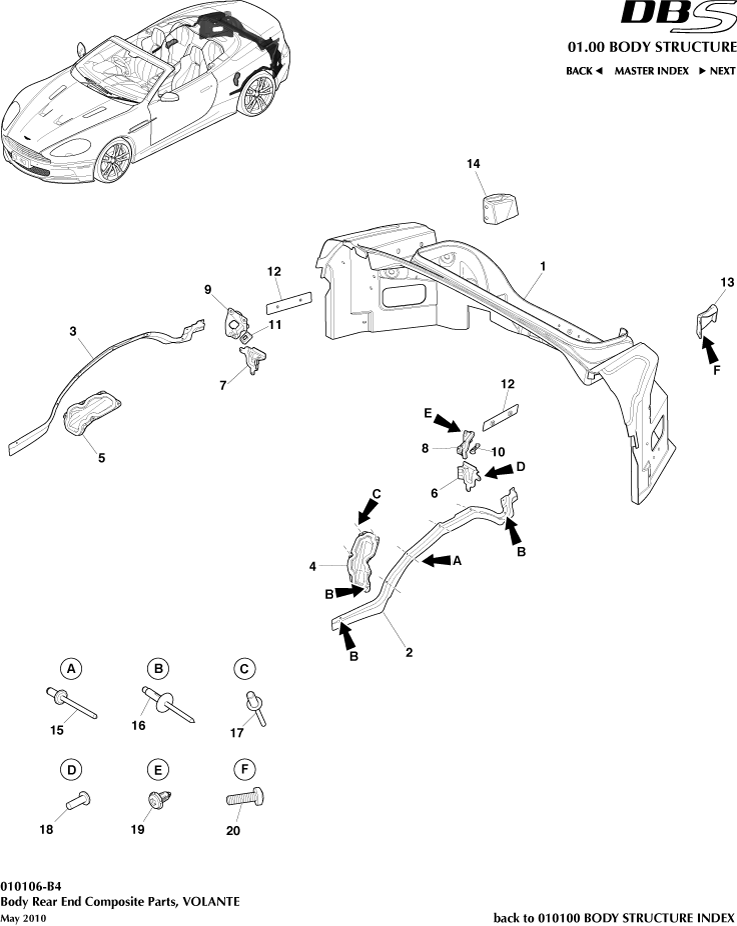

Body Structure - Body Rear End Composite, Volante of Aston Martin Aston Martin GT DBS (2007-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8G43L45108AA
TRUNK LID SURROUND
Structural Cat. A only 		- 1 Enquire
2 8D33110825AE
Panel, Body Side Outer to Tube, LH
Structural Cat. A only 		- 1 Enquire
3 8D33110824AE
Panel, Body Side Outer to Tube, RH
Structural Cat. A only 		- 1 Enquire
4 4G432K197AB
CA ASY RR WHL BRK QUAD LH
- 		- 1 Enquire
5 4G432K198AB
CA ASY RR WHL BRK QUAD RH
- 		- 1 Enquire
6 4G43500B31AC
TONNEAU LH
- 		- 1 Enquire
7 4G43500B30AC
TONNEAU DRAIN RH
- 		- 1 Enquire
8 4G43430A47AF
Seal, Hinge to Inner Panel, LH
- 		- 1 Enquire
9 4G43430A46AF
Seal, Hinge to Inner Panel, RH
- 		- 1 Enquire
10 4G43427A21AD
Wipe seal, Tonneau Hinge, LH
- 		- 1 Enquire
11 4G43427A20AD
Wipe seal, Tnneau Hinge, RH
- 		- 1 Enquire
12 4G43C42764AG
Support Bracket, Decklid Hinge Mounting
- 		- 2 Enquire
13 4G43L40739AF
FILL TL GTPNL LWR CN
- 		- 1 Enquire
14 4G43L40738AF
FILL TL GTPNL LWR CN
- 		- 1 Enquire
16 6G33RA610123AA
Pop Rivet, Aluminium, 4.8
- 		- 4 Enquire
17 703754
RIVET-BLIND- 4.8x6.4-7.9 ALLOY/S.STEEL
- 		- 8 Enquire
18 703074
Rivet, 4.65 x 13.8
- 		- 4 Enquire
19 4G437810814
Fastener Assembly, 6.2x3, 5.8, Push In
- 		- 6 Enquire
20 700607
Screw Hex Flange Head M6 x 16mm
- 		- 4 Enquire
