Exterior Trim - Bodyside & Quarter Trim , Coupe of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Exterior Trim - Bodyside & Quarter Trim , Coupe

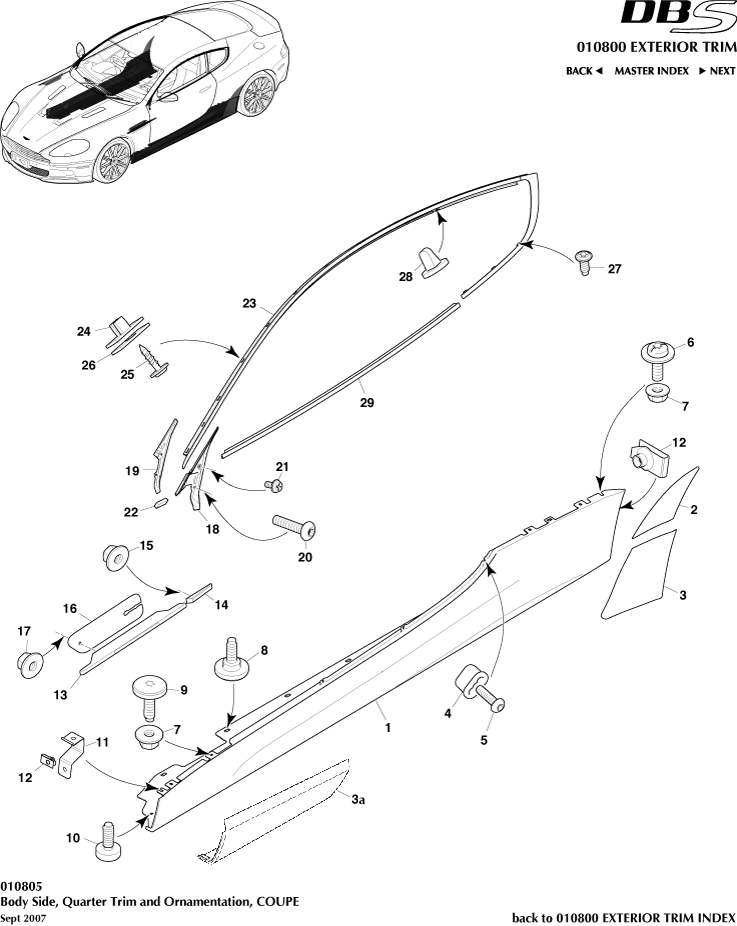

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D3310608AE	SILL APPLIQUE RH	8D3310608AE SILL APPLIQUE RH -	-	1	Enquire
-	8D3310631AB	Tape, Rear quarter, LH	8D3310631AB Tape, Rear quarter, LH From 08MY	-	1	Enquire
-	4G4310630AB	REAR QTR TAPE RH	4G4310630AB REAR QTR TAPE RH Up To 08MY	-	1	Enquire
-	8D3310630AB	Tape, Rear quarter, RH	8D3310630AB Tape, Rear quarter, RH From 08MY	-	1	Enquire
-	8D3310626AD	SILL REAR TAPE RH	8D3310626AD SILL REAR TAPE RH From 07MY	-	1	Enquire
-	8G4310627AA	SILL FRT TAPE LH	8G4310627AA SILL FRT TAPE LH From 09MY	-	1	Enquire
-	4G4310626AA	SILL FRONT TAPE RH	4G4310626AA SILL FRONT TAPE RH Up To 09MY	-	1	Enquire
-	8G4310626AB	SILL FRT TAPE RH	8G4310626AB SILL FRT TAPE RH From 09MY	-	1	Enquire
-	8D33280B62AE	SIDE STRAKE FENDER RH	8D33280B62AE SIDE STRAKE FENDER RH -	-	1	Enquire
-	8D33018K28AC	SIDE STRAKE DOOR RH	8D33018K28AC SIDE STRAKE DOOR RH -	-	1	Enquire
-	BD33280B84AA	MESH SIDE STRAKE LH BLACK	BD33280B84AA MESH SIDE STRAKE LH BLACK Carbon Edition, DBS Ultimate	-	1	Enquire
-	8D33280B83AC	MESH SIDE STRAKE RH	8D33280B83AC MESH SIDE STRAKE RH -	-	1	Enquire
-	BD33280B83AA	MESH SIDE STRAKE RH BLACK	BD33280B83AA MESH SIDE STRAKE RH BLACK Carbon Edition, DBS Ultimate	-	1	Enquire
-	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH	4G43C02564BD Retainer Assy, Front Body W/Strip Cover Primary, RH -	-	1	Enquire
-	4G43C02564AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	4G43C02564AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH -	-	1	Enquire
-	4G43519A37AL	ROOF FINISHER SIDE	4G43519A37AL ROOF FINISHER SIDE -	-	1	Enquire
-	4G43F20562AG	DR WAIST SEAL OTR RH	4G43F20562AG DR WAIST SEAL OTR RH -	-	1	Enquire
1	8D3310609AE	SILL APPLIQUE LH	8D3310609AE SILL APPLIQUE LH -	-	1	Enquire
2	4G4310631AB	REAR QTR TAPE LH	4G4310631AB REAR QTR TAPE LH Up To 08MY	-	1	Enquire
3	8D3310627AD	SILL REAR TAPE LH	8D3310627AD SILL REAR TAPE LH From 07MY	-	1	Enquire
3a	4G4310627AA	SILL FRONT TAPE LH 350X175MM	4G4310627AA SILL FRONT TAPE LH 350X175MM Up To 09MY	-	1	Enquire
4	4G4348954AA	SILL ANTI STRIP LOCKNUT	4G4348954AA SILL ANTI STRIP LOCKNUT -	-	1	Enquire
5	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) -	-	6	Enquire
6	703743	SCREW &WASHER M6x18	703743 SCREW &WASHER M6x18 -	-	2	Enquire
7	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head -	-	4	Enquire
8	701567	Screw, M6 x 16	701567 Screw, M6 x 16 -	-	14	Enquire
9	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) -	-	4	Enquire
10	6G430516BBA	Screw, M6 x 16, Self Tapping	6G430516BBA Screw, M6 x 16, Self Tapping -	-	14	Enquire
11	8D3316586AA	WHEEL ARCH LINER SUPPORT BRACKET	8D3316586AA WHEEL ARCH LINER SUPPORT BRACKET -	-	2	Enquire
12	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) - ARRIVING SOON	-	2	Enquire
13	8D33280B63AE	SIDE STRAKE FENDER LH	8D33280B63AE SIDE STRAKE FENDER LH -	-	1	Enquire
14	8D33018K29AC	SIDE STRAKE DOOR LH	8D33018K29AC SIDE STRAKE DOOR LH -	-	1	Enquire
15	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE -	-	4	Enquire
16	8D33280B84AC	MESH SIDE STRAKE LH	8D33280B84AC MESH SIDE STRAKE LH -	-	1	Enquire
17	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	4	Enquire
18	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	4G43C02565BD Retainer Assy, Front Body W/Strip Cover Primary, LH -	-	1	Enquire
19	4G43C02565AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	4G43C02565AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH -	-	1	Enquire
20	702217	Screw, M5 x 2.5 x 20, Internal Hex Dome Head	702217 Screw, M5 x 2.5 x 20, Internal Hex Dome Head -	-	2	Enquire
21	700235	SCREW 4.2x905 TAP	700235 SCREW 4.2x905 TAP -	-	2	Enquire
22	4G43C47775BA	ADHESIVE FOAM STRIP ROOF EDGE LOWER	4G43C47775BA ADHESIVE FOAM STRIP ROOF EDGE LOWER -	-	2	Enquire
23	4G43519A36AL	ROOF FINISHER SIDE G	4G43519A36AL ROOF FINISHER SIDE G -	-	1	Enquire
24	7G43143002AA	GROMMET NUT 4.2	7G43143002AA GROMMET NUT 4.2 -	-	26	Enquire
25	703104	Screw 4.8x1.59x19 04.8 Chrome Free Self Taping	703104 Screw 4.8x1.59x19 04.8 Chrome Free Self Taping -	-	36	Enquire
26	8G434999AA	Washer, Load Spreading	8G434999AA Washer, Load Spreading -	-	16	Enquire
28	701656PK	RETAINER(PACK OF 10)	701656PK RETAINER(PACK OF 10) -	-	36	Enquire
29	4G43F20563AG	DR WAIST SEAL OTR LH	4G43F20563AG DR WAIST SEAL OTR LH -	-	1	Enquire
