Aston Martin GT DBS (2007-2012) - Front Structure - Grille Opening Panel

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

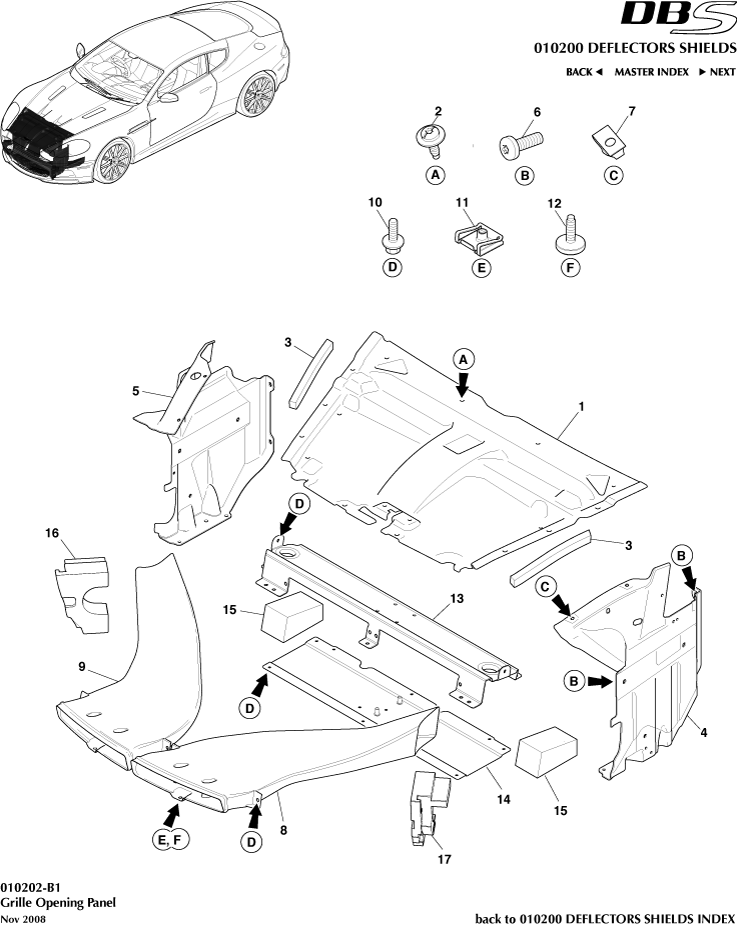

Front Structure - Grille Opening Panel of Aston Martin Aston Martin GT DBS (2007-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 697810PK
WSHR-M6x25 SSBLK(10)
- 		- 2 Enquire
- 9D338052AA
CVR ASY - RAD SUPT LWR
9.5MY 		- 1 Enquire
1 8D338136AB
GRL ASSY RAD CTR
- 		- 1 Enquire
2 703743
SCREW &WASHER M6x18
- 		- - Enquire
4 8G43F01991AE
PNL VEN AIR LH
- 		- 1 Enquire
5 8G43F01990AE
PNL VEN AIR RH
- 		- 1 Enquire
6 703172PK
Screw M8 x 25 Pan Head (Pack of 10)
- 		- 8 Enquire
7 703740
NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG
- 		- 4 Enquire
8 8D332D207AB
DCT BRK CNTR COOL LH
- 		- 1 Enquire
9 8D332D206AB
DCT BRK CNTR COOL RH
- 		- 1 Enquire
10 703265
Screw, M6 x 16, Hex Flange Head
- 		- - Enquire
11 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
-
ARRIVING SOON 		- 2 Enquire
12 6G33FA0115AB
Screw & Washer, M6 x 20, Torx Hd
- 		- 2 Enquire
13 8D338052AC
CVR ASY - RAD SUPT LWR
- 		- 1 Enquire
15 8D3342761AA
Foam Pad, Cover Assy Radiator Support
- 		- 2 Enquire
16 8D33334610AB
BMPR INTF FOAM RH
- 		- 1 Enquire
17 8D33334611AB
BMPR INTF FOAM LH
- 		- 1 Enquire
