Aston Martin GT DBS (2007-2012) - Body Structure - EV Structure, Volante, page 2

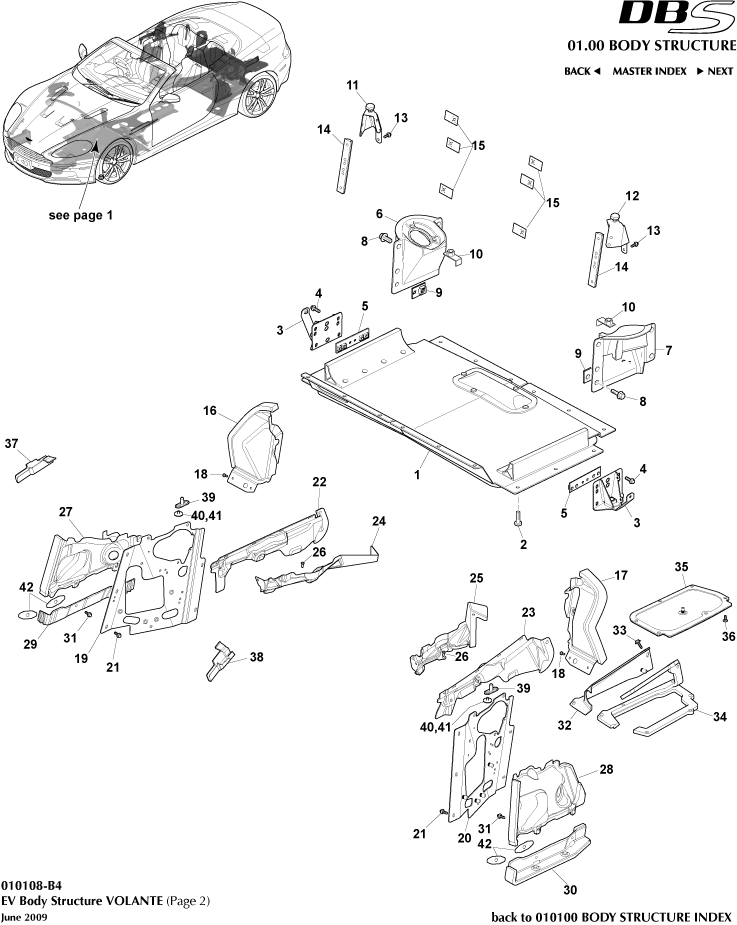

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4338580AF	ASSY PANEL FUEL TANK COMPARTMENT LOWER	4G4338580AF ASSY PANEL FUEL TANK COMPARTMENT LOWER -	-	1	Enquire
2	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head -	-	18	Enquire
4	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder -	-	-	Enquire
5	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	6G335N394AB Nutplate Bracket, Rear Subframe Stabiliser, Upper -	-	2	Enquire
6	SY9Y20122EC	DOOR ASSY RH	SY9Y20122EC DOOR ASSY RH -	-	1	Enquire
7	SY9Y044E36BCW	ASSY LWR DRV MIDL PD	SY9Y044E36BCW ASSY LWR DRV MIDL PD -	-	1	Enquire
8	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	703185 M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE 4 per member	-	8	Enquire
10	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14 -	-	2	Enquire
11	4G434S018AA	Bracket, Tonneau Cover Bump Stop Mounting, RH	4G434S018AA Bracket, Tonneau Cover Bump Stop Mounting, RH -	-	1	Enquire
12	4G434S017AA	Bracket, Tonneau Cover Bump Stop Mounting, LH	4G434S017AA Bracket, Tonneau Cover Bump Stop Mounting, LH -	-	1	Enquire
13	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 3 per bkt	-	6	Enquire
16	9G4328114AA	Baffle, Quarter Panel At Wheel, Housing Upper, RH	9G4328114AA Baffle, Quarter Panel At Wheel, Housing Upper, RH -	-	1	Enquire
17	9G4328115AA	Baffle, Quarter Panel At Wheel, Housing Upper, LH	9G4328115AA Baffle, Quarter Panel At Wheel, Housing Upper, LH -	-	1	Enquire
18	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head 3 per panel	-	6	Enquire
19	8G43L04702GA	PANEL WINDOW REGULATOR OPENING COVER RH	8G43L04702GA PANEL WINDOW REGULATOR OPENING COVER RH -	-	1	Enquire
20	8G43L04703GA	PANEL WINDOW REGULATOR OPENING COVER LH	8G43L04703GA PANEL WINDOW REGULATOR OPENING COVER LH -	-	1	Enquire
21	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 10 per panel	-	20	Enquire
22	4G43A410K24AG	PNL RR BDY PLR CLSG	4G43A410K24AG PNL RR BDY PLR CLSG -	-	1	Enquire
23	4G43A410K25AG	PNL RR BDY PLR CLSG	4G43A410K25AG PNL RR BDY PLR CLSG -	-	1	Enquire
24	9G435422AA	SE ASY BRG CST RR	9G435422AA SE ASY BRG CST RR -	-	1	Enquire
25	9G435423AA	SE ASY BRG CST RR	9G435423AA SE ASY BRG CST RR -	-	1	Enquire
26	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head 3 per panel	-	6	Enquire
29	4G43303A92AB	QTR WINDOW REG MNT BRKT RH	4G43303A92AB QTR WINDOW REG MNT BRKT RH -	-	1	Enquire
30	4G43303A92AB	QTR WINDOW REG MNT BRKT RH	4G43303A92AB QTR WINDOW REG MNT BRKT RH -	-	1	Enquire
31	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 2 per bkt	-	4	Enquire
32	9G43507A62AC	TONNEAU PUMP COVER PLATE LEFT HAND SIDE	9G43507A62AC TONNEAU PUMP COVER PLATE LEFT HAND SIDE -	-	1	Enquire
33	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) -	-	3	Enquire
34	9G43P8K141AA	TON HYD CYL CLS PLT	9G43P8K141AA TON HYD CYL CLS PLT -	-	1	Enquire
36	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE -	-	6	Enquire
37	4G43L025C50AB	Trough, Front Body Pillar Upper, RH	4G43L025C50AB Trough, Front Body Pillar Upper, RH -	-	1	Enquire
38	4G43L025C51AB	Trough, Front Body Pillar Upper, LH	4G43L025C51AB Trough, Front Body Pillar Upper, LH -	-	1	Enquire
40	697810PK	WSHR-M6x25 SSBLK(10)	697810PK WSHR-M6x25 SSBLK(10) 2 per pin	-	4	Enquire
41	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head 2 per pin	-	4	Enquire
