Interior Trim - Floor Trim, LHD of Aston Martin Aston Martin GT DBS (2007-2012)

View All

Aston Martin GT DBS (2007-2012) - Interior Trim - Floor Trim, LHD

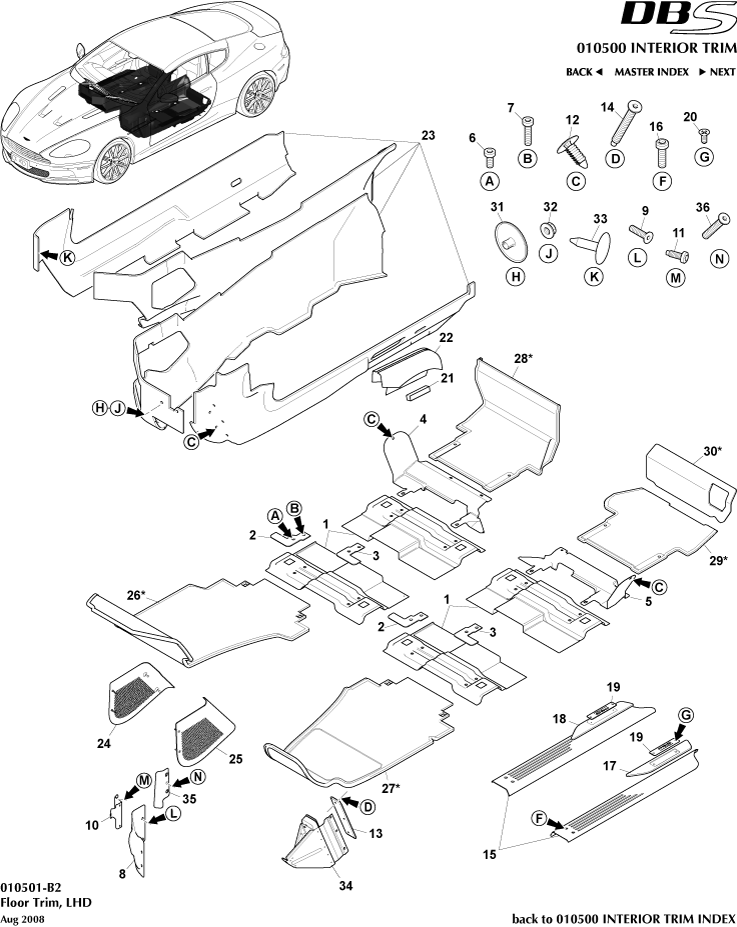

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D3313242AD	KIT - DOOR PLATE SCF	8D3313242AD KIT - DOOR PLATE SCF Black	-	1	Enquire
-	8D3368D11AA	M6 X 20 SOCKET LOW HEAD BOLT STAINLESS STEEL	8D3368D11AA M6 X 20 SOCKET LOW HEAD BOLT STAINLESS STEEL Black	-	4	Enquire
-	AD33132A51AA	NAME PLATE FRONT SILL SCUFF CARBON BLACK DBS	AD33132A51AA NAME PLATE FRONT SILL SCUFF CARBON BLACK DBS Carbon Black Edition	-	2	Enquire
-	CD33132A50AA	NM PLT FRT SILL SCF	CD33132A50AA NM PLT FRT SILL SCF Carbon Edition	-	2	Enquire
-	CG338010635	NM PLATE FRT SILL	CG338010635 NM PLATE FRT SILL Dragon 88-English	-	2	Enquire
-	CG338010634	NAME PLATE FRT SILL	CG338010634 NAME PLATE FRT SILL Dragon 88 - Mandarin	-	2	Enquire
-	CD338010120	NM PLATE FRT SILL	CD338010120 NM PLATE FRT SILL DBS Ultimate	-	2	Enquire
-	SY9Y11465AA	OIL COOLER MNT BRAKT	SY9Y11465AA OIL COOLER MNT BRAKT LHD 9.5MY	-	1	Enquire
-	9D33281B11DCW	KIT ASSEMBLY SIDE CARPET LHD HEAVYWEIGHT	9D33281B11DCW KIT ASSEMBLY SIDE CARPET LHD HEAVYWEIGHT LHD 9.5MY	-	1	Enquire
-	9D33311A76DA	FOOTWELL SPKR GRL RH	9D33311A76DA FOOTWELL SPKR GRL RH Carbon Edition, DBS Ultimate	-	1	Enquire
-	9D33311A77DA	FOOTWELL SPKR GRL LH	9D33311A77DA FOOTWELL SPKR GRL LH Carbon Edition, DBS Ultimate	-	1	Enquire
*	8D338310023	KIT ASSEMBLY FLOOR CARPET LHD- EDGE TRIMMED	8D338310023 KIT ASSEMBLY FLOOR CARPET LHD- EDGE TRIMMED -	-	1	Enquire
*	8D338310053	KIT ASSEMBLY FLOOR CARPET OBSIDIAN BLK LHD - EDGE TRIMMED	8D338310053 KIT ASSEMBLY FLOOR CARPET OBSIDIAN BLK LHD - EDGE TRIMMED -	-	1	Enquire
-	6G33100N00AA	Adhesive Tape, Double Sided	6G33100N00AA Adhesive Tape, Double Sided -	-	-	Enquire
1	8D33M1H403AB	FLOOR PAN COVER	8D33M1H403AB FLOOR PAN COVER -	-	4	Enquire
2	6G33666A40AA	CRPT FINISH RHS COMM	6G33666A40AA CRPT FINISH RHS COMM -	-	2	Enquire
3	6G33666A41AA	CRPT FINISH LHS COMM	6G33666A41AA CRPT FINISH LHS COMM -	-	2	Enquire
4	4G43100A90AA	Support Panel, Rear Floor, RH	4G43100A90AA Support Panel, Rear Floor, RH -	-	1	Enquire
5	8G43100A91AB	LH REAR FLOOR SUPPORT	8G43100A91AB LH REAR FLOOR SUPPORT -	-	1	Enquire
6	6G3368D11BA	Screw, M5 x 20, Cap Head	6G3368D11BA Screw, M5 x 20, Cap Head -	-	4	Enquire
7	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head -	-	4	Enquire
8	4G4318449BD	ACCELERATOR SCUFF PLATE LHD	4G4318449BD ACCELERATOR SCUFF PLATE LHD -	-	1	Enquire
9	4G433L657AA	Screw, M5 x 20, Countersunk, Black	4G433L657AA Screw, M5 x 20, Countersunk, Black -	-	4	Enquire
10	4G432B099AC	FT SCF PLT REINF BRK	4G432B099AC FT SCF PLT REINF BRK -	-	1	Enquire
11	701554	Screw, M5 x 12, Pan Hd	701554 Screw, M5 x 12, Pan Hd -	-	1	Enquire
12	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK -	-	3	Enquire
13	4G4312020BA	LHD FOOTREST TOP PAD ASY	4G4312020BA LHD FOOTREST TOP PAD ASY -	-	1	Enquire
14	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK -	-	3	Enquire
15	16AD545CP	LATCH DOOR POWER CLOSE LH	16AD545CP LATCH DOOR POWER CLOSE LH Polished Alloy	$403.07	1
16	6G33SS106209AA	M6 X 20 SKT BOLT	6G33SS106209AA M6 X 20 SKT BOLT Stainless Steel	-	1	Enquire
19	SY9Y044E37BCW	ASSY LWR PASS MIDL	SY9Y044E37BCW ASSY LWR PASS MIDL -	-	2	Enquire
20	697687	SCREW No6 x 9.5 CSK BLACK	697687 SCREW No6 x 9.5 CSK BLACK -	-	4	Enquire
21	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	4G43M4D4515AA Foam Strip, Handbrake Gaiter -	-	1	Enquire
22	4G43831237ABW	HANDBRAKE GAITER ASSY LHD	4G43831237ABW HANDBRAKE GAITER ASSY LHD -	-	1	Enquire
23	8D33281B11ABW	KIT ASSEMBLY SIDE CARPET LHD LIGHT	8D33281B11ABW KIT ASSEMBLY SIDE CARPET LHD LIGHT -	-	1	Enquire
24	9D33311A76CA	Speaker Grille, Footwell, RH, B&O	9D33311A76CA Speaker Grille, Footwell, RH, B&O 9.5MY	-	1	Enquire
25	9D33311A77CA	Speaker Grille, Footwell, LH, B&O	9D33311A77CA Speaker Grille, Footwell, LH, B&O 9.5MY	-	1	Enquire
26*	RY6314025AA	PAS DR HRNS LK	RY6314025AA PAS DR HRNS LK NSS - Please use Floor Carpet Kit	-	N/A	Enquire
27*	RY6314631AA	RHS DR HRNS	RY6314631AA RHS DR HRNS NSS - Please use Floor Carpet Kit	-	N/A	Enquire
28*	SY9Y10056AA	DRV ST MOD BRCKT R	SY9Y10056AA DRV ST MOD BRCKT R NSS - Please use Floor Carpet Kit	-	N/A	Enquire
29*	SY9Y044E37GCW	ASSY LWR PASS MIDL P	SY9Y044E37GCW ASSY LWR PASS MIDL P NSS - Please use Floor Carpet Kit	-	N/A	Enquire
30*	8D3310K973ABW	LH RR CARPET BOARD ASSY	8D3310K973ABW LH RR CARPET BOARD ASSY -	-	1	Enquire
31	6G3313925AA	Push On Button, M5 x 35	6G3313925AA Push On Button, M5 x 35 -	-	3	Enquire
33	4G43STC3710AA	FIR TREE 8MM	4G43STC3710AA FIR TREE 8MM -	-	2	Enquire
34	4G433N328BE	Bracket, Foot Rest	4G433N328BE Bracket, Foot Rest LHD	-	1	Enquire
35	9D33201A49AA	Sheild, Speaker Grille Protection LH	9D33201A49AA Sheild, Speaker Grille Protection LH 09MY	-	1	Enquire
36	703725	SCREW-M4x10 FLAT CSK SOCKET-STAINLESS STL	703725 SCREW-M4x10 FLAT CSK SOCKET-STAINLESS STL 9.5MY	-	1	Enquire
