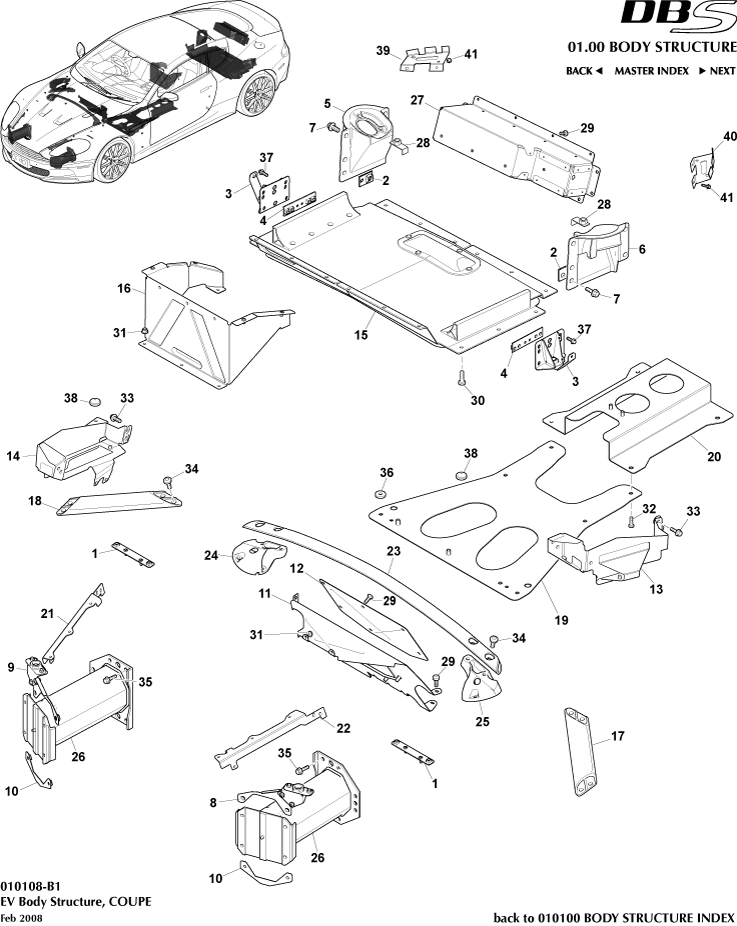

Aston Martin GT DBS (2007-2012) - Body Structure - EV Structure, Coupe

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 -	-	2	Enquire
-	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 -	-	2	Enquire
-	4G43111C61AD	PNL DUMMY FLR FRT	4G43111C61AD PNL DUMMY FLR FRT -	-	1	Enquire
1	8D33199901AA	NUTPLATE HEAD LAMP BRACKET	8D33199901AA NUTPLATE HEAD LAMP BRACKET -	-	2	Enquire
2	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front -	-	2	Enquire
3	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	6G335D022AD BRACKET REAR SUB FRAME STABILISER -	-	2	Enquire
4	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	6G335N394AB Nutplate Bracket, Rear Subframe Stabiliser, Upper -	-	2	Enquire
5	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	6G3318A000AD Member, Rear Shock Absorber Mounting, RH -	-	2	Enquire
6	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	6G3318A001AD Member, Rear Shock Absorber Mounting, LH -	-	2	Enquire
7	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	703185 M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE -	-	8	Enquire
8	8D3313069AB	PNL HD/LP MNTG LH	8D3313069AB PNL HD/LP MNTG LH -	-	1	Enquire
9	8D3313068AB	PNL HD/LP MTNG RH	8D3313068AB PNL HD/LP MTNG RH -	-	1	Enquire
10	4G436367912AC	NUT PLT ASY FRT CRSH	4G436367912AC NUT PLT ASY FRT CRSH -	-	2	Enquire
11	4G43111C60AD	PANEL DUMMY FLOOR FRONT	4G43111C60AD PANEL DUMMY FLOOR FRONT -	-	1	Enquire
12	4G43111B48AB	Panel, Dummy Floor Cover, Front	4G43111B48AB Panel, Dummy Floor Cover, Front -	-	1	Enquire
13	4G435341AJ	BRACKET ECU MOUNTING LH	4G435341AJ BRACKET ECU MOUNTING LH -	-	1	Enquire
14	4G435340AJ	BRACKET ECU MOUNTING RH	4G435340AJ BRACKET ECU MOUNTING RH -	-	1	Enquire
15	4G4338580AJ	ASY PNL F/TNK COMP	4G4338580AJ ASY PNL F/TNK COMP -	-	1	Enquire
16	4G4367518AE	PANEL REAR SEAT HEEL BOARD RH	4G4367518AE PANEL REAR SEAT HEEL BOARD RH -	-	1	Enquire
17	P04G43F00199BA	REINF BDY FRT CS BAR	P04G43F00199BA REINF BDY FRT CS BAR -	-	1	Enquire
18	P04G43F00198BA	REINF BDY FRT CS BAR	P04G43F00198BA REINF BDY FRT CS BAR -	-	1	Enquire
19	4G43111K36AE	TNL REINF FRT	4G43111K36AE TNL REINF FRT -	-	1	Enquire
21	4G43043B19AB	TUB PASS AIR BAG INT	4G43043B19AB TUB PASS AIR BAG INT -	-	1	Enquire
22	4G43043B20AB	TUB PASS AIR BAG INT	4G43043B20AB TUB PASS AIR BAG INT -	-	1	Enquire
23	4G43108A75AA	BRA FRT CS	4G43108A75AA BRA FRT CS -	-	1	Enquire
24	8D33108A86AA	BRACKET FRONT CROSS BRACE RH	8D33108A86AA BRACKET FRONT CROSS BRACE RH -	-	1	Enquire
25	8D33108A87AA	BRACKET FRONT CROSS BRACE LH	8D33108A87AA BRACKET FRONT CROSS BRACE LH -	-	1	Enquire
26	AD43V17N800AC	BUMPER FRONT CRASH CAN	AD43V17N800AC BUMPER FRONT CRASH CAN Structural Cat. A only	-	2	Enquire
27	SY9Y14024AB	FRT DR TR LINK RHS D	SY9Y14024AB FRT DR TR LINK RHS D -	-	1	Enquire
28	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14 -	-	2	Enquire
29	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head -	-	25	Enquire
30	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head -	-	18	Enquire
31	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE -	-	5	Enquire
32	703172	SCREW M8x25 PAN 8	703172 SCREW M8x25 PAN 8 -	-	8	Enquire
33	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	12	Enquire
34	SY9YC27847FC	PNL BDYSD LH FED SC	SY9YC27847FC PNL BDYSD LH FED SC -	-	8	Enquire
35	704495	Screw, M8 x 35, Hex Flange Head	704495 Screw, M8 x 35, Hex Flange Head -	-	12	Enquire
36	4G431660AA	TUNNEL REINFORCEMENT FRONT SPACER	4G431660AA TUNNEL REINFORCEMENT FRONT SPACER -	-	4	Enquire
37	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder -	-	-	Enquire
38	4G43061B70AA	CAP DUST COVER	4G43061B70AA CAP DUST COVER -	-	2	Enquire
39	8D33392678AB	REAR 1/4 SUPPORT BRACKET RH	8D33392678AB REAR 1/4 SUPPORT BRACKET RH -	-	1	Enquire
40	8D33392679AB	REAR 1/4 SUPPORT BRACKET LH	8D33392679AB REAR 1/4 SUPPORT BRACKET LH -	-	1	Enquire
41	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 2 per brkt	-	4	Enquire
