Body Structure - Underbody Rear, Volante of Aston Martin Aston Martin GT DBS (2007-2012)

View All

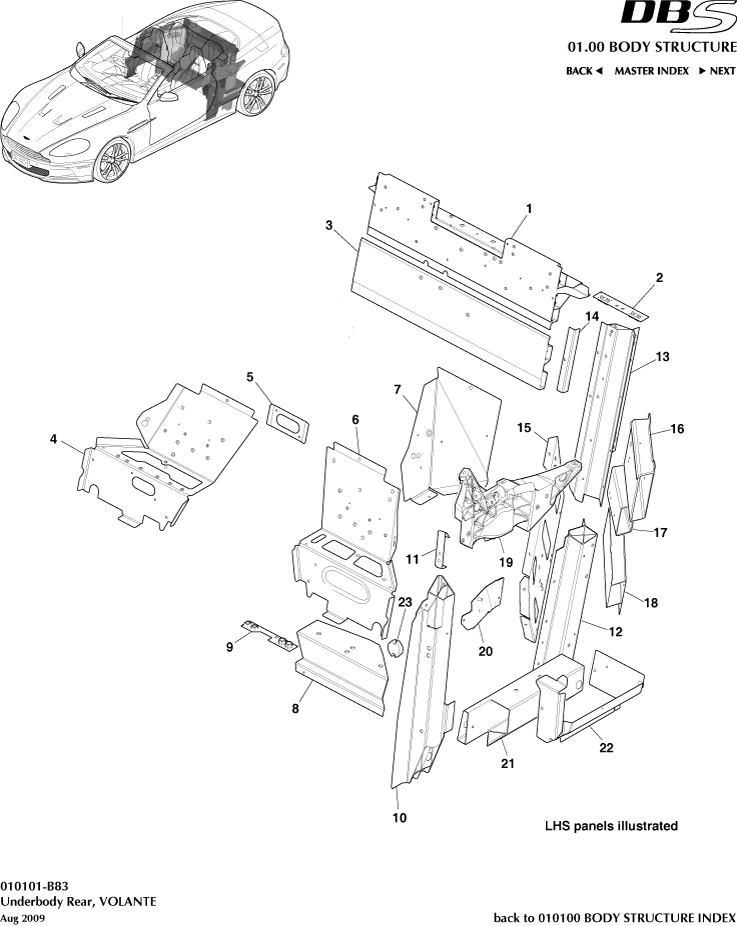

Aston Martin GT DBS (2007-2012) - Body Structure - Underbody Rear, Volante

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	SY9Y69321BCW	SUNVISOR LH LEATHER	SY9Y69321BCW SUNVISOR LH LEATHER Structural Cat. A only	-	1	Enquire
-	SY9Y044A90BCW	IPA PLR FNSHR ASY RH	SY9Y044A90BCW IPA PLR FNSHR ASY RH Structural Cat. A only	-	1	Enquire
-	8G43347864AA	FRT RH NUTPLATE REAR SUBFRAME FRT RH	8G43347864AA FRT RH NUTPLATE REAR SUBFRAME FRT RH Structural Cat. A only	-	1	Enquire
-	8G43L24312AC	PILLAR CENTRE BODY RH	8G43L24312AC PILLAR CENTRE BODY RH Structural Cat. A only	-	1	Enquire
-	985902727	COMPL. TAILGATE	985902727 COMPL. TAILGATE Structural Cat. A only	-	1	Enquire
-	SY9Y17A835EA	NUMBER PLATE PLINTH	SY9Y17A835EA NUMBER PLATE PLINTH Structural Cat. A only	-	1	Enquire
-	8G4327924AA	PANEL REAR QUARTER INSIDE RH	8G4327924AA PANEL REAR QUARTER INSIDE RH Structural Cat. A only	-	1	Enquire
-	SY9Y10013AC	TWIN DOOR LHS CARRIE	SY9Y10013AC TWIN DOOR LHS CARRIE Structural Cat. A only	-	1	Enquire
-	SY9Y042A75BDW	CNSL PNL CENTRE ASSY	SY9Y042A75BDW CNSL PNL CENTRE ASSY Structural Cat. A only	-	1	Enquire
-	SY9Y9K729EC	MONOCOQUE ASSY LHD	SY9Y9K729EC MONOCOQUE ASSY LHD Structural Cat. A only	-	1	Enquire
-	GO8G43L243A60AC	REINF CENTRE BODY UPPER OUTER PILLAR CTR RH	GO8G43L243A60AC REINF CENTRE BODY UPPER OUTER PILLAR CTR RH Structural Cat. A only	-	1	Enquire
-	SY9Y04792GBW	IP MAIN ASSEMBLY LHD	SY9Y04792GBW IP MAIN ASSEMBLY LHD Structural Cat. A only	-	1	Enquire
-	8G43101D06GB	EXT MBR RR FLR SD LW	8G43101D06GB EXT MBR RR FLR SD LW Structural Cat. A only	-	1	Enquire
-	8G43L20414AE	REINFORCED DOOR OPENING FRONT REAR RIGHT HAND	8G43L20414AE REINFORCED DOOR OPENING FRONT REAR RIGHT HAND Structural Cat. A only	-	1	Enquire
1	SY9Y13405BE	REAR LIGHT ASSY LHS	SY9Y13405BE REAR LIGHT ASSY LHS Structural Cat. A only	-	1	Enquire
2	4G43501A0AB	NUTPALTE REAR RETACTOR UNF 7-16	4G43501A0AB NUTPALTE REAR RETACTOR UNF 7-16 Structural Cat. A only	-	1	Enquire
3	SY9Y04558AA	LTE COMPENSATOR BRKT	SY9Y04558AA LTE COMPENSATOR BRKT Structural Cat. A only	-	1	Enquire
4	SY9Y16005DC	FENDER FRONT RH	SY9Y16005DC FENDER FRONT RH Structural Cat. A only	-	1	Enquire
5	985820303	RH FRONT SPAR	985820303 RH FRONT SPAR Structural Cat. A only	-	1	Enquire
6	SY9Y3600KCW	STEERING WHEEL	SY9Y3600KCW STEERING WHEEL Structural Cat. A only	-	1	Enquire
7	TY838B179AB	CAP GRILLE LWR-D	TY838B179AB CAP GRILLE LWR-D Structural Cat. A only	-	1	Enquire
8	985874051	COMPL. STRUT TOWER CONNECTOR CROSS MEMBE	985874051 COMPL. STRUT TOWER CONNECTOR CROSS MEMBE Structural Cat. A only	-	1	Enquire
9	8G43347863AA	FRT LH NUTPLATE REAR SUB- FRAME FRONT LH	8G43347863AA FRT LH NUTPLATE REAR SUB- FRAME FRONT LH Structural Cat. A only	-	1	Enquire
10	SY9Y16005GC	FENDER FRONT RH	SY9Y16005GC FENDER FRONT RH Structural Cat. A only	-	1	Enquire
11	4G43C393126AE	NUTPLATE B POST M8	4G43C393126AE NUTPLATE B POST M8 Structural Cat. A only	-	2	Enquire
12	985887583	REAR FIREWALL	985887583 REAR FIREWALL Structural Cat. A only	-	1	Enquire
13	RY5313E797AD	CNSL ROLL SW RGT HEA	RY5313E797AD CNSL ROLL SW RGT HEA Structural Cat. A only	-	1	Enquire
14	SY9Y10278CA	FLAT WASHER 8.5X36X3	SY9Y10278CA FLAT WASHER 8.5X36X3 Structural Cat. A only	-	2	Enquire
15	8G4327925AA	PANEL REAR QUARTER INSIDE LH	8G4327925AA PANEL REAR QUARTER INSIDE LH Structural Cat. A only	-	1	Enquire
16	985915120	COMPL. LH FRONT FENDER MOUNT	985915120 COMPL. LH FRONT FENDER MOUNT Structural Cat. A only	-	1	Enquire
17	985957195	COMPL. FRONT BUMPER	985957195 COMPL. FRONT BUMPER Structural Cat. A only	-	1	Enquire
18	985980099	COMPL. LH DOOR STRUCTURE	985980099 COMPL. LH DOOR STRUCTURE Structural Cat. A only	-	1	Enquire
19	22AB500GP	ASSY GLASS TAILGATE GREEN	22AB500GP ASSY GLASS TAILGATE GREEN Structural Cat. A only	-	1	Enquire
20	SY9Y20122HC	DOOR ASSY RH	SY9Y20122HC DOOR ASSY RH Structural Cat. A only	-	1	Enquire
21	8G43101D07GB	EXT MBR RR FLR SD LW	8G43101D07GB EXT MBR RR FLR SD LW Structural Cat. A only	-	1	Enquire
22	SY9Y04792CBW	IP MAIN ASSEMBLY LHD	SY9Y04792CBW IP MAIN ASSEMBLY LHD Structural Cat. A only	-	1	Enquire
23	920033584	MCPURA CIELO WELCOME KIT	920033584 MCPURA CIELO WELCOME KIT 6.5mm Thick	-	2	Enquire
