Aston Martin GT DBS (2007-2012) - Interior Trim - Rear End Trim, Volante

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

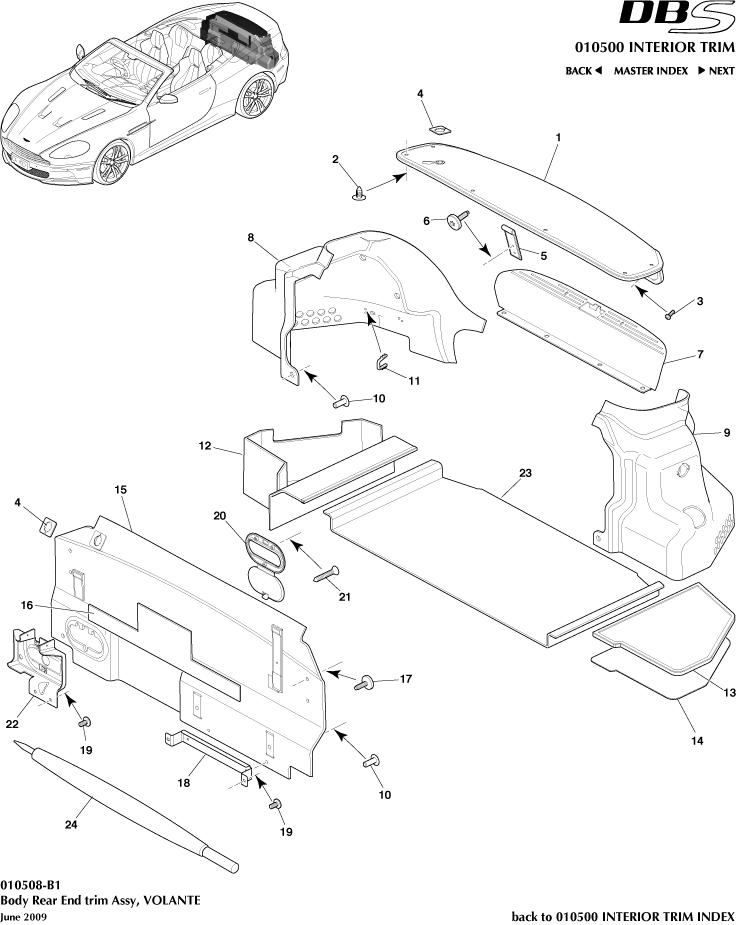

Interior Trim - Rear End Trim, Volante of Aston Martin Aston Martin GT DBS (2007-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4329001
SP TL-IP REM ADAPTOR
- 		- 1 Enquire
2 703742
Fastener, Push In, 6.5 x 6.0
- 		- 6 Enquire
3 703175
SCREW M4 x 10 PAN TORX CHROME FREE
- 		- 2 Enquire
4 4G43L40170AA
Grommet, Reinforcement
- 		- 2 Enquire
5 4G43434A30AB
Strap Assembly, Lugage comparment Door Pull
- 		- 1 Enquire
6 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
- 		- 2 Enquire
7 AD33L42626AA
REAR LOADSPACE SCUFFPLATE
- 		- 1 Enquire
8 4G43L45422AE
Carpet assy, luggage compartment side, RH
- 		- 1 Enquire
9 SY9Y20123NC
DOOR ASSY LH
- 		- 1 Enquire
10 4G433678AAAA
Fir Tree, Push On, 5mm Stud
- 		- 4 Enquire
12 4G43L454K65AA
Carpet, Loadspace Floor, RH
- 		- 1 Enquire
13 SY9Y10172AA
FRONT WING COVER-RH
- 		- 1 Enquire
14 4G43L41654AC
LHS FLOOR SUBSTRATE CONV
- 		- 1 Enquire
15 9G43L45445ACW
LOADSPACE BACKBOARD ASSY - CONV
- 		- 1 Enquire
16 SY83C41602AB
TLGT OTR RR
- 		- 1 Enquire
17 6G33FA0115AB
Screw & Washer, M6 x 20, Torx Hd
- 		- 4 Enquire
18 SY9Y042A75BCW
CNSL PNL CENTRE ASSY
- 		- 1 Enquire
19 702220
BOLT M6x12 PC TI 8
- 		- 4 Enquire
20 4G4313A752AC
LOAD COMPARTMENT SWITCH PLATE - LID
- 		- 1 Enquire
21 703726
Screw, No 8 x 25, Countersunk
- 		- 3 Enquire
22 SY7Y13069AF
FENDER CARRIER LH
- 		- 1 Enquire
23 4G4345456CC
LOADSPACE CARPET CTR - COUPE
- 		- 1 Enquire
24 7G43700712BB
AML BLK STD UMBRELLA
- 		- 1 Enquire
