Aston Martin GT DBS (2007-2012) - Console and Switches - Instrument Panel, Sat Nav, 09MY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

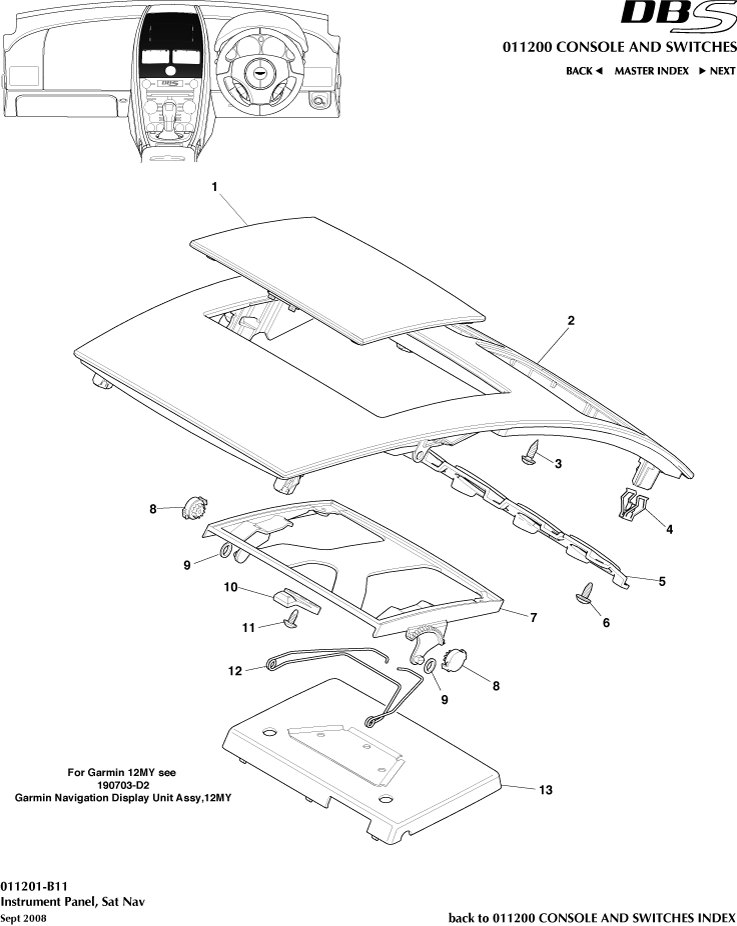

Console and Switches - Instrument Panel, Sat Nav, 09MY of Aston Martin Aston Martin GT DBS (2007-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D33047A04CA
BEZEL ASSY I/PNL CNTRL SAT AUTO
- 		- 1 Enquire
- 9G43045J10PA
NAV SURROUND - PIANO
09MY 		- 1 Enquire
- 9G43045J10NA
VNR NAV AUTO/BLACK
09MY 		- 1 Enquire
- SY9Y10342AA
BOLT M14X150 HEX FLN
Carbon Edition, DBS ultimate 		- 1 Enquire
- SY9Y20122KC
DOOR ASSY RH
Carbon Edition, DBS ultimate 		- 1 Enquire
- CG33045J10AA
VNR NAV AUTO BLK
Dragon 88 		- 1 Enquire
- 4G4380899AA
SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)
09MY 		- 12 Enquire
- SY9Y10204AA
UPP MARGIN SUPPORT R
09MY 		- 1 Enquire
1 8D33045G37AA
DOOR CONSOLE NAV
- 		- 1 Enquire
2 8D33047A04DA
BEZEL ASSY I/PNL CNTRL SAT MAN
- 		- 1 Enquire
3 00RB218
Clip - Finisher - Rear Quarter Glass
- 		- 6 Enquire
4 702520
CLIP 8.5x16x1.7 TRIM
- 		- 4 Enquire
5 6G3314A462AA
RET CONTROL SWITCH
- 		- 1 Enquire
6 6G33104101AB
M4 THRD FORM SCREW
- 		- 12 Enquire
7 6G3318C917AB
BRACKET - NAVIGATION MOUNTING
- 		- 1 Enquire
8 6G3338392AA
SPINDLE DAMPER
- 		- 2 Enquire
9 6G338979AA
WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK
- 		- 2 Enquire
10 6G3314163AB
LOCATOR
- 		- 2 Enquire
11 6G33104101AB
M4 THRD FORM SCREW
- 		- 1 Enquire
12 6G3319363AE
SPRING TORSION 100 x 75 x 1.8
- 		- 1 Enquire
13 6G3310E901AC
NAVIGATION DISPLAY TOP COVER
- 		- 1 Enquire
