Body Structure - Underbody of Aston Martin Aston Martin GT DBS (2007-2012)

View All

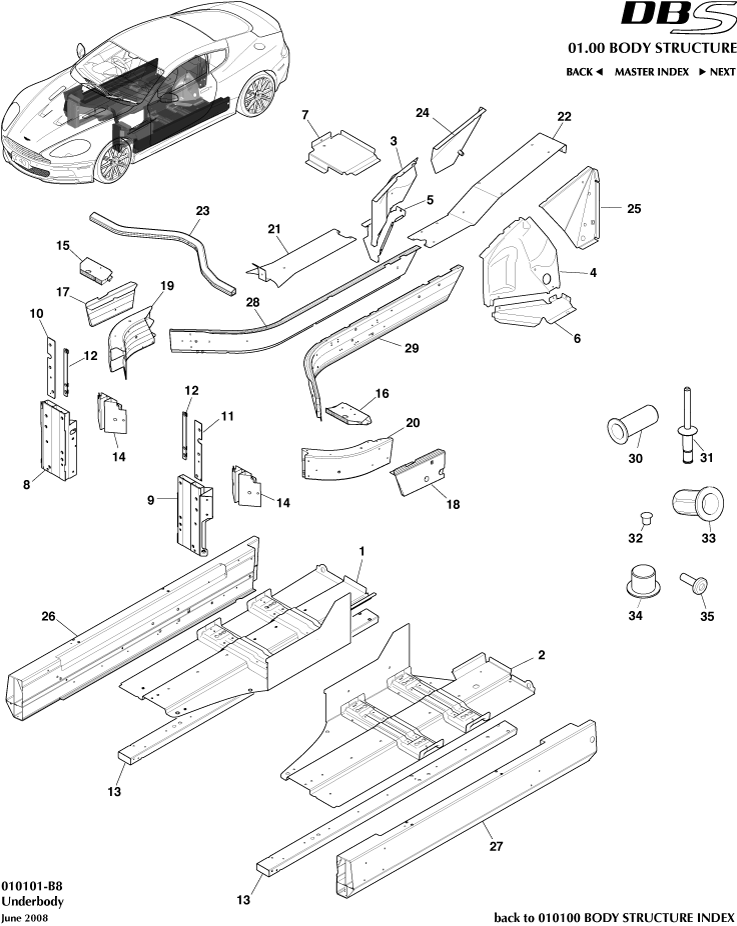

Aston Martin GT DBS (2007-2012) - Body Structure - Underbody

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AA403GP	GAS STRUT BONNET	22AA403GP GAS STRUT BONNET COUPE. From 11MY,Structural Cat. A only	-	1	Enquire
-	985818169	COMPL. BUMPER SHELF CROSS MEMBER	985818169 COMPL. BUMPER SHELF CROSS MEMBER VOLANTE. Up to 11MY,Structural Cat. A only	-	1	Enquire
-	22AA421GP	ASSY DOOR RH	22AA421GP ASSY DOOR RH VOLANTE. From 11MY,Structural Cat. A only	-	1	Enquire
-	BG43C1899AA	Assembly Sill Out LH	BG43C1899AA Assembly Sill Out LH COUPE. From 11MY,Structural Cat. A only	-	1	Enquire
-	985820297	COMPL. RH FRONT CRASH BOX UPRIGHT	985820297 COMPL. RH FRONT CRASH BOX UPRIGHT VOLANTE. Up to 11MY,Structural Cat. A only	-	1	Enquire
-	BG43L1899AA	ASSEMBLY SILL OUTER LH	BG43L1899AA ASSEMBLY SILL OUTER LH VOLANTE. From 11MY,Structural Cat. A only	-	1	Enquire
1	4G431610879	FLOOR SUB ASY-RH DB9	4G431610879 FLOOR SUB ASY-RH DB9 VIN stamp required,Structural Cat. A only	-	1	Enquire
2	4G431610880	PANEL FLOOR LH	4G431610880 PANEL FLOOR LH Structural Cat. A only	-	1	Enquire
3	8G4313058AB	TUNNEL REAR SIDE RH	8G4313058AB TUNNEL REAR SIDE RH Structural Cat. A only	-	1	Enquire
4	9G4313059AB	TUNNEL REAR SIDE LH	9G4313059AB TUNNEL REAR SIDE LH Structural Cat. A only	-	1	Enquire
5	8G4367340AA	PANEL REAR SEAT HEEL BOARD LOWER RH	8G4367340AA PANEL REAR SEAT HEEL BOARD LOWER RH Structural Cat. A only	-	1	Enquire
6	8G4367341GA	PANEL REAR SEAT HEEL BOARD LOWER LH	8G4367341GA PANEL REAR SEAT HEEL BOARD LOWER LH Structural Cat. A only	-	1	Enquire
7	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	8G4367342AA SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH Structural Cat. A only	-	1	Enquire
8	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	4G432010876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9 Structural Cat. A only	-	1	Enquire
9	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	4G432010877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9 Structural Cat. A only	-	1	Enquire
10	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12 Structural Cat. A only	-	1	Enquire
11	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12 Structural Cat. A only	-	1	Enquire
12	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	8G43390725AA NUT PLATE FRONT END MOUNTING INR M12 Structural Cat. A only	-	2	Enquire
13	8G4310120GB	MBR FLR SD FRT	8G4310120GB MBR FLR SD FRT Structural Cat. A only	-	2	Enquire
14	SY9YC405A03AC	ENGN CVR SD ACS LH G	SY9YC405A03AC ENGN CVR SD ACS LH G Structural Cat. A only	-	2	Enquire
15	SY9YC27847EC	PNL BDYSD LH FED GC	SY9YC27847EC PNL BDYSD LH FED GC Structural Cat. A only	-	1	Enquire
16	6G3310095AC	REINF MEMBER FRONT SIDE LH	6G3310095AC REINF MEMBER FRONT SIDE LH Structural Cat. A only	-	1	Enquire
17	SY9Y23942VBW	DOOR ASSY TRIM RH	SY9Y23942VBW DOOR ASSY TRIM RH Structural Cat. A only	-	1	Enquire
18	SY9Y18N348DC	AC LINES BRKT	SY9Y18N348DC AC LINES BRKT Structural Cat. A only	-	1	Enquire
19	6G3310276AF	MEMBER FRONT SIDE RH	6G3310276AF MEMBER FRONT SIDE RH Structural Cat. A only	-	1	Enquire
20	SY9Y10280AA	M8 X 33 T40 BOLT	SY9Y10280AA M8 X 33 T40 BOLT Structural Cat. A only	-	1	Enquire
21	SY9Y10134FA	M06X1.0X16 PAN INT B	SY9Y10134FA M06X1.0X16 PAN INT B Structural Cat. A only	-	1	Enquire
22	RY6314B278AA	CLN FD BAR CBL	RY6314B278AA CLN FD BAR CBL Structural Cat. A only	-	1	Enquire
23	SY9Y23924BC	DR APPLIQUE RH - GC	SY9Y23924BC DR APPLIQUE RH - GC Structural Cat. A only	-	1	Enquire
24	SY9Y16005HC	FENDER FRONT RH	SY9Y16005HC FENDER FRONT RH Structural Cat. A only	-	1	Enquire
25	SY9Y015A23BC	NVH INT FRT B/HEAD R	SY9Y015A23BC NVH INT FRT B/HEAD R Structural Cat. A only	-	1	Enquire
26	AG43C1898AA	ASSEMBLY SILL OUTER RH	AG43C1898AA ASSEMBLY SILL OUTER RH COUPE. Up to 11MY,Structural Cat. A only	-	1	Enquire
27	AG43C1899AA	ASSY SILL OTR LH	AG43C1899AA ASSY SILL OTR LH COUPE. Up to 11MY,Structural Cat. A only	-	1	Enquire
28	9G3310772AC	TUNNEL EXTRUSION RIGHT HAND	9G3310772AC TUNNEL EXTRUSION RIGHT HAND Structural Cat. A only	-	1	Enquire
29	9G3310773AC	TUNNEL EXTRUSION LEFT HAND	9G3310773AC TUNNEL EXTRUSION LEFT HAND Structural Cat. A only	-	1	Enquire
30	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni Structural Cat. A only	-	1	Enquire
31	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind Structural Cat. A only	-	A/R	Enquire
32	6G3368885AB	SELF PIERCING RIVET 5.0 x 6.0mm	6G3368885AB SELF PIERCING RIVET 5.0 x 6.0mm Structural Cat. A only	-	A/R	Enquire
33	6G3333800AA	Rivnut, 7/16UNF hex flange	6G3333800AA Rivnut, 7/16UNF hex flange Structural Cat. A only	-	4	Enquire
34	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	4G43N800631AA Rubber Plug, 11mm, Black Thermoplastic Structural Cat. A only	-	2	Enquire
35	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 Structural Cat. A only	-	6	Enquire
