Interior Trim - Rear Enviroment Trim

Aston Martin GT DBS (2007-2012)

Find Your Part

Aston Martin GT DBS (2007-2012) - Interior Trim - Rear Enviroment Trim

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

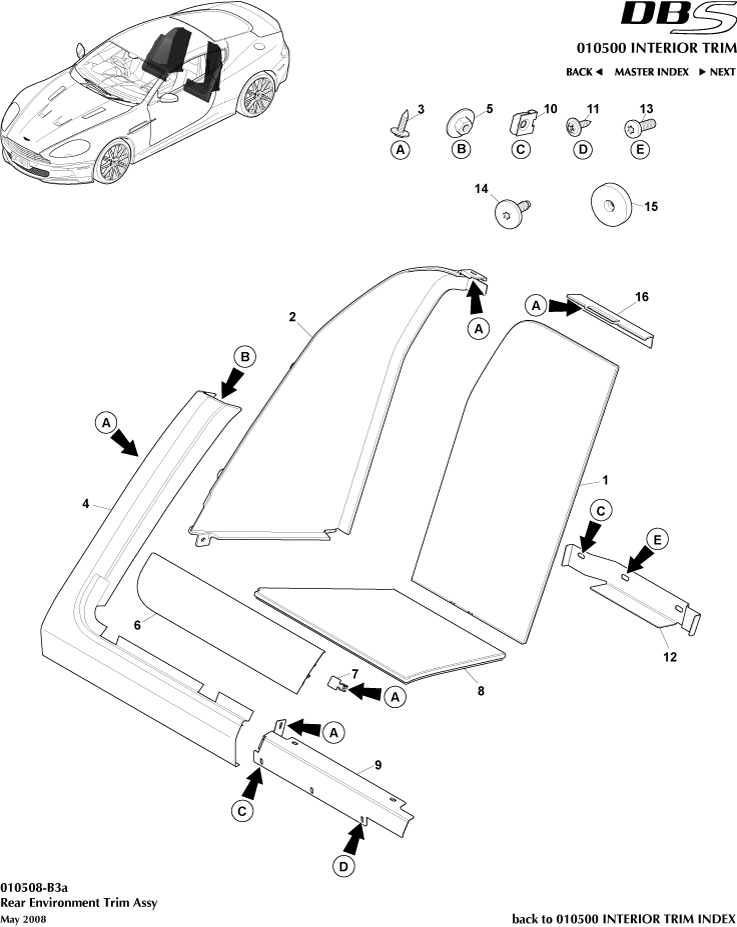

Interior Trim - Rear Enviroment Trim of Aston Martin Aston Martin GT DBS (2007-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D3360029ABW
PNL ASY CVR RR BLK HD LH
- 		- 1 Enquire
- SY9Y10516AB
SPACER JUMP START
- 		- 1 Enquire
- 8D3360027ADW
PANEL ASSY BLK HD OTR LH
- 		- 1 Enquire
- 8D33313A73AB
Bracket, Cabin Finisher, Outboard, LH
- 		- 1 Enquire
- 8D33313A74AB
Bracket, Cabin Finisher, RH
- 		- 1 Enquire
- 8D33313A75AB
Bracket, Cabin Finisher, LH
- 		- 1 Enquire
- 8D3311767AAW
PNL ASY STWG CMPT LWR LH
- 		- 1 Enquire
- 8D33310A85AB
BRKT BLK HD SD LH
- 		- 1 Enquire
- SY9Y17527AA
WIPER ARM ASY LHS RH
- 		- 1 Enquire
1 SY9Y10655AB
12V SERVICE BATTERY
- 		- 1 Enquire
2 SY9Y18N348HA
BRACKET-M-AC-SF8-SR8
- 		- 1 Enquire
3 701157
SCREW&WSHR 4.2x16
- 		- 28 Enquire
4 8D3360026ADW
PANEL ASSY BLK HD OTR RH
- 		- 1 Enquire
5 701194
NUT&WASHER M6 HEXFLG
- 		- 2 Enquire
7 8D33313A72AB
Bracket, Cabin Finisher, Outboard, RH
- 		- 1 Enquire
10 701448
Spring Nut, U Type, 4.2 x 2.1
- 		- 14 Enquire
11 701441
SCREW M4.2x13 FLGBLK
- 		- 5 Enquire
12 8D33310A84AB
Bracket, Bulk Head Side, RH
- 		- 1 Enquire
13 702637
SCREW M6X20 SKT HD
- 		- 2 Enquire
14 6G33FA0115AB
Screw & Washer, M6 x 20, Torx Hd
- 		- 2 Enquire
15 4G43C045F70AB
RETAINER PASSENGER AIRBAG COVER PAD
- 		- 10 Enquire
16 SY9Y10173AA
FRONT WING COVER-LH
- 		- 1 Enquire
