Dynamic Weatherstrips (Volante) of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Dynamic Weatherstrips (Volante)

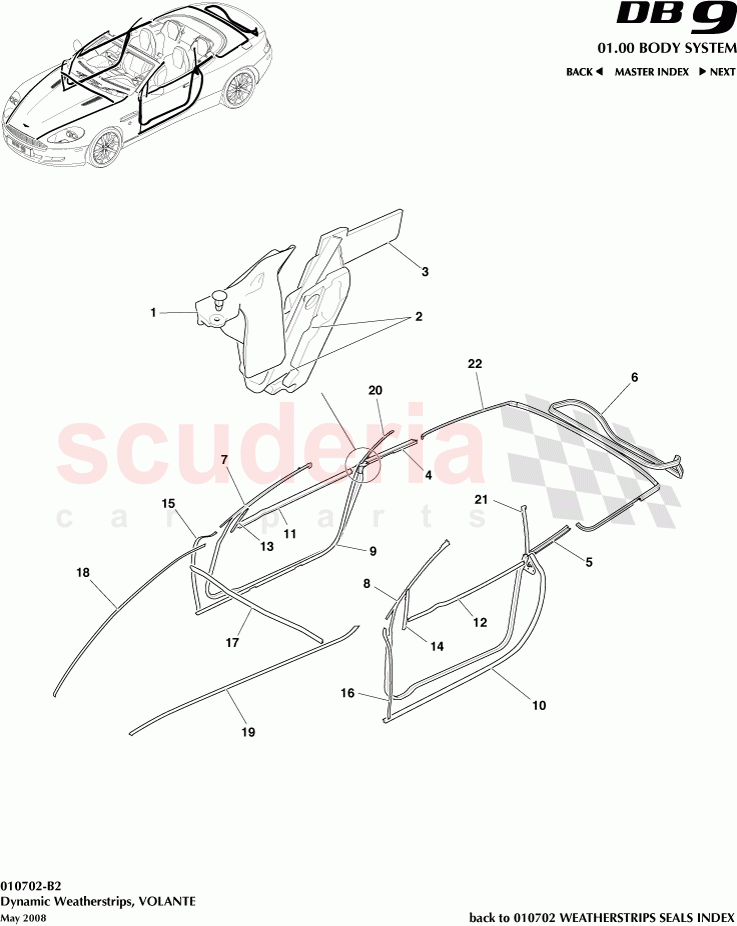

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G43F20920AC	Moulding Assembly, Front Door Trim Rear, RH	Enquire	To Order
	4G43F20921AC	Moulding Assembly, Front Door Trim Rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702213	Pin, Push-in	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L30254AA	Weatherstrip Assy, Quarter Window Upper, RH	Enquire	To Order
	4G43L30255AA	Weatherstrip Assy, Quarter Window Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L29730AD	Weather Strip, Quarter Window Inner, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L29731AD	Weatherstrip, Quarter Window Inner, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L43720AE	Weatherstrip, Boot Lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F20708BH	Seal, Door Primary, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F20709BH	Seal, Door Primary, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L25324AA	MARGIN SEAL ASSEMBLY FRONT DOOR LWR RR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L25325AA	MARGIN SEAL ASSEMBLY FRONT DOOR LWR RR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F20570AE	Seal, Door Waist Inner, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F20571AE	Seal, Door Waist Inner, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F21510AD	WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL RH	Enquire	To Order
	4G43F21510BA	WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F21511AD	WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL LH	Enquire	To Order
	4G43F21511BA	WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F20556AF	Seal Margin Front Door RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F20557AF	Seal, Margin, Front Door, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316K816AC	WEATHERSTRIP EXTRUSION HOOD REAR	Enquire	To Order
	4G4316K816AC	WEATHERSTRIP EXTRUSION HOOD REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316A014AF	Weatherstrip, Bonnet RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316A015AF	Weatherstrip, Bonnet LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

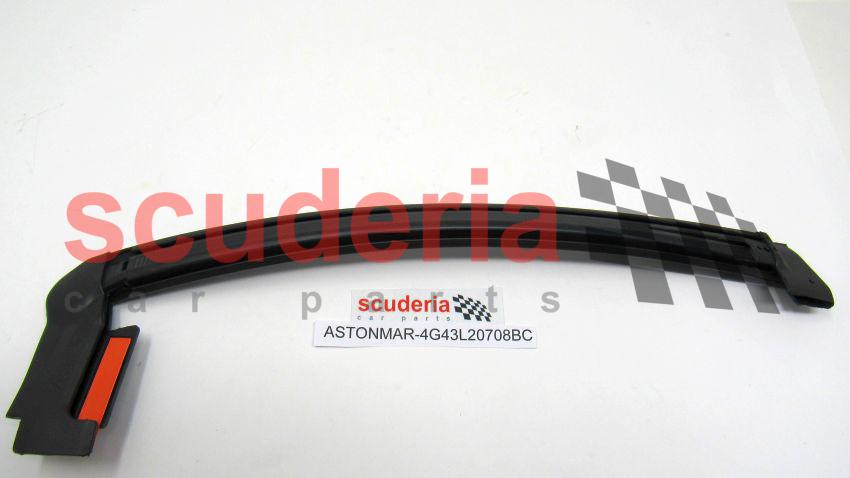

	4G43L20708BC	Weatherstrip Assy, B Post, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L20709BC	Weatherstrip Assy, B Post, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43L51452AD	W/STRIP ASY TON/BODY	Enquire	To Order
	9G43L51452AD	W/STRIP ASY TON/BODY	Enquire	To Order
	4G43L25324BA	Clip, Weather Strip Retention	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G43F20920AC	Moulding Assembly, Front Door Trim Rear, RH	4G43F20920AC Moulding Assembly, Front Door Trim Rear, RH	-	1	Enquire
1	4G43F20921AC	Moulding Assembly, Front Door Trim Rear, LH	4G43F20921AC Moulding Assembly, Front Door Trim Rear, LH	-	1	Enquire
2	702213	Pin, Push-in	702213 Pin, Push-in	-	2	Enquire
3	4G43L30254AA	Weatherstrip Assy, Quarter Window Upper, RH	4G43L30254AA Weatherstrip Assy, Quarter Window Upper, RH	-	1	Enquire
3	4G43L30255AA	Weatherstrip Assy, Quarter Window Upper, LH	4G43L30255AA Weatherstrip Assy, Quarter Window Upper, LH	-	1	Enquire
4	4G43L29730AD	Weather Strip, Quarter Window Inner, RH	4G43L29730AD Weather Strip, Quarter Window Inner, RH	-	1	Enquire
5	4G43L29731AD	Weatherstrip, Quarter Window Inner, LH	4G43L29731AD Weatherstrip, Quarter Window Inner, LH	-	1	Enquire
6	4G43L43720AE	Weatherstrip, Boot Lid	4G43L43720AE Weatherstrip, Boot Lid	-	1	Enquire
7	4G43F20708BH	Seal, Door Primary, RH	4G43F20708BH Seal, Door Primary, RH	-	1	Enquire
8	4G43F20709BH	Seal, Door Primary, LH	4G43F20709BH Seal, Door Primary, LH	-	1	Enquire
9	4G43L25324AA	MARGIN SEAL ASSEMBLY FRONT DOOR LWR RR RH	4G43L25324AA MARGIN SEAL ASSEMBLY FRONT DOOR LWR RR RH	-	1	Enquire
10	4G43L25325AA	MARGIN SEAL ASSEMBLY FRONT DOOR LWR RR LH	4G43L25325AA MARGIN SEAL ASSEMBLY FRONT DOOR LWR RR LH	-	1	Enquire
11	4G43F20570AE	Seal, Door Waist Inner, RH	4G43F20570AE Seal, Door Waist Inner, RH	-	1	Enquire
12	4G43F20571AE	Seal, Door Waist Inner, LH	4G43F20571AE Seal, Door Waist Inner, LH	-	1	Enquire
13	4G43F21510AD	WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL RH	4G43F21510AD WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL RH Up to (V) B05151	-	1	Enquire
13	4G43F21510BA	WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL RH	4G43F21510BA WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL RH From (V) B05152	-	1	Enquire
14	4G43F21511AD	WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL LH	4G43F21511AD WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL LH Up to (V) B05151	-	1	Enquire
14	4G43F21511BA	WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL LH	4G43F21511BA WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL LH From (V) B05152	-	1	Enquire
15	4G43F20556AF	Seal Margin Front Door RH	4G43F20556AF Seal Margin Front Door RH	-	1	Enquire
16	4G43F20557AF	Seal, Margin, Front Door, LH	4G43F20557AF Seal, Margin, Front Door, LH	-	1	Enquire
17	4G4316K816AC	WEATHERSTRIP EXTRUSION HOOD REAR	4G4316K816AC WEATHERSTRIP EXTRUSION HOOD REAR 07MY	-	1	Enquire
17	4G4316K816AC	WEATHERSTRIP EXTRUSION HOOD REAR	4G4316K816AC WEATHERSTRIP EXTRUSION HOOD REAR 08MY	-	1	Enquire
18	4G4316A014AF	Weatherstrip, Bonnet RH	4G4316A014AF Weatherstrip, Bonnet RH	-	1	Enquire
19	4G4316A015AF	Weatherstrip, Bonnet LH	4G4316A015AF Weatherstrip, Bonnet LH	-	1	Enquire
20	4G43L20708BC	Weatherstrip Assy, B Post, RH	4G43L20708BC Weatherstrip Assy, B Post, RH	-	1	Enquire
21	4G43L20709BC	Weatherstrip Assy, B Post, LH	4G43L20709BC Weatherstrip Assy, B Post, LH	-	1	Enquire
22	9G43L51452AD	W/STRIP ASY TON/BODY	9G43L51452AD W/STRIP ASY TON/BODY 9.5MY onward	-	1	Enquire
22	9G43L51452AD	W/STRIP ASY TON/BODY	9G43L51452AD W/STRIP ASY TON/BODY	-	1	Enquire
22	4G43L25324BA	Clip, Weather Strip Retention	4G43L25324BA Clip, Weather Strip Retention	-	2	Enquire
22	4G4320126AA	FELT-DR UPPER WINDOW SEAL	4G4320126AA FELT-DR UPPER WINDOW SEAL	-	2	Enquire
22	6G33C47775AA	FOAM PAD - DIVISION BAR/DR OTR WAIST SEAL	6G33C47775AA FOAM PAD - DIVISION BAR/DR OTR WAIST SEAL	-	2	Enquire
