Body Side Quarter Trim and Ornamentation (Coupe) of Aston Martin Aston Martin DB9 (2004-2012)

View All

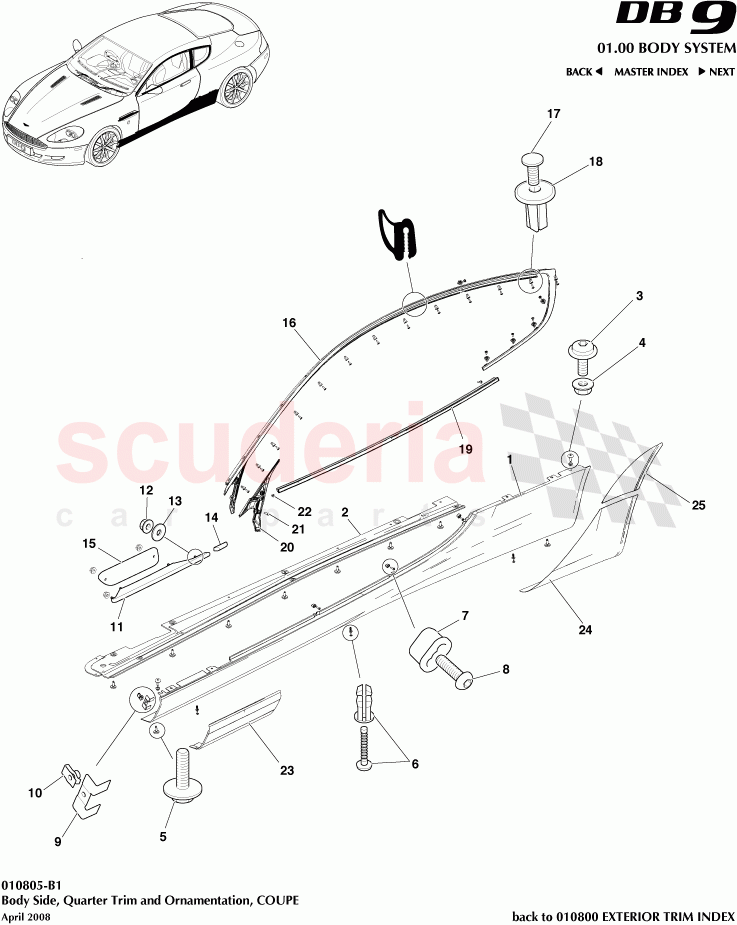

Aston Martin DB9 (2004-2012) - Body Side Quarter Trim and Ornamentation (Coupe)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G4310608AB	SILL APPLIQUE MLDG RH	Enquire	To Order
	6G4310609AB	SILL APPLIQUE MLDG LH	Enquire	To Order
	AG4310608AB	Sill applique assy, RH	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G4310609AB	SILL APPLIQUE MLDG LH	Enquire	To Order
	6G4310608AB	SILL APPLIQUE MLDG RH	Enquire	To Order
	8G4310140AB	FILLER BODY ROCKER PNL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701567	Screw, M6 x 16	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701582	RIVET PUSH-IN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4348954AA	SILL ANTI STRIP LOCKNUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	707613	SCREW M4.2 X 13 FLANGE BLACK	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8G4316586AA	Bracket Front Wheel Shield Right Hand Side	Enquire	To Order
	8G4316587AA	BRKT FRT WHL SHLD-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43280B63AH	Side Strake Fender LH	Enquire	To Order
	4G43280B62AH	SIDE STRAKE FENDER RH	Enquire	To Order
	4G43280B63AH	Side Strake Fender LH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	IN STOCK
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4316C694ABPK	Washer Nylon M6 (Pack of 10)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43018K28AG	SIDE STRAKE DOOR RH	Enquire	To Order
	4G43018K29AG	SIDE STRAKE DOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43280B84BA	MESH SIDE STRAKE LH SPECIAL EDITION MAGNUM SILVER	Enquire	To Order
	BG43280B83BA	MESH SIDE STRAKE RH SPECIAL EDITION MAGNUM SILVER	Enquire	To Order
	4G43280B84BA	MESH SIDE STRAKE LH SPECIAL EDITION	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G43519A36CF	ROOF FINISHER SIDE	Enquire	To Order
	4G43519A37CF	ROOF FINISHER SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707135	SCREW 4.2 X 13 SELF TAPPING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701656	RETAINER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43F20563BA	Weatherstrip, Front Door Outer, LH	Enquire	To Order
	4G43F20562BA	Weatherstrip, Front Door Outer, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	Enquire	To Order
	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702217	Screw, M5 x 2.5 x 20, Internal Hex Dome Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G439110346	PAINT PROTECTION KIT -DB9	Enquire	To Order
	707135	SCREW 4.2 X 13 SELF TAPPING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8G4310627AB	SILL FRT TAPE LH	Enquire	To Order
	8G4310626AB	SILL FRT TAPE RH	Enquire	To Order
	4G4310627AA	SILL FRONT TAPE LH 350X175MM	Enquire	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4310628AB	FRT BMPR LWR TAPE	Enquire	To Order
	4G4310625AB	SILL REAR TAPE LH	Enquire	To Order
	4G4310624AB	SILL REAR TAPE RH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D3310631AB	Tape, Rear quarter, LH	Enquire	IN STOCK
	8D3310630AB	Tape, Rear quarter, RH	Enquire	IN STOCK
	4G439110347	INSTRUCTION	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G4310608AB	SILL APPLIQUE MLDG RH	6G4310608AB SILL APPLIQUE MLDG RH -From Vin 10804 (item 1 not req'd)	-	1	Enquire
1	6G4310609AB	SILL APPLIQUE MLDG LH	6G4310609AB SILL APPLIQUE MLDG LH -From Vin 10804(item 1 not req'd)	-	1	Enquire
1	AG4310608AB	Sill applique assy, RH	AG4310608AB Sill applique assy, RH -11MY	-	1	Enquire
1	AG4310609AB	Sill applique assy, LH	AG4310609AB Sill applique assy, LH -11MY	-	1	Enquire
1	6G4310608AB	SILL APPLIQUE MLDG RH	6G4310608AB SILL APPLIQUE MLDG RH	-	1	Enquire
1	6G4310609AB	SILL APPLIQUE MLDG LH	6G4310609AB SILL APPLIQUE MLDG LH	-	1	Enquire
1	8G4350897BA	SPACER MOULDING SILL APPLIQUE	8G4350897BA SPACER MOULDING SILL APPLIQUE	-	2	Enquire
2	6G4310609AB	SILL APPLIQUE MLDG LH	6G4310609AB SILL APPLIQUE MLDG LH Up to 08MY (use with item 1)	-	1	Enquire
2	6G4310608AB	SILL APPLIQUE MLDG RH	6G4310608AB SILL APPLIQUE MLDG RH Up to 08MY (use with item 1)	-	1	Enquire
2	8G4310140AB	FILLER BODY ROCKER PNL RH	8G4310140AB FILLER BODY ROCKER PNL RH 09MY	-	1	Enquire
3	703156	Screw/Washer M6x18 Chrome Free IN STOCK	703156 Screw/Washer M6x18 Chrome Free IN STOCK	-	4	Enquire
4	702944	Nut, M6, Hex Flanged Head IN STOCK	702944 Nut, M6, Hex Flanged Head IN STOCK	-	4	Enquire
5	701567	Screw, M6 x 16 IN STOCK	701567 Screw, M6 x 16 IN STOCK	-	14	Enquire
6	701582	RIVET PUSH-IN	701582 RIVET PUSH-IN	-	6	Enquire
7	4G4348954AA	SILL ANTI STRIP LOCKNUT IN STOCK	4G4348954AA SILL ANTI STRIP LOCKNUT IN STOCK	-	9	Enquire
8	707613	SCREW M4.2 X 13 FLANGE BLACK IN STOCK	707613 SCREW M4.2 X 13 FLANGE BLACK IN STOCK	-	9	Enquire
9	8G4316586AA	Bracket Front Wheel Shield Right Hand Side	8G4316586AA Bracket Front Wheel Shield Right Hand Side	-	1	Enquire
9	8G4316587AA	BRKT FRT WHL SHLD-LH	8G4316587AA BRKT FRT WHL SHLD-LH	-	1	Enquire
10	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG IN STOCK	703740 NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG IN STOCK	-	6	Enquire
11	4G43280B63AH	Side Strake Fender LH	4G43280B63AH Side Strake Fender LH -11MY	-	1	Enquire
11	4G43280B62AH	SIDE STRAKE FENDER RH	4G43280B62AH SIDE STRAKE FENDER RH 11MY	-	1	Enquire
11	4G43280B63AH	Side Strake Fender LH	4G43280B63AH Side Strake Fender LH	-	1	Enquire
11	4G43280B62AH	SIDE STRAKE FENDER RH	4G43280B62AH SIDE STRAKE FENDER RH	-	1	Enquire
12	703163	Nut, M6, Hex Flange Head, Locking IN STOCK	703163 Nut, M6, Hex Flange Head, Locking 07MY IN STOCK	-	4	Enquire
12	703163	Nut, M6, Hex Flange Head, Locking IN STOCK	703163 Nut, M6, Hex Flange Head, Locking 08MY IN STOCK	-	4	Enquire
13	4G4316C694ABPK	Washer Nylon M6 (Pack of 10) IN STOCK	4G4316C694ABPK Washer Nylon M6 (Pack of 10) IN STOCK	-	1	Enquire
14	4G43018K28AG	SIDE STRAKE DOOR RH	4G43018K28AG SIDE STRAKE DOOR RH	-	1	Enquire
14	4G43018K29AG	SIDE STRAKE DOOR LH	4G43018K29AG SIDE STRAKE DOOR LH	-	1	Enquire
15	BG43280B84BA	MESH SIDE STRAKE LH SPECIAL EDITION MAGNUM SILVER	BG43280B84BA MESH SIDE STRAKE LH SPECIAL EDITION MAGNUM SILVER -11MY, Magnum Silver	-	1	Enquire
15	BG43280B83BA	MESH SIDE STRAKE RH SPECIAL EDITION MAGNUM SILVER	BG43280B83BA MESH SIDE STRAKE RH SPECIAL EDITION MAGNUM SILVER -11MY, Magnum Silver	-	1	Enquire
15	4G43280B84BA	MESH SIDE STRAKE LH SPECIAL EDITION	4G43280B84BA MESH SIDE STRAKE LH SPECIAL EDITION Magnum Silver	-	1	Enquire
15	4G43280B83BA	MESH SIDE STRAKE RH SPECIAL EDITION	4G43280B83BA MESH SIDE STRAKE RH SPECIAL EDITION Magnum Silver	-	1	Enquire
15	BG43280B84AA	MESH SIDE STRAKE LH PLATINUM	BG43280B84AA MESH SIDE STRAKE LH PLATINUM -11MY	-	1	Enquire
15	BG43280B83AA	MESH SIDE STRAKE RH PLATINUM	BG43280B83AA MESH SIDE STRAKE RH PLATINUM -11MY	-	1	Enquire
15	4G437811462	MESH KIT-SD STRAKE-2	4G437811462 MESH KIT-SD STRAKE-2	-	1	Enquire
16	4G43519A36CF	ROOF FINISHER SIDE	4G43519A36CF ROOF FINISHER SIDE	-	1	Enquire
16	4G43519A37CF	ROOF FINISHER SIDE	4G43519A37CF ROOF FINISHER SIDE	-	1	Enquire
17	707135	SCREW 4.2 X 13 SELF TAPPING IN STOCK	707135 SCREW 4.2 X 13 SELF TAPPING IN STOCK	-	36	Enquire
18	701656	RETAINER IN STOCK	701656 RETAINER IN STOCK	-	38	Enquire
19	4G43F20563BA	Weatherstrip, Front Door Outer, LH	4G43F20563BA Weatherstrip, Front Door Outer, LH	-	1	Enquire
19	4G43F20562BA	Weatherstrip, Front Door Outer, RH	4G43F20562BA Weatherstrip, Front Door Outer, RH	-	1	Enquire
20	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	4G43C02565BD Retainer Assy, Front Body W/Strip Cover Primary, LH	-	1	Enquire
20	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH IN STOCK	4G43C02564BD Retainer Assy, Front Body W/Strip Cover Primary, RH IN STOCK	-	1	Enquire
21	702217	Screw, M5 x 2.5 x 20, Internal Hex Dome Head IN STOCK	702217 Screw, M5 x 2.5 x 20, Internal Hex Dome Head IN STOCK	-	2	Enquire
22	4G439110346	PAINT PROTECTION KIT -DB9	4G439110346 PAINT PROTECTION KIT -DB9 Includes all items listed below	-	1	Enquire
22	707135	SCREW 4.2 X 13 SELF TAPPING IN STOCK	707135 SCREW 4.2 X 13 SELF TAPPING IN STOCK	-	2	Enquire
23	8G4310627AB	SILL FRT TAPE LH	8G4310627AB SILL FRT TAPE LH -09MY	-	1	Enquire
23	8G4310626AB	SILL FRT TAPE RH	8G4310626AB SILL FRT TAPE RH -09MY	-	1	Enquire
23	4G4310627AA	SILL FRONT TAPE LH 350X175MM IN STOCK	4G4310627AA SILL FRONT TAPE LH 350X175MM IN STOCK	-	1	Enquire
23	4G4310626AA	SILL FRONT TAPE RH IN STOCK	4G4310626AA SILL FRONT TAPE RH IN STOCK	-	1	Enquire
24	4G4310628AB	FRT BMPR LWR TAPE	4G4310628AB FRT BMPR LWR TAPE see 011901-B1	-	1	Enquire
24	4G4310625AB	SILL REAR TAPE LH	4G4310625AB SILL REAR TAPE LH	-	1	Enquire
24	4G4310624AB	SILL REAR TAPE RH IN STOCK	4G4310624AB SILL REAR TAPE RH IN STOCK	-	1	Enquire
25	8D3310631AB	Tape, Rear quarter, LH IN STOCK	8D3310631AB Tape, Rear quarter, LH IN STOCK	-	1	Enquire
25	8D3310630AB	Tape, Rear quarter, RH IN STOCK	8D3310630AB Tape, Rear quarter, RH IN STOCK	-	1	Enquire
25	4G439110347	INSTRUCTION IN STOCK	4G439110347 INSTRUCTION IN STOCK	-	-	Enquire
