Body Sound Insulation (Coupe) of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Body Sound Insulation (Coupe)

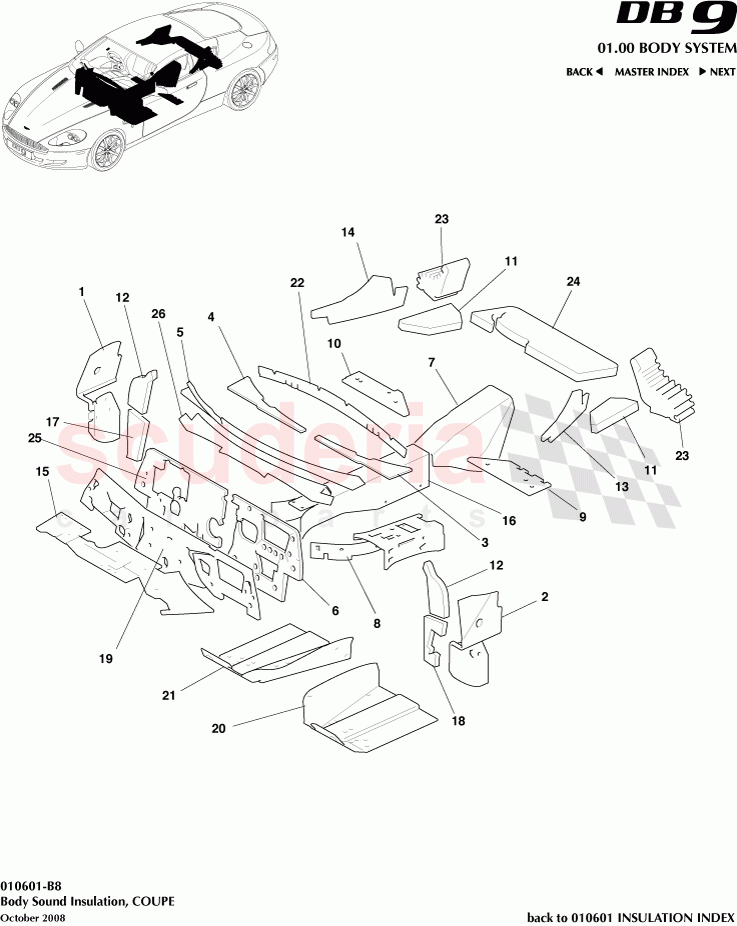

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G43310A58AC	A-PILLAR LOWER NVH RH	Enquire	To Order
	8G43310A58AB	Insulation, Body Side Front, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43310A57AC	A-PILLAR LOWER NVH LH	Enquire	To Order
	8G43310A57AC	Insulation, Body Side Front, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43B1070AB	UNDER PLENUM NVH STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43015A22AC	Insulation, panel, body front, LH, RHD	Enquire	To Order
	8G43015A23AA	BAFFLE BODY FRONT PANEL LHD LH	Enquire	To Order
	8G43015A22AB	BAFFLE BODY FRONT PANEL RHD LH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G437Z309AC	Insulation, Transmission Case Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4311446AE	Insulation, floor, pan, gearshift cover	Enquire	To Order
	8G4311446AB	Insulation, Sound, Floor Pan Gear Shift Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4311205AC	REAR FLOOR PAN NVH LH	Enquire	To Order
	8G4311205AA	Insulation, Sound, Rear Floor Pan, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4311204AA	Insulation, Sound, Rear Floor Pan, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F310A26AA	Insulation, Sound, Quarter I/S Panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4328112AB	NVH FOAM PAD ASY FNDR RH UPR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4327747AB	INS RR QTR SND LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4327746AB	INS RR QTR SND RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4300152BG	RHD UNDER WIPER MOTOR NVH	Enquire	To Order
	4G4300152AG	LHD UNDER WIPER MOTOR NVH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43114B26AH	Insulation, Tunnel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4328110AB	NVH FOAM PAD ASY FNDR RH LWR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4328111AB	NVH FOAM PAD ASY FNDR LH LWR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33102B00BE	INS ENG HSG SND RHD	Enquire	To Order
	6G33102B00AE	INS ENG HSG SND LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4354572AE	Baffle, Floor, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4354571AF	Baffle, Floor, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302139AB	BAFFLE COWL TOP IN END	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C27746AC	Insulation, Rear Quarter Sound I/S Panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C56157AB	PACKAGE TRAY ABSORBER	Enquire	To Order
	8G43C56157AD	Sheet Damping SPT, Rear Parcel Shelf	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43002K06AD	Insulation, panel, body front, RH, RHD	Enquire	To Order
	4G43002K05AD	Insulation, panel, body front, RH, LHD	Enquire	To Order
	8G43002K06AA	Insulation, panel, body front, RH, RHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8G435416AF	NVH TNL RR INR	Enquire	To Order
	6G3368066AC	NVH DASH FOAM UNDER SIDE CAVITY ASSY	Enquire	To Order
	8G3324926AB	PAD TUNNEL SIDE RIGHT HAND	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G43310A58AC	A-PILLAR LOWER NVH RH	4G43310A58AC A-PILLAR LOWER NVH RH 07MY	-	1	Enquire
1	8G43310A58AB	Insulation, Body Side Front, RH	8G43310A58AB Insulation, Body Side Front, RH 08MY	-	1	Enquire
2	4G43310A57AC	A-PILLAR LOWER NVH LH	4G43310A57AC A-PILLAR LOWER NVH LH 07MY	-	1	Enquire
2	8G43310A57AC	Insulation, Body Side Front, LH	8G43310A57AC Insulation, Body Side Front, LH 08MY	-	1	Enquire
3	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	4G4302293AB Insulation, Sound, Cowl Side Panel Lower, LH	-	1	Enquire
4	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	4G4302292AB Insulation, Sound, Cowl Side Panel Lower, RH	-	1	Enquire
5	4G43B1070AB	UNDER PLENUM NVH STRIP	4G43B1070AB UNDER PLENUM NVH STRIP 07MY	-	1	Enquire
6	4G43015A22AC	Insulation, panel, body front, LH, RHD	4G43015A22AC Insulation, panel, body front, LH, RHD 07MY	-	1	Enquire
6	8G43015A23AA	BAFFLE BODY FRONT PANEL LHD LH	8G43015A23AA BAFFLE BODY FRONT PANEL LHD LH 07MY	-	1	Enquire
6	8G43015A22AB	BAFFLE BODY FRONT PANEL RHD LH	8G43015A22AB BAFFLE BODY FRONT PANEL RHD LH 08MY	-	1	Enquire
6	8G43015A23AA	BAFFLE BODY FRONT PANEL LHD LH	8G43015A23AA BAFFLE BODY FRONT PANEL LHD LH 08MY	-	1	Enquire
7	4G437Z309AC	Insulation, Transmission Case Cover	4G437Z309AC Insulation, Transmission Case Cover	-	1	Enquire
8	4G4311446AE	Insulation, floor, pan, gearshift cover	4G4311446AE Insulation, floor, pan, gearshift cover 07MY	-	1	Enquire
8	8G4311446AB	Insulation, Sound, Floor Pan Gear Shift Cover	8G4311446AB Insulation, Sound, Floor Pan Gear Shift Cover 08MY	-	1	Enquire
9	4G4311205AC	REAR FLOOR PAN NVH LH	4G4311205AC REAR FLOOR PAN NVH LH 07MY	-	1	Enquire
9	8G4311205AA	Insulation, Sound, Rear Floor Pan, LH	8G4311205AA Insulation, Sound, Rear Floor Pan, LH 08MY	-	1	Enquire
10	4G4311204AA	Insulation, Sound, Rear Floor Pan, RH	4G4311204AA Insulation, Sound, Rear Floor Pan, RH	-	1	Enquire
11	4G43F310A26AA	Insulation, Sound, Quarter I/S Panel	4G43F310A26AA Insulation, Sound, Quarter I/S Panel	-	2	Enquire
12	4G4328112AB	NVH FOAM PAD ASY FNDR RH UPR	4G4328112AB NVH FOAM PAD ASY FNDR RH UPR	-	2	Enquire
13	4G4327747AB	INS RR QTR SND LH	4G4327747AB INS RR QTR SND LH	-	1	Enquire
14	4G4327746AB	INS RR QTR SND RH	4G4327746AB INS RR QTR SND RH	-	1	Enquire
15	4G4300152BG	RHD UNDER WIPER MOTOR NVH	4G4300152BG RHD UNDER WIPER MOTOR NVH	-	1	Enquire
15	4G4300152AG	LHD UNDER WIPER MOTOR NVH	4G4300152AG LHD UNDER WIPER MOTOR NVH	-	1	Enquire
16	4G43114B26AH	Insulation, Tunnel	4G43114B26AH Insulation, Tunnel	-	1	Enquire
17	4G4328110AB	NVH FOAM PAD ASY FNDR RH LWR	4G4328110AB NVH FOAM PAD ASY FNDR RH LWR	-	1	Enquire
18	4G4328111AB	NVH FOAM PAD ASY FNDR LH LWR	4G4328111AB NVH FOAM PAD ASY FNDR LH LWR	-	1	Enquire
19	6G33102B00BE	INS ENG HSG SND RHD	6G33102B00BE INS ENG HSG SND RHD	-	1	Enquire
19	6G33102B00AE	INS ENG HSG SND LHD	6G33102B00AE INS ENG HSG SND LHD	-	1	Enquire
20	4G4354572AE	Baffle, Floor, LH	4G4354572AE Baffle, Floor, LH	-	1	Enquire
21	4G4354571AF	Baffle, Floor, RH	4G4354571AF Baffle, Floor, RH	-	1	Enquire
22	4G4302139AB	BAFFLE COWL TOP IN END	4G4302139AB BAFFLE COWL TOP IN END	-	1	Enquire
23	4G43C27746AC	Insulation, Rear Quarter Sound I/S Panel	4G43C27746AC Insulation, Rear Quarter Sound I/S Panel	-	2	Enquire
24	4G43C56157AB	PACKAGE TRAY ABSORBER	4G43C56157AB PACKAGE TRAY ABSORBER 07MY	-	1	Enquire
24	8G43C56157AD	Sheet Damping SPT, Rear Parcel Shelf	8G43C56157AD Sheet Damping SPT, Rear Parcel Shelf 08MY	-	1	Enquire
25	4G43002K06AD	Insulation, panel, body front, RH, RHD	4G43002K06AD Insulation, panel, body front, RH, RHD 07MY	-	1	Enquire
25	4G43002K05AD	Insulation, panel, body front, RH, LHD	4G43002K05AD Insulation, panel, body front, RH, LHD 07MY	-	1	Enquire
25	8G43002K06AA	Insulation, panel, body front, RH, RHD	8G43002K06AA Insulation, panel, body front, RH, RHD 08MY	-	1	Enquire
25	8G43002K05AA	BAFFLE BODY FRONT PANEL LHD RH	8G43002K05AA BAFFLE BODY FRONT PANEL LHD RH 08MY	-	1	Enquire
26	8G435416AF	NVH TNL RR INR	8G435416AF NVH TNL RR INR	-	1	Enquire
26	6G3368066AC	NVH DASH FOAM UNDER SIDE CAVITY ASSY	6G3368066AC NVH DASH FOAM UNDER SIDE CAVITY ASSY	-	1	Enquire
26	8G3324926AB	PAD TUNNEL SIDE RIGHT HAND	8G3324926AB PAD TUNNEL SIDE RIGHT HAND	-	1	Enquire
26	8G3324927AB	PAD TUNNEL SIDE LEFT HAND	8G3324927AB PAD TUNNEL SIDE LEFT HAND	-	1	Enquire
26	697648	Fastener, Fir Tree	697648 Fastener, Fir Tree	-	4	Enquire
26	702212	Snapsac, 6.8mm, Push-on, Plastic	702212 Snapsac, 6.8mm, Push-on, Plastic	-	5	Enquire
