Grille Radiator (2009)

Find Your Part

Aston Martin DB9 (2004-2012) - Grille Radiator (2009)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G437111006 RADIATOR GRILLE & SUPPORT ASSY $1,847.55 To Order
9G437111007 RADIATOR GRILLE & SUPPORT BRIGHT FINISH $1,847.53 To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $1.05 To Order
Photo Part No Description Price (each) Stock
707135 SCREW 4.2 X 13 SELF TAPPING $0.11 To Order
Photo Part No Description Price (each) Stock
703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) $5.40 To Order
Photo Part No Description Price (each) Stock
AD435435AA Spacer Washer, 20 x 6.4 x 6 $5.01 To Order
7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) $10.29 To Order
Photo Part No Description Price (each) Stock
707620 Nut-M4 HEX FLANGED $0.43 To Order
View All

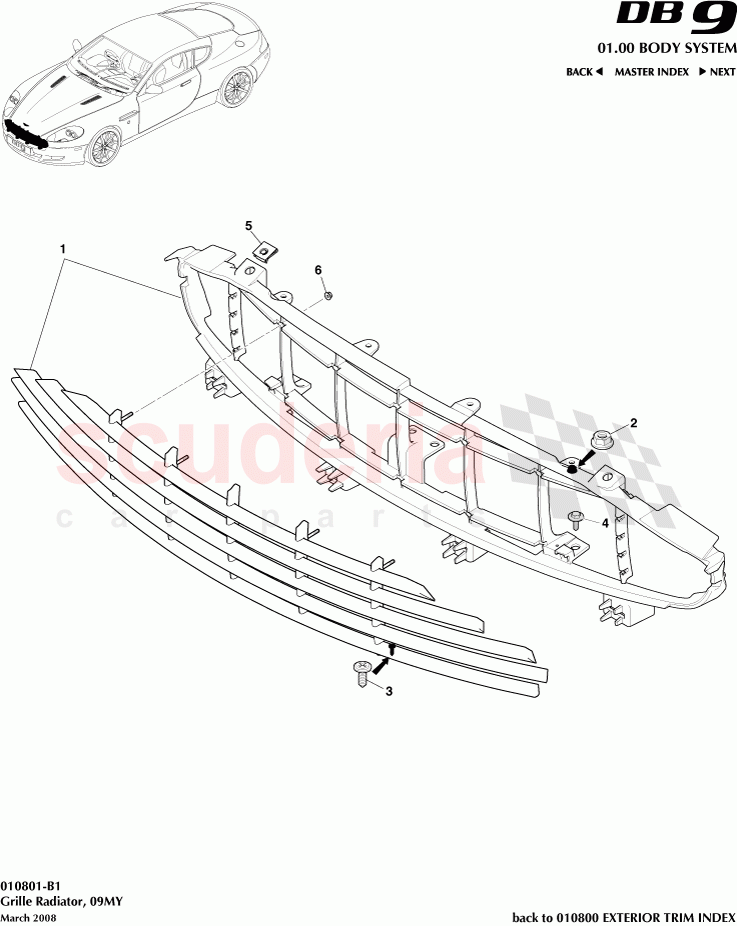

Grille Radiator (2009) of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G437111006
RADIATOR GRILLE & SUPPORT ASSY 		$1,847.55 1
1 9G437111007
RADIATOR GRILLE & SUPPORT BRIGHT FINISH 		$1,847.53 1
2 702944
Nut, M6, Hex Flanged Head 		$1.05 2
3 707135
SCREW 4.2 X 13 SELF TAPPING 		$0.11 2
4 703152PK
Screw & Washer M6 x 20 Hex Head (Pack of 10) 		$5.40 4
5 AD435435AA
Spacer Washer, 20 x 6.4 x 6
front wing to grille surround 		$5.01 2
5 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) 		$10.29 2
6 707620
Nut-M4 HEX FLANGED 		$0.43 10
