Rear Bumper of Aston Martin Aston Martin DB9 (2004-2012)

View All

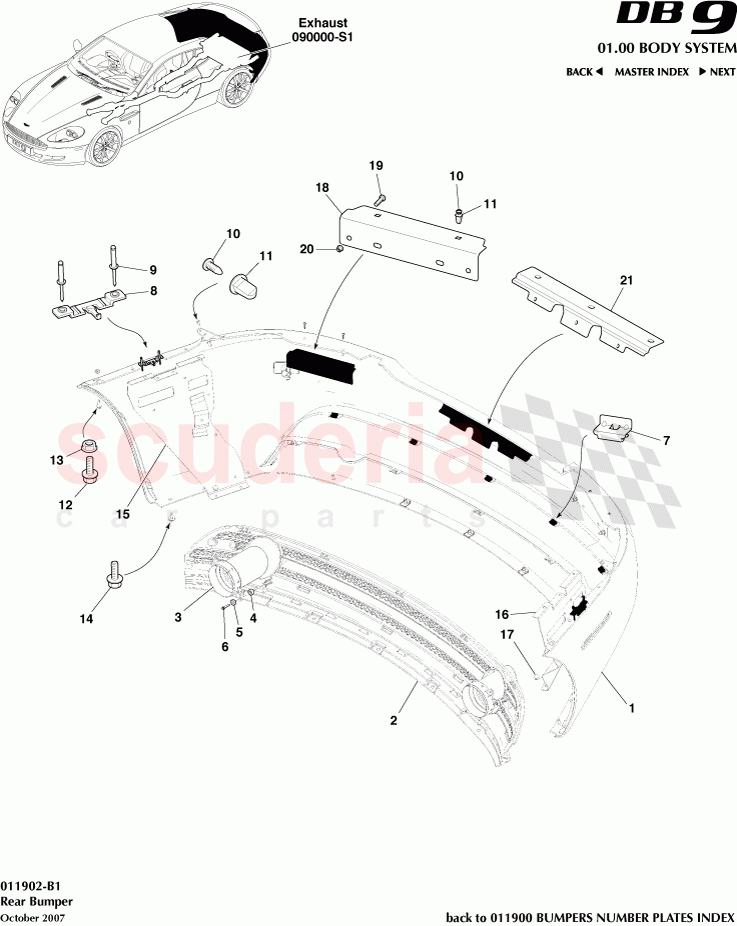

Aston Martin DB9 (2004-2012) - Rear Bumper

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G4317K835CP	COVER ASSY RR BMPR	Enquire	To Order
	4G4317K835DP	COVER ASSY RR BMPR	Enquire	To Order
	4G4317K835CP	COVER ASSY RR BMPR	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AG43501T0BA	MESH REAR WITH PDC - MAGNUM SILVER	Enquire	To Order
	AG43501T0BA	MESH REAR WITH PDC - MAGNUM SILVER	Enquire	To Order
	AG43501T0AA	MESH REAR WITH PDC - BLACK FINISH	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AG435K238AC	Finisher, Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335K239CAPK	SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335K239BAPK	SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4340412AC	SCREW-M4x30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43023A50BBPK	External Fender Clip (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701580PK	Rivet Dome Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707617	Screw, M4 Self Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701656	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317A881AH	RET ASY-RR BMPR SD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317A882AH	RET ASY-RR BMPR SD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317B930AA	Bracket, Bumper Mounting, Outer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order
	70145	Screw, M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317B681AH	BUMPER MOUNTING BRACKET - CENTRE	Enquire	To Order
	702838	CLIP-RETAINING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4317K835CP	COVER ASSY RR BMPR	4G4317K835CP COVER ASSY RR BMPR ROW From 13-05-05 up to (V) TBA	-	1	Enquire
1	4G4317K835DP	COVER ASSY RR BMPR	4G4317K835DP COVER ASSY RR BMPR From 13-05-05 up to (V) TBA	-	1	Enquire
1	4G4317K835CP	COVER ASSY RR BMPR	4G4317K835CP COVER ASSY RR BMPR ROW Up to 22-11-04	-	1	Enquire
1	4G4317K835CP	COVER ASSY RR BMPR	4G4317K835CP COVER ASSY RR BMPR ROW From 22-11-04	-	1	Enquire
1	4G4317K835CP	COVER ASSY RR BMPR	4G4317K835CP COVER ASSY RR BMPR ROW From 16-03-06	-	1	Enquire
1	4G4317K835CP	COVER ASSY RR BMPR	4G4317K835CP COVER ASSY RR BMPR ROW From (V) TBA	-	1	Enquire
1	4G4317K835DP	COVER ASSY RR BMPR	4G4317K835DP COVER ASSY RR BMPR Up to 22-11-04	-	1	Enquire
1	4G4317K835BE	Cover assy, rear bumper, FEDERAL	4G4317K835BE Cover assy, rear bumper, FEDERAL Up to 22-11-04	-	1	Enquire
1	4G4317K835AJ	COVER ASSY REAR BUMPER	4G4317K835AJ COVER ASSY REAR BUMPER Up to 22-11-04	-	1	Enquire
1	4G4317K835DP	COVER ASSY RR BMPR	4G4317K835DP COVER ASSY RR BMPR From 22-11-04	-	1	Enquire
1	4G4317K835DP	COVER ASSY RR BMPR	4G4317K835DP COVER ASSY RR BMPR From 16-03-06	-	1	Enquire
1	4G4317K835BJ	COVER ASSY REAR BUMPER	4G4317K835BJ COVER ASSY REAR BUMPER From 22-11-04	-	1	Enquire
1	4G4317K835BJ	COVER ASSY REAR BUMPER	4G4317K835BJ COVER ASSY REAR BUMPER From 13-05-05	-	1	Enquire
1	4G4317K835BJ	COVER ASSY REAR BUMPER	4G4317K835BJ COVER ASSY REAR BUMPER From 06-09-05	-	1	Enquire
1	4G4317K835AJ	COVER ASSY REAR BUMPER	4G4317K835AJ COVER ASSY REAR BUMPER From 22-11-04	-	1	Enquire
1	4G4317K835AJ	COVER ASSY REAR BUMPER	4G4317K835AJ COVER ASSY REAR BUMPER From 13-05-05	-	1	Enquire
1	4G4317K835AJ	COVER ASSY REAR BUMPER	4G4317K835AJ COVER ASSY REAR BUMPER From 06-09-05	-	1	Enquire
1	4G4317K835DP	COVER ASSY RR BMPR	4G4317K835DP COVER ASSY RR BMPR From (V) TBA	-	1	Enquire
2	AG43501T0BA	MESH REAR WITH PDC - MAGNUM SILVER	AG43501T0BA MESH REAR WITH PDC - MAGNUM SILVER PDC, Magnum Silver	-	1	Enquire
2	AG43501T0BA	MESH REAR WITH PDC - MAGNUM SILVER	AG43501T0BA MESH REAR WITH PDC - MAGNUM SILVER Magnum Silver	-	1	Enquire
2	AG43501T0AA	MESH REAR WITH PDC - BLACK FINISH	AG43501T0AA MESH REAR WITH PDC - BLACK FINISH Standard	-	1	Enquire
2	4G4301948AF	LOWER REAR MESH	4G4301948AF LOWER REAR MESH Non PDC	-	1	Enquire
2	4G4301948BF	PNL ASSY VENT AIR REAR - PDC - BLACK	4G4301948BF PNL ASSY VENT AIR REAR - PDC - BLACK PDC	-	1	Enquire
3	AG435K238AC	Finisher, Exhaust	AG435K238AC Finisher, Exhaust	-	2	Enquire
4	6G335K239CAPK	SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10)	6G335K239CAPK SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10)	-	4	Enquire
5	6G335K239BAPK	SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)	6G335K239BAPK SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)	-	4	Enquire
6	AG4340412AC	SCREW-M4x30	AG4340412AC SCREW-M4x30	-	4	Enquire
7	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	4G4317F773ABPK Retainer Grille to Front Bumper (Pack of 10)	-	10	Enquire
8	4G43023A50BBPK	External Fender Clip (Pack of 5)	4G43023A50BBPK External Fender Clip (Pack of 5)	-	2	Enquire
9	701580PK	Rivet Dome Head (Pack of 20)	701580PK Rivet Dome Head (Pack of 20)	-	2	Enquire
10	707617	Screw, M4 Self Tapping	707617 Screw, M4 Self Tapping	-	8	Enquire
11	701656	RETAINER	701656 RETAINER	-	8	Enquire
12	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG	-	4	Enquire
13	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE 08MY	-	4	Enquire
13	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	4	Enquire
14	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	9	Enquire
15	4G4317A881AH	RET ASY-RR BMPR SD	4G4317A881AH RET ASY-RR BMPR SD	-	1	Enquire
16	4G4317A882AH	RET ASY-RR BMPR SD	4G4317A882AH RET ASY-RR BMPR SD	-	1	Enquire
18	4G4317B930AA	Bracket, Bumper Mounting, Outer	4G4317B930AA Bracket, Bumper Mounting, Outer	-	2	Enquire
19	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE 08MY	-	4	Enquire
19	70145	Screw, M6 x 16	70145 Screw, M6 x 16	-	4	Enquire
20	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	4	Enquire
21	4G4317B681AH	BUMPER MOUNTING BRACKET - CENTRE	4G4317B681AH BUMPER MOUNTING BRACKET - CENTRE	-	1	Enquire
21	702838	CLIP-RETAINING	702838 CLIP-RETAINING	-	2	Enquire
