Aston Martin DB9 (2004-2012) - EV Structure (Coupe)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD43V17N800AC BUMPER FRONT CRASH CAN $2,235.19 To Order
AD43V17N800AC BUMPER FRONT CRASH CAN $2,235.19 To Order
Photo Part No Description Price (each) Stock
703172PK Screw M8 x 25 Pan Head (Pack of 10) $5.90 To Order
703201 SCREW M8 x 30 HEX FLANGE CHROME FREE $0.71 To Order
Photo Part No Description Price (each) Stock
4G4313068AD PANEL HEADLAMP MOUNTING RH $765.79 To Order
Photo Part No Description Price (each) Stock
4G4313069AD PANEL HEADLAMP MOUNTING LH $765.79 To Order
703172PK Screw M8 x 25 Pan Head (Pack of 10) $5.90 To Order
Photo Part No Description Price (each) Stock
4G436367912AD NUT PLT ASY FRT CRSH $13.00 To Order
Photo Part No Description Price (each) Stock
4G43043B19AC TUBE PASSENGER AIR BAG INITIATPR RH $39.63 To Order
Photo Part No Description Price (each) Stock
4G43043B20AC TUBE PASSENGER AIR BAG INITIATOR LH $73.12 To Order
Photo Part No Description Price (each) Stock
4G43108A86CA Bracket, Front Cross Brace, RH $134.02 To Order
Photo Part No Description Price (each) Stock
4G43108A87CA Bracket, Front Cross Brace, LH $134.02 To Order
Photo Part No Description Price (each) Stock
4G43108A75AA BRA FRT CS $139.89 To Order
Photo Part No Description Price (each) Stock
702209 Bolt, M10 x 25, Torque Drive $1.41 To Order
Photo Part No Description Price (each) Stock
4G43F00198AF Reinforce, body cross bar, RH Enquire To Order
4G43F00199AF Reinforce, body cross bar, LH Enquire To Order
Photo Part No Description Price (each) Stock
702209 Bolt, M10 x 25, Torque Drive $1.41 To Order
703163 Nut, M6, Hex Flange Head, Locking $0.12 To Order
Photo Part No Description Price (each) Stock
4G435340AJ BRACKET ECU MOUNTING RH $196.17 To Order
Photo Part No Description Price (each) Stock
4G435341AJ BRACKET ECU MOUNTING LH $196.17 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 To Order
Photo Part No Description Price (each) Stock
4G4316802AA NUT PLATE HOOD HINGE MOUNTING BRACKET $13.96 To Order
Photo Part No Description Price (each) Stock
4G43111C60AD PANEL DUMMY FLOOR FRONT $450.50 To Order
4G43111C61AE Panel, Dummy Floor Front, RHD $450.50 To Order
4G43111C60AD PANEL DUMMY FLOOR FRONT $450.50 To Order
Photo Part No Description Price (each) Stock
4G43111B48AB Panel, Dummy Floor Cover, Front $48.94 To Order
Photo Part No Description Price (each) Stock
701553 Screw, M6 x 16, Pan Head $0.21 To Order
Photo Part No Description Price (each) Stock
4G43111K36AF TUNNEL REINFORCEMENT FRONT $141.72 To Order
Photo Part No Description Price (each) Stock
4G43111K37AE Tunnel Reinforcement, Centre $88.29 To Order
Photo Part No Description Price (each) Stock
703172PK Screw M8 x 25 Pan Head (Pack of 10) $5.90 To Order
Photo Part No Description Price (each) Stock
4G431660AA TUNNEL REINFORCEMENT FRONT SPACER $25.73 To Order
Photo Part No Description Price (each) Stock
7G4310N660AC PANEL BATTERY COVER RH $534.30 To Order
Photo Part No Description Price (each) Stock
7G4310N661AA PANEL BATTERY COVER LH $83.92 To Order
Photo Part No Description Price (each) Stock
4G4367518AE PANEL REAR SEAT HEEL BOARD RH $226.46 To Order
Photo Part No Description Price (each) Stock
7G4367519AB Panel, rear seat heel board LH Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 To Order
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking $0.12 To Order
Photo Part No Description Price (each) Stock
4G4338580AK ASY PNL F/TNK COMP $725.65 To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.29 To Order
Photo Part No Description Price (each) Stock
4G4318A000AC Member, rear damper mnting RH Enquire To Order
Photo Part No Description Price (each) Stock
4G4318A001AC Member, rear damper mnting LH Enquire To Order
Photo Part No Description Price (each) Stock
703185 M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE $11.14 To Order
Photo Part No Description Price (each) Stock
4G43C114B10AB BRACKET REAR SEAT CHILD SEAT OUTER RH $46.09 To Order
Photo Part No Description Price (each) Stock
4G43612C58AA Plate, Child Seat Attachment $12.39 To Order
Photo Part No Description Price (each) Stock
4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14 $16.81 To Order
Photo Part No Description Price (each) Stock
4G43433A32AF REINF L/C DR LAT HSE $84.33 To Order
Photo Part No Description Price (each) Stock
4G4311262AC REINF ASSY FRT FLR PAN FRT $1,155.74 To Order
4G4311262AC REINF ASSY FRT FLR PAN FRT $1,155.74 To Order
9G4311262BA Reinforcement Assembly, Floor Pan Front $748.46 To Order
...and 1 more part variants. See table on right for more details.
View All

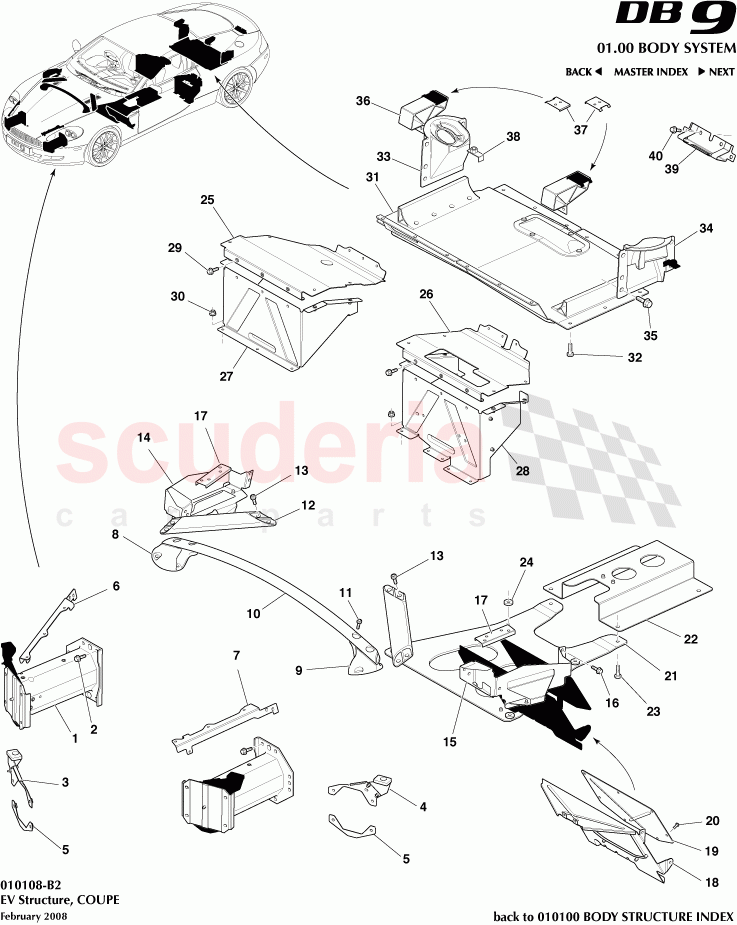

EV Structure (Coupe) of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD43V17N800AC
BUMPER FRONT CRASH CAN
09MY 		$2,235.19 2
1 AD43V17N800AC
BUMPER FRONT CRASH CAN 		$2,235.19 2
2 703172PK
Screw M8 x 25 Pan Head (Pack of 10)
07MY 		$5.90 12
2 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE
08MY 		$0.71 12
3 4G4313068AD
PANEL HEADLAMP MOUNTING RH 		$765.79 1
4 4G4313069AD
PANEL HEADLAMP MOUNTING LH 		$765.79 1
4 703172PK
Screw M8 x 25 Pan Head (Pack of 10) 		$5.90 2
5 4G436367912AD
NUT PLT ASY FRT CRSH 		$13.00 2
6 4G43043B19AC
TUBE PASSENGER AIR BAG INITIATPR RH 		$39.63 1
7 4G43043B20AC
TUBE PASSENGER AIR BAG INITIATOR LH 		$73.12 1
8 4G43108A86CA
Bracket, Front Cross Brace, RH 		$134.02 1
9 4G43108A87CA
Bracket, Front Cross Brace, LH 		$134.02 1
10 4G43108A75AA
BRA FRT CS 		$139.89 1
11 702209
Bolt, M10 x 25, Torque Drive 		$1.41 4
12 4G43F00198AF
Reinforce, body cross bar, RH
Order in pairs 		- 2 Enquire
12 4G43F00199AF
Reinforce, body cross bar, LH
Order in pairs 		- 2 Enquire
13 702209
Bolt, M10 x 25, Torque Drive 		$1.41 4
13 703163
Nut, M6, Hex Flange Head, Locking 		$0.12 4
14 4G435340AJ
BRACKET ECU MOUNTING RH 		$196.17 1
15 4G435341AJ
BRACKET ECU MOUNTING LH 		$196.17 1
16 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		$0.21 12
17 4G4316802AA
NUT PLATE HOOD HINGE MOUNTING BRACKET 		$13.96 2
18 4G43111C60AD
PANEL DUMMY FLOOR FRONT
LHD, 09MY 		$450.50 1
18 4G43111C61AE
Panel, Dummy Floor Front, RHD
RHD 		$450.50 1
18 4G43111C60AD
PANEL DUMMY FLOOR FRONT
LHD 		$450.50 1
19 4G43111B48AB
Panel, Dummy Floor Cover, Front 		$48.94 1
20 701553
Screw, M6 x 16, Pan Head 		$0.21 8
21 4G43111K36AF
TUNNEL REINFORCEMENT FRONT 		$141.72 1
22 4G43111K37AE
Tunnel Reinforcement, Centre 		$88.29 1
23 703172PK
Screw M8 x 25 Pan Head (Pack of 10) 		$5.90 8
24 4G431660AA
TUNNEL REINFORCEMENT FRONT SPACER 		$25.73 4
25 7G4310N660AC
PANEL BATTERY COVER RH 		$534.30 1
26 7G4310N661AA
PANEL BATTERY COVER LH
07MY 		$83.92 1
27 4G4367518AE
PANEL REAR SEAT HEEL BOARD RH 		$226.46 1
28 7G4367519AB
Panel, rear seat heel board LH
07MY 		- 1 Enquire
29 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		$0.21 22
30 703163
Nut, M6, Hex Flange Head, Locking 		$0.12 12
31 4G4338580AK
ASY PNL F/TNK COMP 		$725.65 1
32 703121
Screw, M8 x 25, Hex Flange Head 		$0.29 16
33 4G4318A000AC
Member, rear damper mnting RH 		- 1 Enquire
34 4G4318A001AC
Member, rear damper mnting LH 		- 1 Enquire
35 703185
M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE 		$11.14 8
36 4G43C114B10AB
BRACKET REAR SEAT CHILD SEAT OUTER RH 		$46.09 2
37 4G43612C58AA
Plate, Child Seat Attachment 		$12.39 2
38 4G43501B0AC
NUT PLATE REAR SUB FRAME REAR M14 		$16.81 2
39 4G43433A32AF
REINF L/C DR LAT HSE 		$84.33 1
40 4G4311262AC
REINF ASSY FRT FLR PAN FRT
Up to 22/01/2007 		$1,155.74 1
40 4G4311262AC
REINF ASSY FRT FLR PAN FRT
From 22/01/2007 		$1,155.74 1
40 9G4311262BA
Reinforcement Assembly, Floor Pan Front
09MY 		$748.46 1
40 703121
Screw, M8 x 25, Hex Flange Head 		$0.29 2
