Fuel Filler Door Latches and Mechanisms (Coupe) of Aston Martin Aston Martin DB9 (2004-2012)

View All

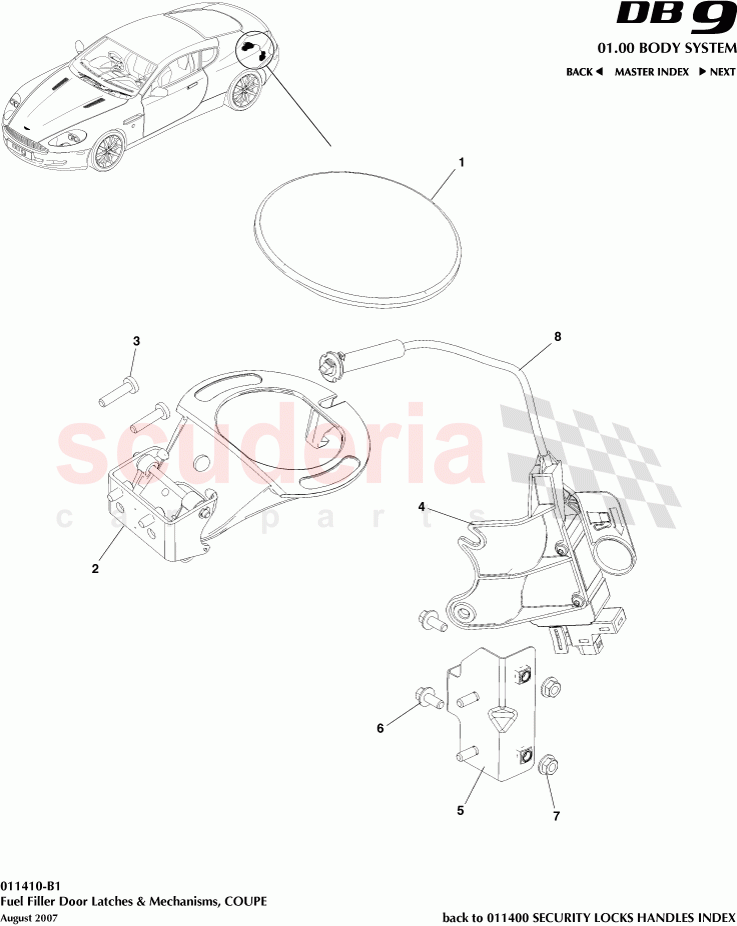

Aston Martin DB9 (2004-2012) - Fuel Filler Door Latches and Mechanisms (Coupe)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G43C405A02BA	Door, Fuel Filler Opening	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43C405B96BC	ASY FU/FL DR LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	Enquire	IN STOCK
	702847	SCREW-M6x25 PAN INT LOB 8	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G433710067	Actuator Assy, Fuel Filler	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G439N447AB	Mounting Bracket, Fuel Filler Solenoid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	IN STOCK
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	IN STOCK
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4314605AA	Grommet, Rubber	Enquire	IN STOCK
	AG4340180BA	Cable, Fuel Filler Flap Release	Enquire	IN STOCK
	4G4346662AAPK	WSHR SPACING 2mm(10)	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G43C405A02BA	Door, Fuel Filler Opening	4G43C405A02BA Door, Fuel Filler Opening	-	1	Enquire
2	BG43C405B96BC	ASY FU/FL DR LATCH	BG43C405B96BC ASY FU/FL DR LATCH	-	2	Enquire
3	703149	SCREW M6x16 PAN FLG TORX CHROME FRE IN STOCK	703149 SCREW M6x16 PAN FLG TORX CHROME FRE 08MY IN STOCK	-	2	Enquire
3	702847	SCREW-M6x25 PAN INT LOB 8 IN STOCK	702847 SCREW-M6x25 PAN INT LOB 8 07MY IN STOCK	-	2	Enquire
4	4G433710067	Actuator Assy, Fuel Filler IN STOCK	4G433710067 Actuator Assy, Fuel Filler IN STOCK	-	1	Enquire
5	4G439N447AB	Mounting Bracket, Fuel Filler Solenoid	4G439N447AB Mounting Bracket, Fuel Filler Solenoid	-	1	Enquire
6	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD Solenoid to bracket 07MY IN STOCK	-	2	Enquire
6	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD Solenoid to bracket 08MY IN STOCK	-	2	Enquire
7	702944	Nut, M6, Hex Flanged Head IN STOCK	702944 Nut, M6, Hex Flanged Head Solenoid to bracket 07MY IN STOCK	-	2	Enquire
7	703163	Nut, M6, Hex Flange Head, Locking IN STOCK	703163 Nut, M6, Hex Flange Head, Locking Solenoid to bracket 08MY IN STOCK	-	2	Enquire
8	4G4314605AA	Grommet, Rubber IN STOCK	4G4314605AA Grommet, Rubber IN STOCK	-	1	Enquire
8	AG4340180BA	Cable, Fuel Filler Flap Release IN STOCK	AG4340180BA Cable, Fuel Filler Flap Release IN STOCK	-	1	Enquire
8	4G4346662AAPK	WSHR SPACING 2mm(10) IN STOCK	4G4346662AAPK WSHR SPACING 2mm(10) IN STOCK	-	2	Enquire
