Aston Martin DB9 (2004-2012) - Tonneau Latching System (Volante)

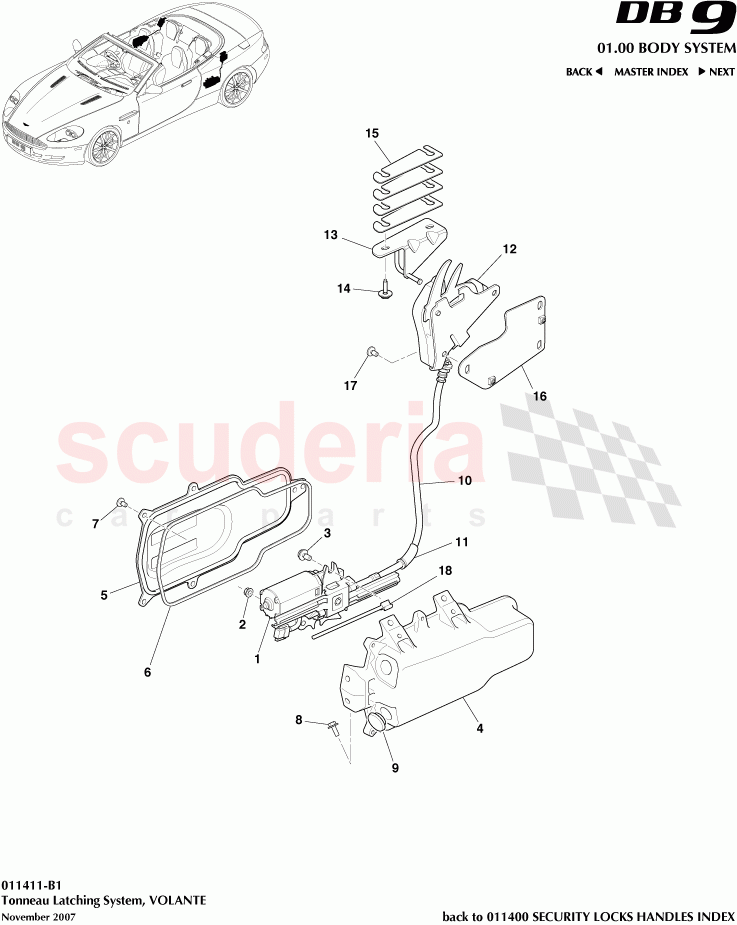

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G433710477 Motor Tonneau Latch $1,274.14 To Order
4G43239600AA Tonneau Motor Cable Guide Clip $15.94 To Order
4G439310903 Cable Guide $57.73 To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $1.05 To Order
702944 Nut, M6, Hex Flanged Head $1.05 To Order
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free $0.53 To Order
703151 Screw M6x16 Washer Hex HD Chrome Free $0.53 To Order
Photo Part No Description Price (each) Stock
4G4368009AD Enclosure, tonneau latch motor $43.88 To Order
Photo Part No Description Price (each) Stock
4G4353548AC Lid, Tonneau Latch Motor Assy $27.28 To Order
Photo Part No Description Price (each) Stock
4G433956AB Seal, tonneau latch motor Enquire To Order
Photo Part No Description Price (each) Stock
W505972S424 Screw, M6 x 12, pan Enquire To Order
Photo Part No Description Price (each) Stock
702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) $5.88 To Order
Photo Part No Description Price (each) Stock
4G43301347AA BLACK TPR BODY PLUG 20mm $1.44 To Order
Photo Part No Description Price (each) Stock
4G4353922AB Tonneau Latch Motor Drive Cable $149.85 ARRIVING SOON
Photo Part No Description Price (each) Stock
4G436C691AD Grommet Sleeve, Cable $4.71 To Order
Photo Part No Description Price (each) Stock
4G4354797AB Latch, Tonneau, LH $351.55 To Order
4G4354796AB Latch, Tonneau, RH $351.55 To Order
Photo Part No Description Price (each) Stock
4G4353975AD STRIKER ASSY TONNEAU COVER LH $98.17 To Order
4G4353974AD STRIKER ASSY TONNEAU COVER RH $98.15 To Order
Photo Part No Description Price (each) Stock
703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) $5.40 To Order
703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) $5.40 To Order
Photo Part No Description Price (each) Stock
4G43431F59AC LOWER TONNEAU STRIKER SHIM 1mm $20.86 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 To Order
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 To Order
4G43L43161AC LH TONNEAU LATCH MOUNTING PLATE $18.04 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
703143 BUTTON TORX WASHER CHROME FREE $1.94 To Order
703143 BUTTON TORX WASHER CHROME FREE $1.94 To Order
Photo Part No Description Price (each) Stock
702944 Nut, M6, Hex Flanged Head $1.05 To Order
702944 Nut, M6, Hex Flanged Head $1.05 To Order
700606 Screw, M6 x 12, Hex Flange Head $0.21 To Order
...and 9 more part variants. See table on right for more details.
View All
Tonneau Latching System (Volante) of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G433710477
Motor Tonneau Latch
-Cable guide clip required 		$1,274.14 2
1 4G43239600AA
Tonneau Motor Cable Guide Clip
-Order with motor 		$15.94 2
1 4G439310903
Cable Guide 		$57.73 2
2 702944
Nut, M6, Hex Flanged Head
07MY 		$1.05 2
2 702944
Nut, M6, Hex Flanged Head
08MY 		$1.05 2
3 703151
Screw M6x16 Washer Hex HD Chrome Free
07MY 		$0.53 6
3 703151
Screw M6x16 Washer Hex HD Chrome Free
08MY 		$0.53 6
4 4G4368009AD
Enclosure, tonneau latch motor 		$43.88 2
5 4G4353548AC
Lid, Tonneau Latch Motor Assy 		$27.28 2
6 4G433956AB
Seal, tonneau latch motor 		- 2 Enquire
7 W505972S424
Screw, M6 x 12, pan 		- 7 Enquire
8 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20) 		$5.88 6
9 4G43301347AA
BLACK TPR BODY PLUG 20mm 		$1.44 2
10 4G4353922AB
Tonneau Latch Motor Drive Cable
ARRIVING SOON 		$149.85 2
11 4G436C691AD
Grommet Sleeve, Cable 		$4.71 2
12 4G4354797AB
Latch, Tonneau, LH 		$351.55 1
12 4G4354796AB
Latch, Tonneau, RH 		$351.55 1
13 4G4353975AD
STRIKER ASSY TONNEAU COVER LH 		$98.17 1
13 4G4353974AD
STRIKER ASSY TONNEAU COVER RH 		$98.15 1
14 703152PK
Screw & Washer M6 x 20 Hex Head (Pack of 10)
07MY 		$5.40 6
14 703152PK
Screw & Washer M6 x 20 Hex Head (Pack of 10)
08MY 		$5.40 6
15 4G43431F59AC
LOWER TONNEAU STRIKER SHIM 1mm 		$20.86 -
16 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
07MY 		$0.21 6
16 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
08MY 		$0.21 6
16 4G43L43161AC
LH TONNEAU LATCH MOUNTING PLATE 		$18.04 1
16 4G43L43160AC
RH TONNEAU LATCH MOUNTING PLATE 		$18.04 1
17 703143
BUTTON TORX WASHER CHROME FREE
07MY 		$1.94 4
17 703143
BUTTON TORX WASHER CHROME FREE
08MY 		$1.94 4
18 702944
Nut, M6, Hex Flanged Head
07MY 		$1.05 2
18 702944
Nut, M6, Hex Flanged Head
08MY 		$1.05 2
18 700606
Screw, M6 x 12, Hex Flange Head
07MY 		$0.21 6
18 700606
Screw, M6 x 12, Hex Flange Head
08MY 		$0.21 6
18 4G434S018AA
Bracket, Tonneau Cover Bump Stop Mounting, RH 		$41.22 1
18 4G434S017AA
Bracket, Tonneau Cover Bump Stop Mounting, LH 		$41.22 1
18 4G43239600AA
Tonneau Motor Cable Guide Clip 		$15.94 2
18 4G4316K808AB
Bumper Hood to Cowl Top 		$4.30 2
18 4G4349198AA
Shim, 2mm Tonneau Hinge 		$16.65 2
18 4G4353923AA
WORM CABLE 		$24.60 2
18 4G4349200AA
Shim, 0.6mm Tonneau Hinge 		$40.79 4
18 4G4349199AA
Shim, 1mm Tonneau Hinge 		$5.71 4
