Aston Martin DB9 (2004-2012) - Splash and Heat Shields

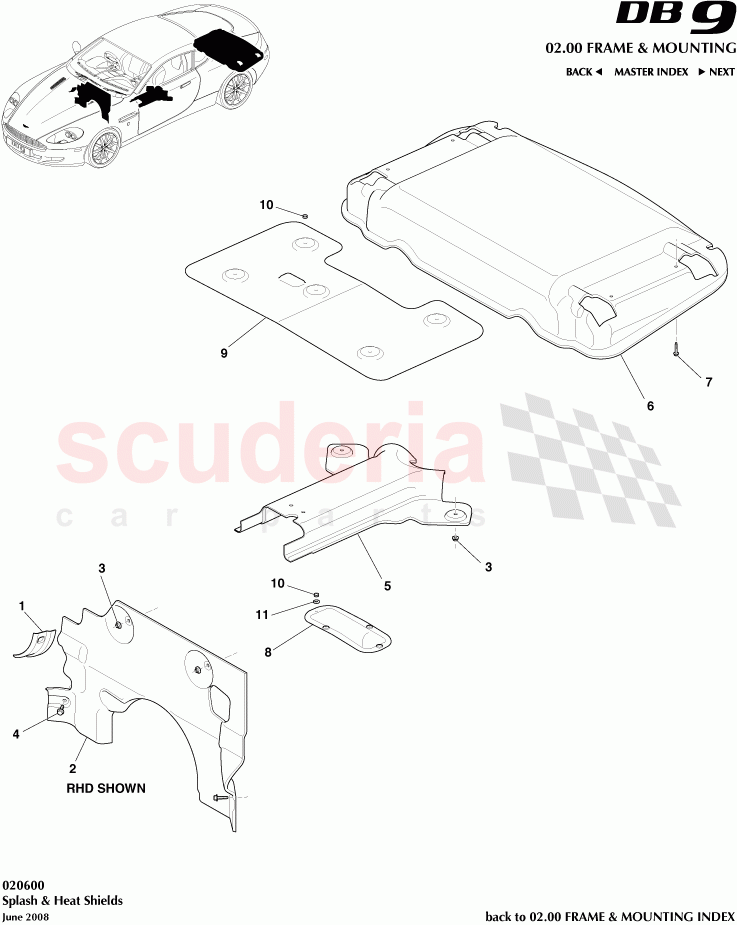

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G432B485AC	HEATSHIELD - BRAKE BOOSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43017A16BG	HEATSHIELD - FRONT BULKHEAD - RHD	Enquire	To Order
	4G43017A16AG	HEATSHIELD - FRONT BULKHEAD - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE	Enquire	IN STOCK
	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	IN STOCK
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	IN STOCK
	4G434A380AE	HEATSHIELD - TUNNEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CG435290AB	Heat Shield, Rear Silencer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	IN STOCK
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G439B184AB	Heat Shield, Fuel Tank, Auxiliary	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A032AF	HEATSHIELD - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702811	Rivet, Blind, 6.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697286	Washer M6 Large OD	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G432B485AC	HEATSHIELD - BRAKE BOOSTER	4G432B485AC HEATSHIELD - BRAKE BOOSTER	-	1	Enquire
2	4G43017A16BG	HEATSHIELD - FRONT BULKHEAD - RHD	4G43017A16BG HEATSHIELD - FRONT BULKHEAD - RHD	-	1	Enquire
2	4G43017A16AG	HEATSHIELD - FRONT BULKHEAD - LHD	4G43017A16AG HEATSHIELD - FRONT BULKHEAD - LHD	-	1	Enquire
3	703612	Nut & Washer, M6, HVAC to XCB IN STOCK	703612 Nut & Washer, M6, HVAC to XCB IN STOCK	-	2	Enquire
4	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE IN STOCK	703145 M6 x 30 WSHR HO BOLT ASSY CHROME FREE 08MY From (V) A09110 IN STOCK	-	2	Enquire
4	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE IN STOCK	703145 M6 x 30 WSHR HO BOLT ASSY CHROME FREE 07MY IN STOCK	-	2	Enquire
5	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free 08MY From (V) A09110 IN STOCK	-	2	Enquire
5	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free 07MY IN STOCK	-	2	Enquire
5	4G434A380AE	HEATSHIELD - TUNNEL	4G434A380AE HEATSHIELD - TUNNEL	-	1	Enquire
5	703162	NUT M8 HF 8 CHROME FREE	703162 NUT M8 HF 8 CHROME FREE	-	4	Enquire
6	CG435290AB	Heat Shield, Rear Silencer	CG435290AB Heat Shield, Rear Silencer	-	1	Enquire
7	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head 08MY From (V) A09110 IN STOCK	-	4	Enquire
7	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head 07MY IN STOCK	-	4	Enquire
8	4G439B184AB	Heat Shield, Fuel Tank, Auxiliary	4G439B184AB Heat Shield, Fuel Tank, Auxiliary	-	1	Enquire
9	4G439A032AF	HEATSHIELD - FUEL TANK	4G439A032AF HEATSHIELD - FUEL TANK	-	1	Enquire
10	702811	Rivet, Blind, 6.5	702811 Rivet, Blind, 6.5	-	8	Enquire
11	697286	Washer M6 Large OD IN STOCK	697286 Washer M6 Large OD IN STOCK	-	4	Enquire
