Aston Martin DB9 (2004-2012) - Body Rear End (Coupe)

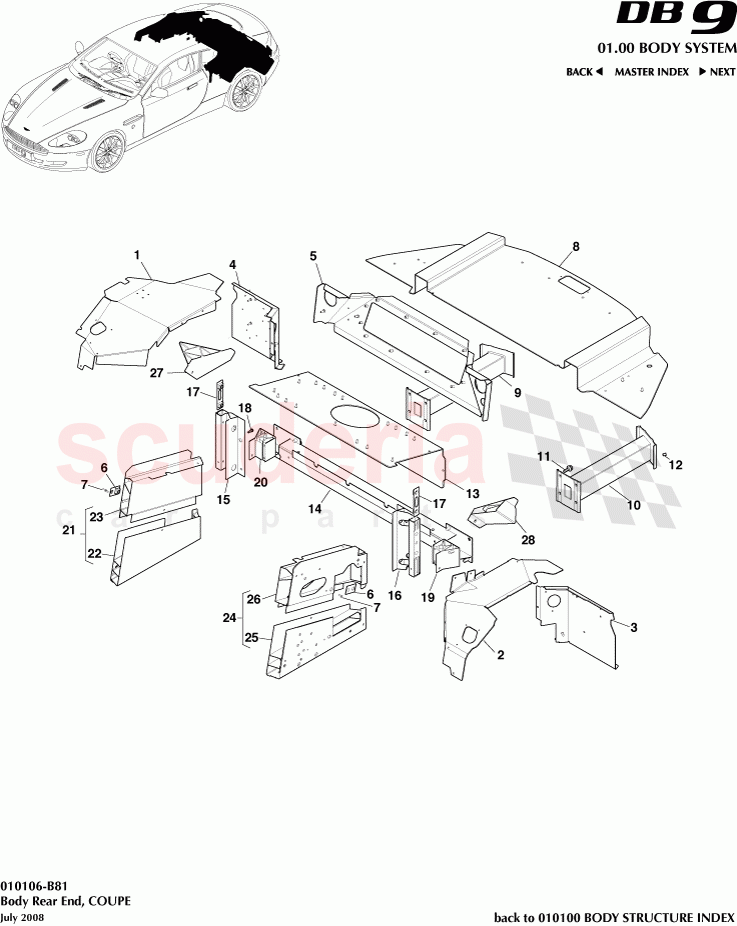

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	GO8G43C279A54GA	PNL QTR WHL/HS INR R	Enquire	To Order
	8G43C279A54GB	PANEL QUARTER WHEEL HOUSE INNER REAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P08G43C279A55AA	PNL QTR WHL/HS INR R	Enquire	To Order
	8G43C279A55GA	PANEL QUARTER WHEEL HOUSE INNER REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43C10514AC	Panel, Rear Floor Outer Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43C10515AA	Panel, Rear Floor Outer Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43C40334AA	Panel, upper back centre	Enquire	To Order
	8G43C40334GA	Panel, Upper Back, Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702804	Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In	Enquire	To Order
	GG4347124AA	PNL FLOOR TRUNK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4317F034BA	Absorber, Rear Bumper, RH	Enquire	To Order
	9G4317F034BA	Absorber, Rear Bumper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4317F035BA	Absorber, Rear Bumper, LH	Enquire	To Order
	9G4317F035BA	Absorber, Rear Bumper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43C278A71GB	Panel, fuel tank compartment, upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4340338AB	Reinforced lower back centre panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43101C84AA	BRACKER SIDE MEMBER REAR RIGHT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43101C85AA	BRACKET SIDE MEMBER REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG335A355AA	SUPPORT SUBFRAME REAR RIGHT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG335A356AA	SUPPORT SUBFRAME REAR LEFT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4310456AC	Member, rear floor side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GO8G43C10282AB	Member, rear floor side upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4310457AC	MEMBER REAR FLOOR SIDE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GO8G43C10283AB	Member, rear floor side upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GO8G43C513B96AA	Reinf, roof side rail, lower RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GO8G43C513B97AA	Reinf, roof side rail, lower LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	GO8G43C279A54GA	PNL QTR WHL/HS INR R	GO8G43C279A54GA PNL QTR WHL/HS INR R 07MY, Structural Cat. A only	-	1	Enquire
1	8G43C279A54GB	PANEL QUARTER WHEEL HOUSE INNER REAR RH	8G43C279A54GB PANEL QUARTER WHEEL HOUSE INNER REAR RH 08MY, Structural Cat. A only	-	1	Enquire
2	P08G43C279A55AA	PNL QTR WHL/HS INR R	P08G43C279A55AA PNL QTR WHL/HS INR R 07MY, Structural Cat. A only	-	1	Enquire
2	8G43C279A55GA	PANEL QUARTER WHEEL HOUSE INNER REAR LH	8G43C279A55GA PANEL QUARTER WHEEL HOUSE INNER REAR LH 08MY, Structural Cat. A only	-	1	Enquire
3	8G43C10514AC	Panel, Rear Floor Outer Side, RH	8G43C10514AC Panel, Rear Floor Outer Side, RH Structural Cat. A only	-	1	Enquire
4	8G43C10515AA	Panel, Rear Floor Outer Side, LH	8G43C10515AA Panel, Rear Floor Outer Side, LH Structural Cat. A only	-	1	Enquire
5	8G43C40334AA	Panel, upper back centre	8G43C40334AA Panel, upper back centre 07MY, Structural Cat. A only	-	1	Enquire
5	8G43C40334GA	Panel, Upper Back, Centre	8G43C40334GA Panel, Upper Back, Centre 08MY, Structural Cat. A only	-	1	Enquire
6	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front Structural Cat. A only	-	1	Enquire
8	702804	Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In	702804 Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In 06/07MY, Structural Cat. A only	-	1	Enquire
8	GG4347124AA	PNL FLOOR TRUNK	GG4347124AA PNL FLOOR TRUNK 08MY, Structural Cat. A only	-	1	Enquire
9	9G4317F034BA	Absorber, Rear Bumper, RH	9G4317F034BA Absorber, Rear Bumper, RH 06/07MY, Structural Cat. A only	-	1	Enquire
9	9G4317F034BA	Absorber, Rear Bumper, RH	9G4317F034BA Absorber, Rear Bumper, RH 08MY, Structural Cat. A only	-	1	Enquire
10	9G4317F035BA	Absorber, Rear Bumper, LH	9G4317F035BA Absorber, Rear Bumper, LH 06/07MY, Structural Cat. A only	-	1	Enquire
10	9G4317F035BA	Absorber, Rear Bumper, LH	9G4317F035BA Absorber, Rear Bumper, LH 08MY, Structural Cat. A only	-	1	Enquire
11	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder Structural Cat. A only	-	8	Enquire
12	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni Structural Cat. A only	-	4	Enquire
13	8G43C278A71GB	Panel, fuel tank compartment, upper	8G43C278A71GB Panel, fuel tank compartment, upper Structural Cat. A only	-	1	Enquire
14	8G4340338AB	Reinforced lower back centre panel	8G4340338AB Reinforced lower back centre panel Structural Cat. A only	-	2	Enquire
15	GOAG43101C84AA	BRACKER SIDE MEMBER REAR RIGHT HAND	GOAG43101C84AA BRACKER SIDE MEMBER REAR RIGHT HAND Structural Cat. A only	-	1	Enquire
16	GOAG43101C85AA	BRACKET SIDE MEMBER REAR LH	GOAG43101C85AA BRACKET SIDE MEMBER REAR LH Structural Cat. A only	-	1	Enquire
17	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	8G43334177AA Nutplate, M12, Rear Damper Mounting, Rear Structural Cat. A only	-	2	Enquire
18	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head Structural Cat. A only	-	4	Enquire
19	GOAG335A355AA	SUPPORT SUBFRAME REAR RIGHT HAND	GOAG335A355AA SUPPORT SUBFRAME REAR RIGHT HAND Structural Cat. A only	-	1	Enquire
20	GOAG335A356AA	SUPPORT SUBFRAME REAR LEFT HAND	GOAG335A356AA SUPPORT SUBFRAME REAR LEFT HAND Structural Cat. A only	-	1	Enquire
22	8G4310456AC	Member, rear floor side	8G4310456AC Member, rear floor side Structural Cat. A only	-	1	Enquire
23	GO8G43C10282AB	Member, rear floor side upper	GO8G43C10282AB Member, rear floor side upper Structural Cat. A only	-	1	Enquire
25	8G4310457AC	MEMBER REAR FLOOR SIDE LH	8G4310457AC MEMBER REAR FLOOR SIDE LH Structural Cat. A only	-	1	Enquire
26	GO8G43C10283AB	Member, rear floor side upper	GO8G43C10283AB Member, rear floor side upper Structural Cat. A only	-	1	Enquire
27	GO8G43C513B96AA	Reinf, roof side rail, lower RH	GO8G43C513B96AA Reinf, roof side rail, lower RH Structural Cat. A only	-	1	Enquire
28	GO8G43C513B97AA	Reinf, roof side rail, lower LH	GO8G43C513B97AA Reinf, roof side rail, lower LH Structural Cat. A only	-	1	Enquire
