Lock Set And Keys

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Lock Set and Keys

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D336510073 Door Lock Set & 1 Key Enquire To Order
4G436511081 LOCK SET & 2 KEYS Enquire To Order
HY53E804349AA M6 X 14 SCREW HEX HD Enquire To Order
Photo Part No Description Price (each) Stock
4G43F21990BFN DR LOCK RH-TO NUMBER Enquire To Order
Photo Part No Description Price (each) Stock
4G43F21991BFN DR LOCK LH-TO NUMBER Enquire To Order
Photo Part No Description Price (each) Stock
4G4343183AB Extended Nut, Key Cylinder Fastening Enquire To Order
Photo Part No Description Price (each) Stock
8D33654024AA/N KEY ASSY-TO NUMBER DBS Enquire To Order
8D33654024AA/B DBS KEY ASSY BLANK Enquire To Order
4G43654024AA/N KEY ASSY-TO NUMBER BLACK Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G432510226N IGN BARREL-TO NUMBER Enquire To Order
View All

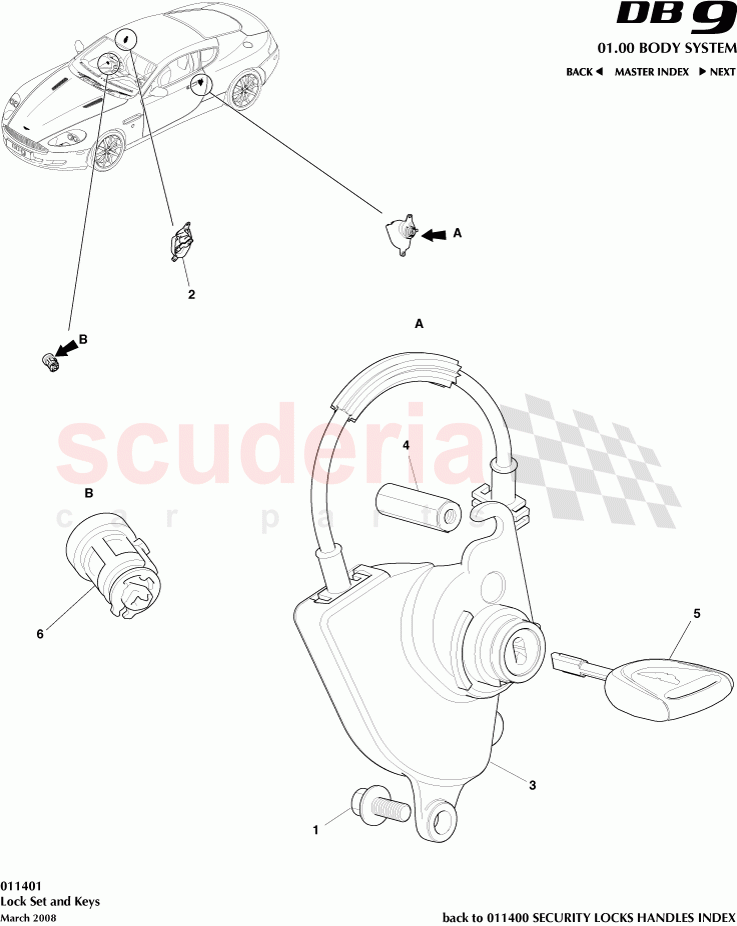

Lock Set and Keys of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D336510073
Door Lock Set & 1 Key
09MY 		- 1 Enquire
1 4G436511081
LOCK SET & 2 KEYS 		- 1 Enquire
1 HY53E804349AA
M6 X 14 SCREW HEX HD 		- 4 Enquire
2 4G43F21990BFN
DR LOCK RH-TO NUMBER 		- 1 Enquire
3 4G43F21991BFN
DR LOCK LH-TO NUMBER 		- 1 Enquire
4 4G4343183AB
Extended Nut, Key Cylinder Fastening 		- 2 Enquire
5 8D33654024AA/N
KEY ASSY-TO NUMBER DBS
09MY 		- 3 Enquire
5 8D33654024AA/B
DBS KEY ASSY BLANK
09MY 		- 3 Enquire
5 4G43654024AA/N
KEY ASSY-TO NUMBER BLACK 		- 3 Enquire
5 4G43654024AA/B
KEY ASSY-BLANK 		- 3 Enquire
6 4G432510226N
IGN BARREL-TO NUMBER 		- 1 Enquire
