Volante Top Assembly of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Volante Top Assembly

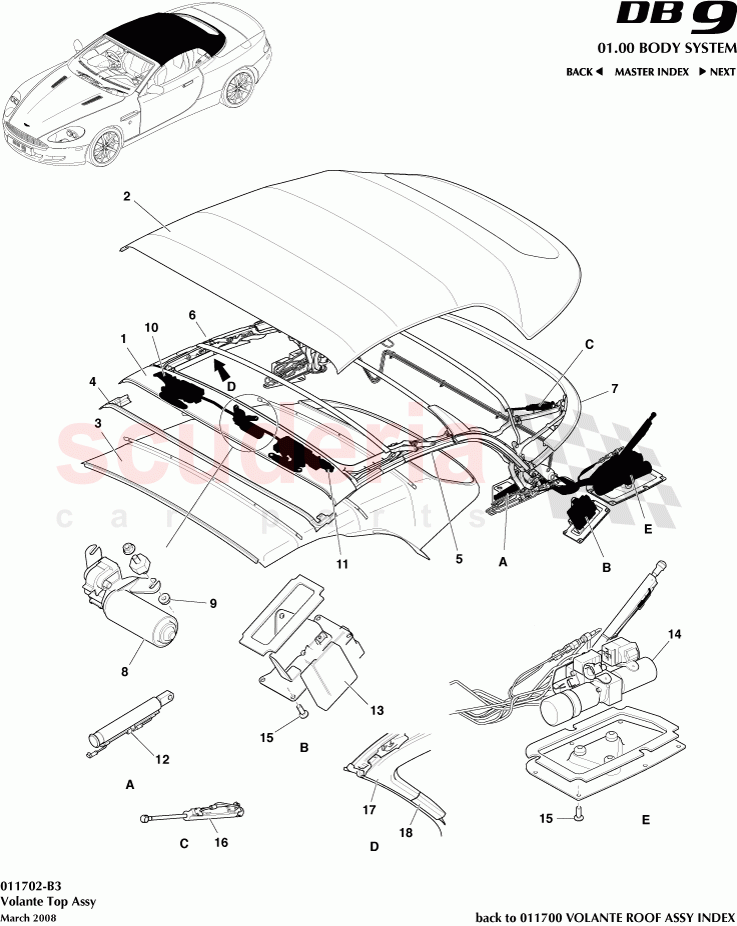

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G4370355AA	Frame, folding top	Enquire	To Order
	4G4370355AA	Frame, folding top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431005038AAPK	SPRING CLIP-PK OF 4	Enquire	To Order
	4G4374480AA	Rivet, Blind	Enquire	To Order
	9G4370351DA	CANOPY COVER CG WESTMINSTER GREEN KIT	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9G4370352AB	Inner Lining, Obsidian Black	Enquire	To Order
	9G4370352DB	INNER LINING CG TAILORS GREY	Enquire	To Order
	9G4370352CB	INNER LINING CG MOON SHADOW	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G43L51210AB	FRT SL SPR PRT ASY K	Enquire	To Order
	4G4378380AA	SELF CUTTING SCREW FH	Enquire	To Order
	4G431001991AA	Nut & Washer, M5	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G43L51220AA	MIDDLE SEAL SPARE PART LH ASSY KIT	Enquire	To Order
	4G431001991AA	Nut & Washer, M5	Enquire	To Order
	4G4375999AA	SHIM WASHER SEAL CARRIER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G43L51221AA	MIDDLE SEAL SPARE PART RH ASSY KID	Enquire	To Order
	4G431001991AA	Nut & Washer, M5	Enquire	To Order
	4G4375999AA	SHIM WASHER SEAL CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4374480AA	Rivet, Blind	Enquire	To Order
	4G43L51230AB	RR SL SPR PRT ASY KT	Enquire	To Order
	4G43L51230AB	RR SL SPR PRT ASY KT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L51240AA	CONVERTIBLE ROOF LATCH MOTOR KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4369832AA	HEXAGON NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L51270AA	FULLY AUTOMOTIVE LATCHING RH KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L51260AA	FULLY AUTOMATIC LATCHING LH KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4350638AB	MAIN HYDRAULIC CYLINDER RIGHT HAND	Enquire	To Order
	4G4350639AC	MAIN HYDRAULIC CYLINDER LEFT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43L53085AE	Bracket - Convertible Roof Module	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4353390AB	HYDRAULIC MAIN CYLINDER RIGHT HAND	Enquire	To Order
	9G4353391AB	Hydraulic Hose, Main Cylinder, LH	Enquire	To Order
	4G439G803AD	PUMP ASSY ROOF HYDRAULIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704701	Screw, M6 x 20, Socket Head Button	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43539A78AA	Cylinder, Tension Bow, RH	Enquire	To Order
	4G43539A79AA	Cylinder, Tension Bow, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439310615	HEADER TRIM KIT DB9 VOLANTE MOONSHADOW	Enquire	To Order
	4G439310616	HEADER TRIM KIT DB9 VOLANTE TAILORS GREY	Enquire	To Order
	4G439310617	HEADER TRIM KIT DB9 VOLANTE-BLACK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4303514CA	TRIM COVER CTRL 2 RH MOONSH	Enquire	To Order
	4G4303515CA	TRIM COVER CTRL 2 LH MOONSH	Enquire	To Order
	4G4303514DA	TRIM COVER CTRL 2 RH TAILOR GR	Enquire	To Order

...and 39 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G4376501B10AB	Top assy folding, complete, bitter chocolate	9G4376501B10AB Top assy folding, complete, bitter chocolate 09MY	-	1	Enquire
-	ED3376501B00CA	TOP ASSY FOLDING	ED3376501B00CA TOP ASSY FOLDING 07MY	-	1	Enquire
-	8G4376501B00AA	Top assy folding, complete	8G4376501B00AA Top assy folding, complete 08MY	-	1	Enquire
-	ED3376501B00CA	TOP ASSY FOLDING	ED3376501B00CA TOP ASSY FOLDING 09MY	-	1	Enquire
1	9G4370355AA	Frame, folding top	9G4370355AA Frame, folding top 09MY	-	1	Enquire
1	4G4370355AA	Frame, folding top	4G4370355AA Frame, folding top	-	1	Enquire
2	4G431005038AAPK	SPRING CLIP-PK OF 4	4G431005038AAPK SPRING CLIP-PK OF 4 Per canopy cover kit	-	4	Enquire
2	4G4374480AA	Rivet, Blind	4G4374480AA Rivet, Blind Per canopy cover kit	-	8	Enquire
2	9G4370351DA	CANOPY COVER CG WESTMINSTER GREEN KIT	9G4370351DA CANOPY COVER CG WESTMINSTER GREEN KIT Westminster green	-	1	Enquire
2	9G4370351CA	CANOPY COVER CG JAVA KIT	9G4370351CA CANOPY COVER CG JAVA KIT Java/ sandstone	-	1	Enquire
2	9G4370351BA	Canopy Cover Kit, Atlantic Blue	9G4370351BA Canopy Cover Kit, Atlantic Blue Atlantic blue	-	1	Enquire
2	9G4370351GA	CANOPY COVER CG SINGED BROWN KIT	9G4370351GA CANOPY COVER CG SINGED BROWN KIT Singed brown	-	1	Enquire
2	9G4370351EA	CANOPY COVER CG TITAN GREY KIT	9G4370351EA CANOPY COVER CG TITAN GREY KIT Titan grey	-	1	Enquire
2	9G4370351FA	CANOPY COVER CG BURGUNDY KIT	9G4370351FA CANOPY COVER CG BURGUNDY KIT Burgundy	-	1	Enquire
2	9G4370351AA	CANOPY COVER CG BLACK KIT	9G4370351AA CANOPY COVER CG BLACK KIT Black	-	1	Enquire
3	9G4370352AB	Inner Lining, Obsidian Black	9G4370352AB Inner Lining, Obsidian Black Obsidian black, 09MY	-	1	Enquire
3	9G4370352DB	INNER LINING CG TAILORS GREY	9G4370352DB INNER LINING CG TAILORS GREY Tailors grey, 09MY	-	1	Enquire
3	9G4370352CB	INNER LINING CG MOON SHADOW	9G4370352CB INNER LINING CG MOON SHADOW Moon shadow, 09	-	1	Enquire
3	4G4370352AA	INNER LINING CG OBSIDIAN	4G4370352AA INNER LINING CG OBSIDIAN Obsidian black	-	1	Enquire
3	4G4370352DA	INNER LINING CG TAILOR GR	4G4370352DA INNER LINING CG TAILOR GR Tailors grey	-	1	Enquire
3	9G4370352BB	INNER LINING CG IVORY	9G4370352BB INNER LINING CG IVORY Ivory, 09MY	-	1	Enquire
3	4G4370352CA	INNER LINING CG MOONSH	4G4370352CA INNER LINING CG MOONSH Moon shadow	-	1	Enquire
3	9G4370352EB	Inner Lining, New Light Tan	9G4370352EB Inner Lining, New Light Tan Tan 09MY	-	1	Enquire
3	4G4370352BA	INNER LINING CG IVORY	4G4370352BA INNER LINING CG IVORY Ivory	-	1	Enquire
4	4G43L51210AB	FRT SL SPR PRT ASY K	4G43L51210AB FRT SL SPR PRT ASY K per kit	-	1	Enquire
4	4G4378380AA	SELF CUTTING SCREW FH	4G4378380AA SELF CUTTING SCREW FH per kit	-	2	Enquire
4	4G431001991AA	Nut & Washer, M5	4G431001991AA Nut & Washer, M5 per kit	-	4	Enquire
4	4G4375999AA	SHIM WASHER SEAL CARRIER	4G4375999AA SHIM WASHER SEAL CARRIER per kit	-	6	Enquire
4	4G431004355AA	SELF CUTTING SCREW FH	4G431004355AA SELF CUTTING SCREW FH per kit	-	8	Enquire
4	4G43L51210AB	FRT SL SPR PRT ASY K	4G43L51210AB FRT SL SPR PRT ASY K	-	1	Enquire
5	4G43L51220AA	MIDDLE SEAL SPARE PART LH ASSY KIT	4G43L51220AA MIDDLE SEAL SPARE PART LH ASSY KIT per kit	-	1	Enquire
5	4G431001991AA	Nut & Washer, M5	4G431001991AA Nut & Washer, M5 per kit	-	4	Enquire
5	4G4375999AA	SHIM WASHER SEAL CARRIER	4G4375999AA SHIM WASHER SEAL CARRIER per kit	-	6	Enquire
5	4G43L51220AA	MIDDLE SEAL SPARE PART LH ASSY KIT	4G43L51220AA MIDDLE SEAL SPARE PART LH ASSY KIT	-	1	Enquire
6	4G43L51221AA	MIDDLE SEAL SPARE PART RH ASSY KID	4G43L51221AA MIDDLE SEAL SPARE PART RH ASSY KID per kit	-	1	Enquire
6	4G431001991AA	Nut & Washer, M5	4G431001991AA Nut & Washer, M5 per kit	-	4	Enquire
6	4G4375999AA	SHIM WASHER SEAL CARRIER	4G4375999AA SHIM WASHER SEAL CARRIER per kit	-	6	Enquire
7	4G4374480AA	Rivet, Blind	4G4374480AA Rivet, Blind Part of 4G43-L51230-AA	-	8	Enquire
7	4G43L51230AB	RR SL SPR PRT ASY KT	4G43L51230AB RR SL SPR PRT ASY KT Tension Bow	-	1	Enquire
7	4G43L51230AB	RR SL SPR PRT ASY KT	4G43L51230AB RR SL SPR PRT ASY KT	-	1	Enquire
8	4G43L51240AA	CONVERTIBLE ROOF LATCH MOTOR KIT	4G43L51240AA CONVERTIBLE ROOF LATCH MOTOR KIT	-	1	Enquire
9	4G4369832AA	HEXAGON NUT M6	4G4369832AA HEXAGON NUT M6 per kit	-	8	Enquire
10	4G43L51270AA	FULLY AUTOMOTIVE LATCHING RH KIT	4G43L51270AA FULLY AUTOMOTIVE LATCHING RH KIT	-	1	Enquire
11	4G43L51260AA	FULLY AUTOMATIC LATCHING LH KIT	4G43L51260AA FULLY AUTOMATIC LATCHING LH KIT per kit	-	1	Enquire
12	4G4350638AB	MAIN HYDRAULIC CYLINDER RIGHT HAND	4G4350638AB MAIN HYDRAULIC CYLINDER RIGHT HAND Main Actuator	-	2	Enquire
12	4G4350639AC	MAIN HYDRAULIC CYLINDER LEFT HAND	4G4350639AC MAIN HYDRAULIC CYLINDER LEFT HAND Main Actuator	-	2	Enquire
13	9G43L53085AE	Bracket - Convertible Roof Module	9G43L53085AE Bracket - Convertible Roof Module	-	1	Enquire
14	9G4353390AB	HYDRAULIC MAIN CYLINDER RIGHT HAND	9G4353390AB HYDRAULIC MAIN CYLINDER RIGHT HAND NSS part of 4G43-9G803-AD	-	1	Enquire
14	9G4353391AB	Hydraulic Hose, Main Cylinder, LH	9G4353391AB Hydraulic Hose, Main Cylinder, LH NSS part of 4G43-9G803-AD	-	1	Enquire
14	4G439G803AD	PUMP ASSY ROOF HYDRAULIC	4G439G803AD PUMP ASSY ROOF HYDRAULIC	-	1	Enquire
15	704701	Screw, M6 x 20, Socket Head Button	704701 Screw, M6 x 20, Socket Head Button	-	9	Enquire
16	4G43539A78AA	Cylinder, Tension Bow, RH	4G43539A78AA Cylinder, Tension Bow, RH Main Tensbow	-	1	Enquire
16	4G43539A79AA	Cylinder, Tension Bow, LH	4G43539A79AA Cylinder, Tension Bow, LH Main Tensbow	-	1	Enquire
17	4G439310615	HEADER TRIM KIT DB9 VOLANTE MOONSHADOW	4G439310615 HEADER TRIM KIT DB9 VOLANTE MOONSHADOW Moon shadow	-	1	Enquire
17	4G439310616	HEADER TRIM KIT DB9 VOLANTE TAILORS GREY	4G439310616 HEADER TRIM KIT DB9 VOLANTE TAILORS GREY Tailor grey	-	1	Enquire
17	4G439310617	HEADER TRIM KIT DB9 VOLANTE-BLACK	4G439310617 HEADER TRIM KIT DB9 VOLANTE-BLACK Black	-	1	Enquire
17	4G439310614	HEADER TRIM KIT DB9 VOLANTE-IVORY	4G439310614 HEADER TRIM KIT DB9 VOLANTE-IVORY Ivory	-	1	Enquire
18	4G4303514CA	TRIM COVER CTRL 2 RH MOONSH	4G4303514CA TRIM COVER CTRL 2 RH MOONSH Moon shadow	-	1	Enquire
18	4G4303515CA	TRIM COVER CTRL 2 LH MOONSH	4G4303515CA TRIM COVER CTRL 2 LH MOONSH Moon shadow	-	1	Enquire
18	4G4303514DA	TRIM COVER CTRL 2 RH TAILOR GR	4G4303514DA TRIM COVER CTRL 2 RH TAILOR GR Tailor grey	-	1	Enquire
18	4G4303515DA	TRIM COVER CTRL 2 LH TAILOR GR	4G4303515DA TRIM COVER CTRL 2 LH TAILOR GR Tailor grey	-	1	Enquire
18	4G439310615	HEADER TRIM KIT DB9 VOLANTE MOONSHADOW	4G439310615 HEADER TRIM KIT DB9 VOLANTE MOONSHADOW moonshadow	-	1	Enquire
18	4G4303514AA	TRIM COVER CTRL 2 RH BLACK	4G4303514AA TRIM COVER CTRL 2 RH BLACK Black	-	1	Enquire
18	4G4303515AA	TRIM COVER CTRL 2 LH BLACK	4G4303515AA TRIM COVER CTRL 2 LH BLACK Black	-	1	Enquire
18	4G4303514BA	TRIM COVER CTRL 2 RH IVORY	4G4303514BA TRIM COVER CTRL 2 RH IVORY Ivory	-	1	Enquire
18	4G4303515BA	TRIM COVER CTRL 2 LH IVORY	4G4303515BA TRIM COVER CTRL 2 LH IVORY Ivory	-	1	Enquire
18	4G439310614	HEADER TRIM KIT DB9 VOLANTE-IVORY	4G439310614 HEADER TRIM KIT DB9 VOLANTE-IVORY ivory	-	1	Enquire
18	4G439310617	HEADER TRIM KIT DB9 VOLANTE-BLACK	4G439310617 HEADER TRIM KIT DB9 VOLANTE-BLACK black	-	1	Enquire
18	9G43F502D41AA	Belt, Tension CG LH, includes control strap	9G43F502D41AA Belt, Tension CG LH, includes control strap 09MY	-	1	Enquire
18	9G43F502D42AA	Belt, Tension CG RH, includes control strap	9G43F502D42AA Belt, Tension CG RH, includes control strap 09MY	-	1	Enquire
18	4G439310616	HEADER TRIM KIT DB9 VOLANTE TAILORS GREY	4G439310616 HEADER TRIM KIT DB9 VOLANTE TAILORS GREY grey	-	1	Enquire
18	4G439310506	ARAL VITAMOL ZH-M (64037) HOOD FLUID 1ltr PLASTIC BOTTLE	4G439310506 ARAL VITAMOL ZH-M (64037) HOOD FLUID 1ltr PLASTIC BOTTLE	-	-	Enquire
18	4G43F502D41AA	TENSION BELT CG LH	4G43F502D41AA TENSION BELT CG LH	-	1	Enquire
18	4G43F502D42AA	TENSION BELT CG RH	4G43F502D42AA TENSION BELT CG RH	-	1	Enquire
18	4G433710685	Harness, Roof Hydraulics, LH	4G433710685 Harness, Roof Hydraulics, LH	-	1	Enquire
18	4G433710686	Harness, Roof Hydraulics, RH	4G433710686 Harness, Roof Hydraulics, RH	-	1	Enquire
18	4G43765013AF	LATCH BRKT HARNESS	4G43765013AF LATCH BRKT HARNESS	-	1	Enquire
18	4G431004355AA	SELF CUTTING SCREW FH	4G431004355AA SELF CUTTING SCREW FH	-	1	Enquire
18	4G43765010BA	STRIKER HEADER RH	4G43765010BA STRIKER HEADER RH	-	1	Enquire
18	4G43765011BA	STRIKER HEADER LH	4G43765011BA STRIKER HEADER LH	-	1	Enquire
18	4G4350641AA	OVER CENTER PIN	4G4350641AA OVER CENTER PIN	-	1	Enquire
18	4G431012525AA	Flex Shaft, LH	4G431012525AA Flex Shaft, LH	-	1	Enquire
18	4G431012524AA	Flex Shaft, RH	4G431012524AA Flex Shaft, RH	-	1	Enquire
18	4G431013271AAPK	SCREW-PIVOT HOOK (8)	4G431013271AAPK SCREW-PIVOT HOOK (8)	-	1	Enquire
18	4G431003889AA	Screw, Trim Cover Bracket	4G431003889AA Screw, Trim Cover Bracket	-	16	Enquire
18	4G4310D916AA	Control Strap, NSS part of tension belt	4G4310D916AA Control Strap, NSS part of tension belt	-	2	Enquire
18	4G4378380AA	SELF CUTTING SCREW FH	4G4378380AA SELF CUTTING SCREW FH	-	2	Enquire
18	4G431003920AA	Screw, Self Cutting	4G431003920AA Screw, Self Cutting	-	2	Enquire
18	4G43A502D41AA	TENSION CABLE CG	4G43A502D41AA TENSION CABLE CG	-	2	Enquire
18	4G431004048AA	Screw, M6, Pan Head	4G431004048AA Screw, M6, Pan Head	-	2	Enquire
18	4G4368326AA	Screw, M5, Trim Cover	4G4368326AA Screw, M5, Trim Cover	-	4	Enquire
18	4G431001991AA	Nut & Washer, M5	4G431001991AA Nut & Washer, M5	-	4	Enquire
18	4G431005038AAPK	SPRING CLIP-PK OF 4	4G431005038AAPK SPRING CLIP-PK OF 4	-	4	Enquire
18	4G431013272AA	WHITE CLIPS	4G431013272AA WHITE CLIPS	-	6	Enquire
18	4G4375999AA	SHIM WASHER SEAL CARRIER	4G4375999AA SHIM WASHER SEAL CARRIER	-	6	Enquire
18	4G4369832AA	HEXAGON NUT M6	4G4369832AA HEXAGON NUT M6	-	6	Enquire
18	4G431016033AA	Screw, Self Cutting	4G431016033AA Screw, Self Cutting	-	8	Enquire
18	4G43515A50AA	Bracket, Trim Cover	4G43515A50AA Bracket, Trim Cover	-	8	Enquire
18	4G4374480AA	Rivet, Blind	4G4374480AA Rivet, Blind	-	8	Enquire
