Body Rear End (Volante) of Aston Martin Aston Martin DB9 (2004-2012)

View All

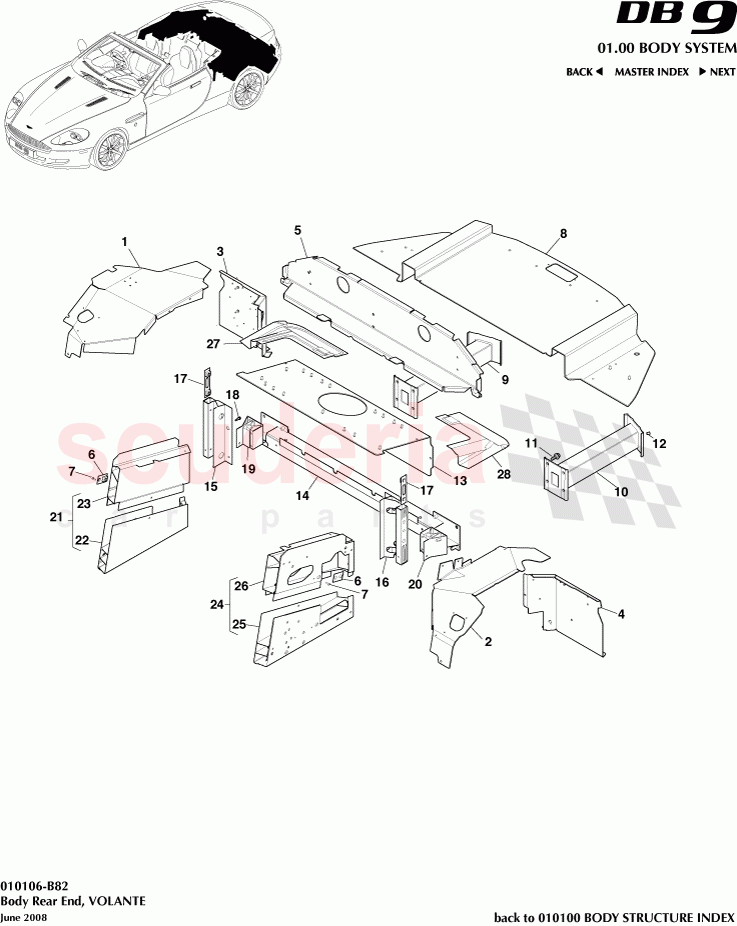

Aston Martin DB9 (2004-2012) - Body Rear End (Volante)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G43L279A54AA	PANEL QUARTER WHEEL HOUSE INNER REAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43L279A55AB	PANEL QUARTER WHEEL HOUSE INNER REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43L10514AD	PANEL REAR FLOOR SIDE OUTER RIGHT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43L10515AD	Panel, Rear Floor Side Outer LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43L40334AA	Panel, Upper Back Centre	Enquire	To Order
	9G43L40334GE	Panel, Upper Back, Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GG4347124AA	PNL FLOOR TRUNK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4317F034BA	Absorber, Rear Bumper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4317F035BA	Absorber, Rear Bumper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43C278A71GB	Panel, fuel tank compartment, upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4340338AB	Reinforced lower back centre panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43101C84AA	BRACKER SIDE MEMBER REAR RIGHT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43101C85AA	BRACKET SIDE MEMBER REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335A355AB	Support, sub frame rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335A356AB	Support, sub frame rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4310456AC	Member, rear floor side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GO8G43C10282AB	Member, rear floor side upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4310457AC	MEMBER REAR FLOOR SIDE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GO8G43C10283AB	Member, rear floor side upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4324442AB	CAP CENTRE BODY PILLAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4324443AB	CAP CENTRE BODY PILLAR LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G43L279A54AA	PANEL QUARTER WHEEL HOUSE INNER REAR RH	8G43L279A54AA PANEL QUARTER WHEEL HOUSE INNER REAR RH Structural Cat. A only	-	1	Enquire
2	8G43L279A55AB	PANEL QUARTER WHEEL HOUSE INNER REAR LH	8G43L279A55AB PANEL QUARTER WHEEL HOUSE INNER REAR LH Structural Cat. A only	-	1	Enquire
3	9G43L10514AD	PANEL REAR FLOOR SIDE OUTER RIGHT HAND	9G43L10514AD PANEL REAR FLOOR SIDE OUTER RIGHT HAND Structural Cat. A only	-	1	Enquire
4	9G43L10515AD	Panel, Rear Floor Side Outer LH	9G43L10515AD Panel, Rear Floor Side Outer LH Structural Cat. A only	-	1	Enquire
5	8G43L40334AA	Panel, Upper Back Centre	8G43L40334AA Panel, Upper Back Centre 07MY, Structural Cat. A only	-	1	Enquire
5	9G43L40334GE	Panel, Upper Back, Centre	9G43L40334GE Panel, Upper Back, Centre 08MY, Structural Cat. A only	-	1	Enquire
6	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front Structural Cat. A only	-	1	Enquire
8	GG4347124AA	PNL FLOOR TRUNK	GG4347124AA PNL FLOOR TRUNK Structural Cat. A only	-	1	Enquire
9	9G4317F034BA	Absorber, Rear Bumper, RH	9G4317F034BA Absorber, Rear Bumper, RH Structural Cat. A only	-	1	Enquire
10	9G4317F035BA	Absorber, Rear Bumper, LH	9G4317F035BA Absorber, Rear Bumper, LH Structural Cat. A only	-	1	Enquire
11	703120	Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	703120 Screw M8-1.25-90 Hex Socket Head Shoulder Structural Cat. A only IN STOCK	-	8	Enquire
12	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni Structural Cat. A only	-	4	Enquire
13	8G43C278A71GB	Panel, fuel tank compartment, upper	8G43C278A71GB Panel, fuel tank compartment, upper Structural Cat. A only	-	1	Enquire
14	8G4340338AB	Reinforced lower back centre panel	8G4340338AB Reinforced lower back centre panel Structural Cat. A only	-	2	Enquire
15	GOAG43101C84AA	BRACKER SIDE MEMBER REAR RIGHT HAND	GOAG43101C84AA BRACKER SIDE MEMBER REAR RIGHT HAND Structural Cat. A only	-	1	Enquire
16	GOAG43101C85AA	BRACKET SIDE MEMBER REAR LH	GOAG43101C85AA BRACKET SIDE MEMBER REAR LH Structural Cat. A only	-	1	Enquire
17	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	8G43334177AA Nutplate, M12, Rear Damper Mounting, Rear Structural Cat. A only	-	2	Enquire
18	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head Structural Cat. A only	-	4	Enquire
19	6G335A355AB	Support, sub frame rear, RH	6G335A355AB Support, sub frame rear, RH Structural Cat. A only	-	1	Enquire
20	6G335A356AB	Support, sub frame rear, LH	6G335A356AB Support, sub frame rear, LH Structural Cat. A only	-	1	Enquire
22	8G4310456AC	Member, rear floor side	8G4310456AC Member, rear floor side Structural Cat. A only	-	1	Enquire
23	GO8G43C10282AB	Member, rear floor side upper	GO8G43C10282AB Member, rear floor side upper Structural Cat. A only	-	1	Enquire
25	8G4310457AC	MEMBER REAR FLOOR SIDE LH	8G4310457AC MEMBER REAR FLOOR SIDE LH Structural Cat. A only	-	1	Enquire
26	GO8G43C10283AB	Member, rear floor side upper	GO8G43C10283AB Member, rear floor side upper Structural Cat. A only	-	1	Enquire
27	4G4324442AB	CAP CENTRE BODY PILLAR RH	4G4324442AB CAP CENTRE BODY PILLAR RH Structural Cat. A only	-	1	Enquire
28	4G4324443AB	CAP CENTRE BODY PILLAR LH	4G4324443AB CAP CENTRE BODY PILLAR LH Structural Cat. A only	-	1	Enquire
