Front Wing Assembly of Aston Martin Aston Martin DB9 (2004-2012)

View All

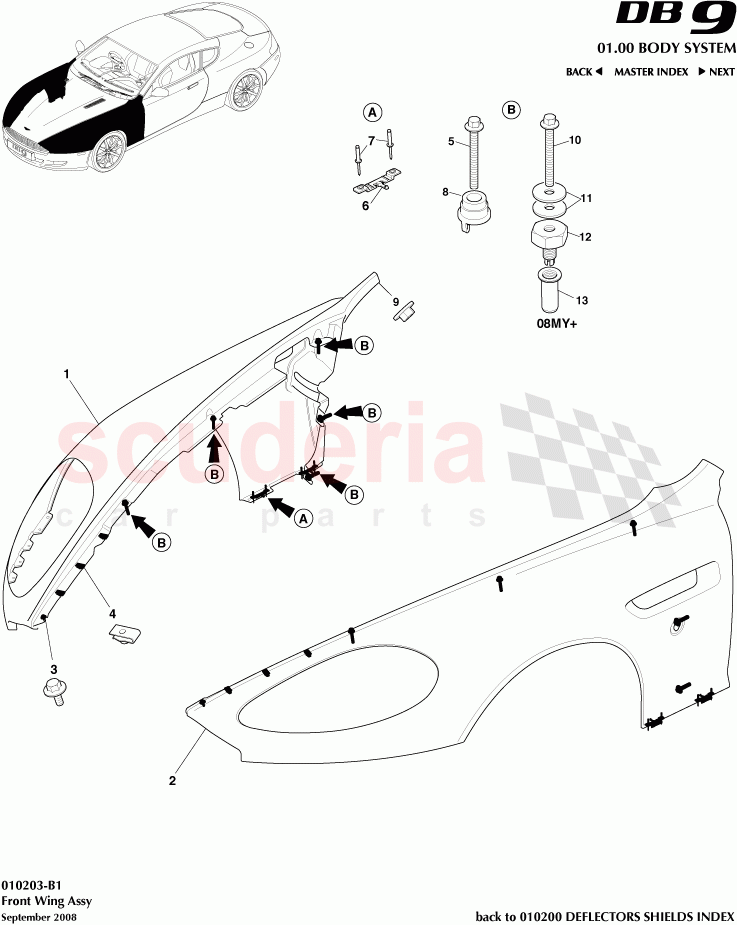

Aston Martin DB9 (2004-2012) - Front Wing Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G4316005AS	PANEL ASSY - FRONT FENDER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

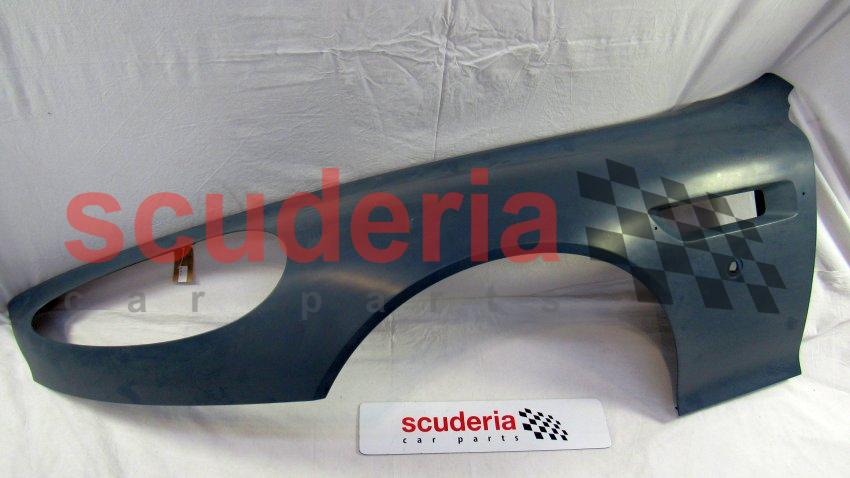

	4G4316006AS	Panel Assy - Front Fender LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703196PK	BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43023A50BBPK	External Fender Clip (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701580PK	Rivet Dome Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C04545A	Nut M8, tolerance	Enquire	To Order
	4G432292AA	Spacer button	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703196PK	BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43E826280BAPK	Nut M6- Flexax Tolerance (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4316005AS	PANEL ASSY - FRONT FENDER RH	4G4316005AS PANEL ASSY - FRONT FENDER RH	-	1	Enquire
2	4G4316006AS	Panel Assy - Front Fender LH	4G4316006AS Panel Assy - Front Fender LH	-	1	Enquire
3	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	12	Enquire
4	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	703740 NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	-	6	Enquire
5	703196PK	BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	703196PK BOLT M6 x 55 HEX FLANGE HEAD (PACK 10) 07MY	-	6	Enquire
6	4G43023A50BBPK	External Fender Clip (Pack of 5)	4G43023A50BBPK External Fender Clip (Pack of 5)	-	8	Enquire
7	701580PK	Rivet Dome Head (Pack of 20)	701580PK Rivet Dome Head (Pack of 20)	-	8	Enquire
8	4G43C04545A	Nut M8, tolerance	4G43C04545A Nut M8, tolerance 07MY	-	10	Enquire
8	4G432292AA	Spacer button	4G432292AA Spacer button	-	2	Enquire
9	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB	-	2	Enquire
10	703196PK	BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	703196PK BOLT M6 x 55 HEX FLANGE HEAD (PACK 10) 08MY	-	10	Enquire
11	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10)	-	20	Enquire
12	4G43E826280BAPK	Nut M6- Flexax Tolerance (Pack of 5)	4G43E826280BAPK Nut M6- Flexax Tolerance (Pack of 5) 08MY	-	10	Enquire
13	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	-	30	Enquire
