Name: Rear Frame Sub System
Rating: 5.0 (1 reviews)

View All

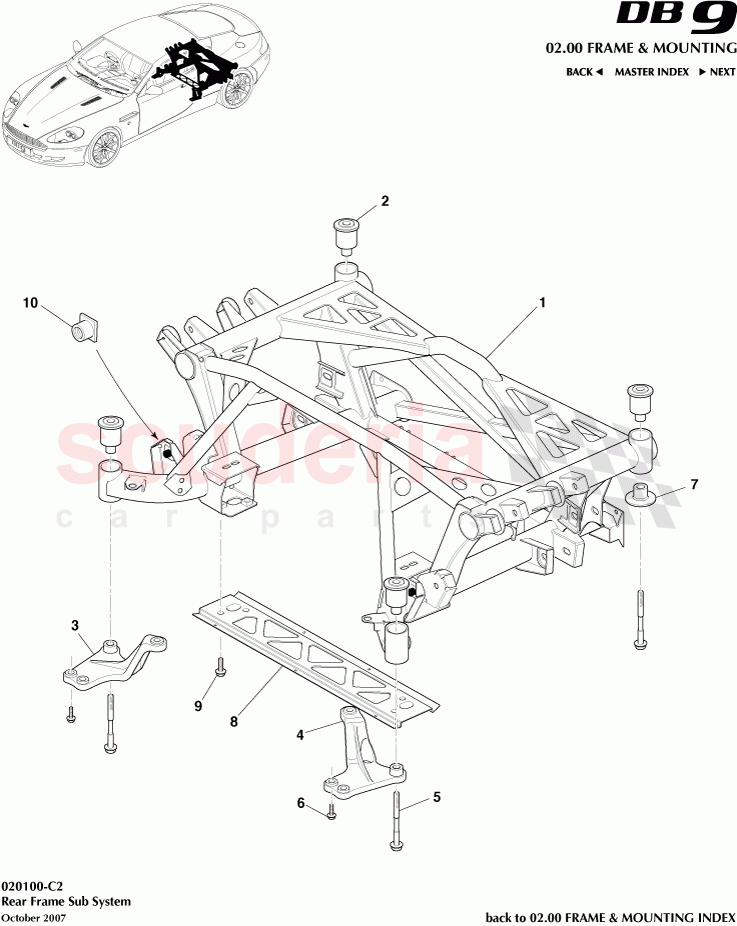

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G435R003AB	REAR SUBFRAME	$57,423.48	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435D006AA	REAR SUBFRAME BUSHES	$26.42	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435C365BA	REAR SUBFRAME -FRONT MOUNTING DUCKS FOOT RH	$91.93	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435C365AA	REAR SUBFRAME -FRONT MOUNTING DUCKS FOOT LH	$91.93	To Order

Photo	Part No	Description	Price (each)	Stock
	703146	BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE	$15.69	To Order
	703148	BOLT M14x230 HEX FLANGE CONE CHROME FREE	$14.32	To Order
	703146	BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE	$15.69	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	$24.19	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435A364AA	REAR SUBFRAME SAFETY WASHER	$27.28	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432210209	RR TRANSAXLE X MEMBR	$364.90	To Order

Photo	Part No	Description	Price (each)	Stock
	702131	NUT M12 CAPTIVE SUKOSIM	$1.28	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	9G435R003AB	REAR SUBFRAME	9G435R003AB REAR SUBFRAME 07MY	$57,423.48	1
1	9G435R003AB	REAR SUBFRAME	9G435R003AB REAR SUBFRAME 08MY From (V) A09110	$57,423.48	1
2	4G435D006AA	REAR SUBFRAME BUSHES	4G435D006AA REAR SUBFRAME BUSHES	$26.42	4
3	4G435C365BA	REAR SUBFRAME -FRONT MOUNTING DUCKS FOOT RH	4G435C365BA REAR SUBFRAME -FRONT MOUNTING DUCKS FOOT RH	$91.93	1
4	4G435C365AA	REAR SUBFRAME -FRONT MOUNTING DUCKS FOOT LH	4G435C365AA REAR SUBFRAME -FRONT MOUNTING DUCKS FOOT LH	$91.93	1
5	703146	BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE	703146 BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE 08MY From (V) A09110	$15.69	2
5	703148	BOLT M14x230 HEX FLANGE CONE CHROME FREE	703148 BOLT M14x230 HEX FLANGE CONE CHROME FREE 08MY From (V) A09110	$14.32	2
5	703146	BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE	703146 BOLT M14 x 128.5 HEX FLANGE D C010 CHROME FREE 07MY	$15.69	2
5	703148	BOLT M14x230 HEX FLANGE CONE CHROME FREE	703148 BOLT M14x230 HEX FLANGE CONE CHROME FREE 07MY	$14.32	2
6	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	$24.19	6
7	4G435A364AA	REAR SUBFRAME SAFETY WASHER	4G435A364AA REAR SUBFRAME SAFETY WASHER	$27.28	2
8	4G432210209	RR TRANSAXLE X MEMBR	4G432210209 RR TRANSAXLE X MEMBR	$364.90	1
10	702131	NUT M12 CAPTIVE SUKOSIM	702131 NUT M12 CAPTIVE SUKOSIM	$1.28	2
