Trunk lid (Volante) of Aston Martin Aston Martin DB9 (2004-2012)

View All

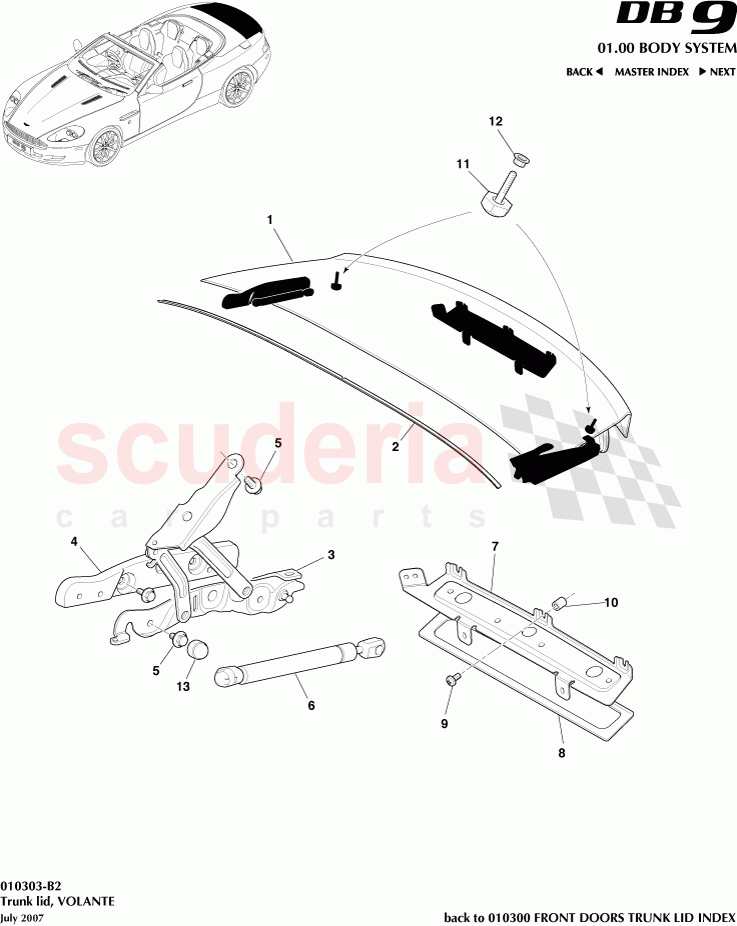

Aston Martin DB9 (2004-2012) - Trunk lid (Volante)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G43L40110BJ	ASSY - DECKLID CONV FED	Enquire	To Order
	8G43L40110BD	ASSY DECKLID VOLANTE FEDERAL	Enquire	To Order
	4G43L40616AL	Panel, trunk lid, VOLANTE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G437710613	DB9 BOOT FLIP SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4342740AD	HINGE ASSY LUGGAGE COMPARTMENT DOOR RH	Enquire	To Order
	4G4342741AD	HINGE ASSY LUGGAGE COMPARTMENT DOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L56190BA	CONV DECKLID HINGE TO BODY MOUNTING PLATE RH	Enquire	To Order
	4G43L56191BA	CONV DECKLID HINGE TO BODY MOUNTING PLATE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702972	Screw, M8 x 14	Enquire	To Order
	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L406A10AB	Gas Strut Trunk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L13A203AD	LAMP CLOSING PLATE CONVERTIBLE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L278C90AA	LAMP CLOSING PLATE CONVERTIBLE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703179	SCREW-M5x10 PAN HEAD CHROME FREE	Enquire	To Order
	703179	SCREW-M5x10 PAN HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43012M5TAAA	M5 TAPPEX INSERT FOR DECKLID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316K808AB	Bumper Hood to Cowl Top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699877	NUT M6 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4368632BA	Nut Cap, M6 Plastic Black	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G43L40110BJ	ASSY - DECKLID CONV FED	4G43L40110BJ ASSY - DECKLID CONV FED FEDERAL 07MY	-	1	Enquire
1	8G43L40110BD	ASSY DECKLID VOLANTE FEDERAL	8G43L40110BD ASSY DECKLID VOLANTE FEDERAL FEDERAL 08MY	-	1	Enquire
1	4G43L40616AL	Panel, trunk lid, VOLANTE	4G43L40616AL Panel, trunk lid, VOLANTE	-	1	Enquire
1	4G43L40110AK	ASSY DECKLID - CONV	4G43L40110AK ASSY DECKLID - CONV	-	1	Enquire
2	4G437710613	DB9 BOOT FLIP SEAL	4G437710613 DB9 BOOT FLIP SEAL -VOLANTE	-	1	Enquire
3	4G4342740AD	HINGE ASSY LUGGAGE COMPARTMENT DOOR RH	4G4342740AD HINGE ASSY LUGGAGE COMPARTMENT DOOR RH	-	1	Enquire
3	4G4342741AD	HINGE ASSY LUGGAGE COMPARTMENT DOOR LH	4G4342741AD HINGE ASSY LUGGAGE COMPARTMENT DOOR LH	-	1	Enquire
4	4G43L56190BA	CONV DECKLID HINGE TO BODY MOUNTING PLATE RH	4G43L56190BA CONV DECKLID HINGE TO BODY MOUNTING PLATE RH 07MY	-	1	Enquire
4	4G43L56191BA	CONV DECKLID HINGE TO BODY MOUNTING PLATE LH	4G43L56191BA CONV DECKLID HINGE TO BODY MOUNTING PLATE LH	-	2	Enquire
5	702972	Screw, M8 x 14	702972 Screw, M8 x 14 07MY	-	4	Enquire
5	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	703188 SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE 08MY	-	4	Enquire
6	4G43L406A10AB	Gas Strut Trunk	4G43L406A10AB Gas Strut Trunk	-	2	Enquire
7	4G43L13A203AD	LAMP CLOSING PLATE CONVERTIBLE ASSY	4G43L13A203AD LAMP CLOSING PLATE CONVERTIBLE ASSY	-	1	Enquire
8	4G43L278C90AA	LAMP CLOSING PLATE CONVERTIBLE SEAL	4G43L278C90AA LAMP CLOSING PLATE CONVERTIBLE SEAL	-	1	Enquire
9	703179	SCREW-M5x10 PAN HEAD CHROME FREE	703179 SCREW-M5x10 PAN HEAD CHROME FREE 07MY	-	6	Enquire
9	703179	SCREW-M5x10 PAN HEAD CHROME FREE	703179 SCREW-M5x10 PAN HEAD CHROME FREE 08MY	-	6	Enquire
10	4G43012M5TAAA	M5 TAPPEX INSERT FOR DECKLID	4G43012M5TAAA M5 TAPPEX INSERT FOR DECKLID	-	5	Enquire
11	4G4316K808AB	Bumper Hood to Cowl Top	4G4316K808AB Bumper Hood to Cowl Top	-	2	Enquire
12	699877	NUT M6 HEX FLG	699877 NUT M6 HEX FLG 07MY	-	2	Enquire
13	4G4368632BA	Nut Cap, M6 Plastic Black	4G4368632BA Nut Cap, M6 Plastic Black	-	8	Enquire
