Underbody of Aston Martin Aston Martin DB9 (2004-2012)

View All

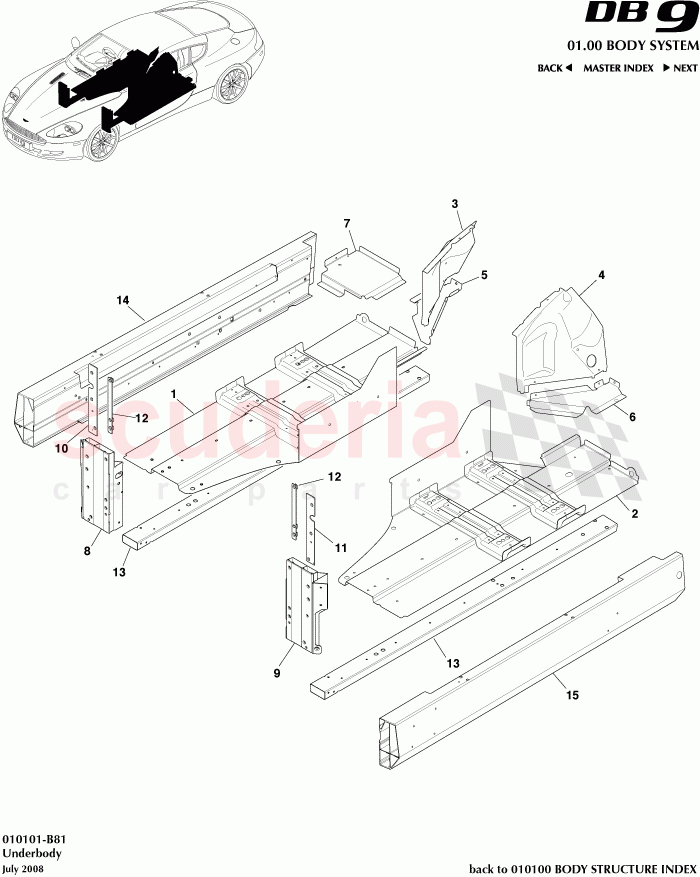

Aston Martin DB9 (2004-2012) - Underbody

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G431610879S	Panel assy, floor, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD3311141AC	PANEL FLOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4313058AA	TUNNEL REAR SIDE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4313059AB	TUNNEL REAR SIDE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4367340AA	PANEL REAR SEAT HEEL BOARD LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4367341GA	PANEL REAR SEAT HEEL BOARD LOWER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4310120AA	MEMBER FLOOR SIDE FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG43L1898AA	Sill assy, outer, RH	Enquire	To Order
	AG43C1898AA	ASSEMBLY SILL OUTER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43L1899AA	ASSEMBLY SILL OUTER LH	Enquire	To Order
	BG43C1899AA	Assembly Sill Out LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G431610879S	Panel assy, floor, RH	4G431610879S Panel assy, floor, RH VIN stamp required, Structural Cat. A only	-	1	Enquire
2	FD3311141AC	PANEL FLOOR LH	FD3311141AC PANEL FLOOR LH Structural Cat. A only	-	1	Enquire
3	8G4313058AA	TUNNEL REAR SIDE RH	8G4313058AA TUNNEL REAR SIDE RH Structural Cat. A only	-	1	Enquire
4	9G4313059AB	TUNNEL REAR SIDE LH	9G4313059AB TUNNEL REAR SIDE LH 07MY, Structural Cat. A only	-	1	Enquire
5	8G4367340AA	PANEL REAR SEAT HEEL BOARD LOWER RH	8G4367340AA PANEL REAR SEAT HEEL BOARD LOWER RH Structural Cat. A only	-	1	Enquire
6	8G4367341GA	PANEL REAR SEAT HEEL BOARD LOWER LH	8G4367341GA PANEL REAR SEAT HEEL BOARD LOWER LH Structural Cat. A only	-	1	Enquire
7	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	8G4367342AA SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH Structural Cat. A only	-	1	Enquire
8	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	4G432010876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9 Structural Cat. A only	-	1	Enquire
9	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	4G432010877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9 Structural Cat. A only	-	1	Enquire
10	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12 Structural Cat. A only	-	1	Enquire
11	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12 Structural Cat. A only	-	6	Enquire
12	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	8G43390725AA NUT PLATE FRONT END MOUNTING INR M12 Structural Cat. A only	-	2	Enquire
13	CG4310120AA	MEMBER FLOOR SIDE FRONT	CG4310120AA MEMBER FLOOR SIDE FRONT Structural Cat. A only	-	2	Enquire
14	AG43L1898AA	Sill assy, outer, RH	AG43L1898AA Sill assy, outer, RH VOLANTE, Structural Cat. A only	-	1	Enquire
14	AG43C1898AA	ASSEMBLY SILL OUTER RH	AG43C1898AA ASSEMBLY SILL OUTER RH COUPE, Structural Cat. A only	-	1	Enquire
15	BG43L1899AA	ASSEMBLY SILL OUTER LH	BG43L1899AA ASSEMBLY SILL OUTER LH VOLANTE, Structural Cat. A only	-	1	Enquire
15	BG43C1899AA	Assembly Sill Out LH	BG43C1899AA Assembly Sill Out LH COUPE, Structural Cat. A only	-	1	Enquire
