Body Side and Quarter Trim (Volante) of Aston Martin Aston Martin DB9 (2004-2012)

View All

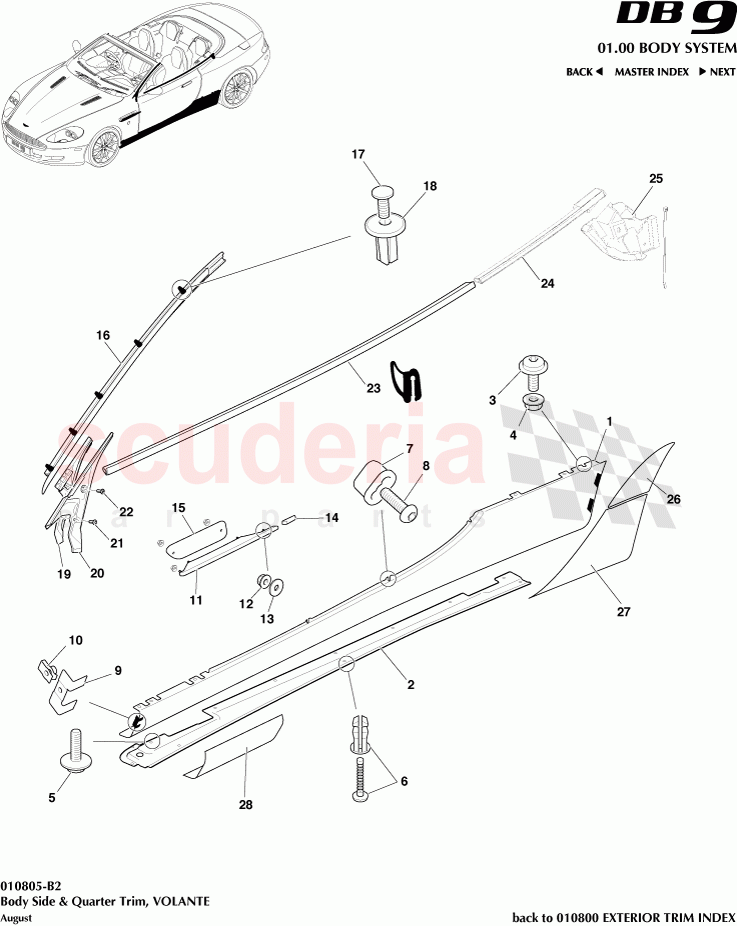

Aston Martin DB9 (2004-2012) - Body Side and Quarter Trim (Volante)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G4310608AB	SILL APPLIQUE MLDG RH	Enquire	To Order
	6G4310609AB	SILL APPLIQUE MLDG LH	Enquire	To Order
	AG4310608AB	Sill applique assy, RH	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G4310609AB	SILL APPLIQUE MLDG LH	Enquire	To Order
	6G4310608AB	SILL APPLIQUE MLDG RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701567	Screw, M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701582	RIVET PUSH-IN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4348954AA	SILL ANTI STRIP LOCKNUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707613	SCREW M4.2 X 13 FLANGE BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

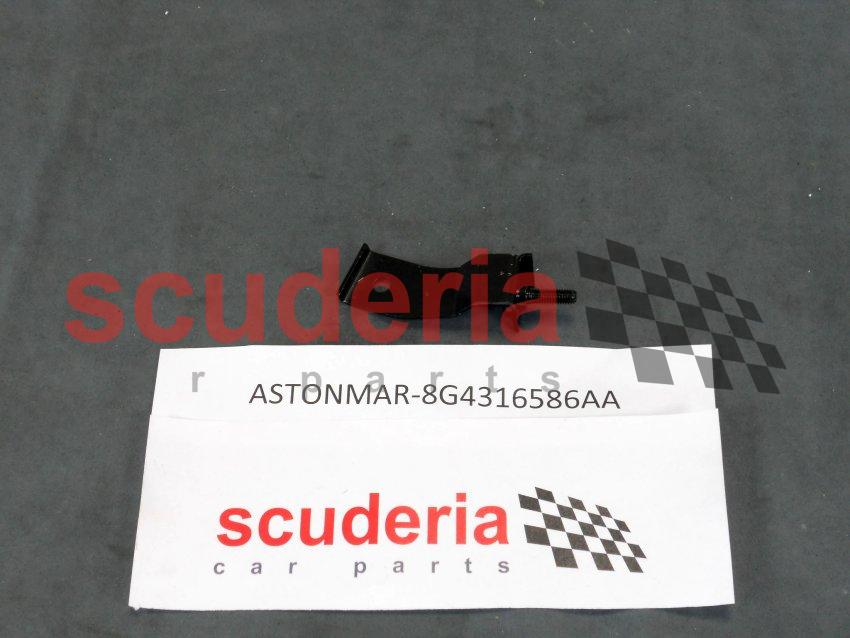

	8G4316586AA	Bracket Front Wheel Shield Right Hand Side	Enquire	To Order

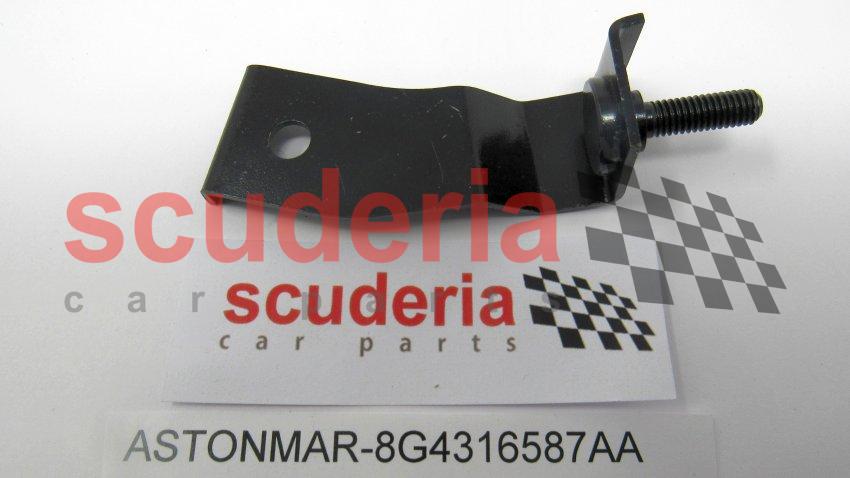

	8G4316587AA	BRKT FRT WHL SHLD-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43280B63AH	Side Strake Fender LH	Enquire	To Order
	4G43280B62AH	SIDE STRAKE FENDER RH	Enquire	To Order
	4G43280B63AH	Side Strake Fender LH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316C694ABPK	Washer Nylon M6 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43018K29AG	SIDE STRAKE DOOR LH	Enquire	To Order
	4G43018K28AG	SIDE STRAKE DOOR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43280B84BA	MESH SIDE STRAKE LH SPECIAL EDITION MAGNUM SILVER	Enquire	To Order
	BG43280B83BA	MESH SIDE STRAKE RH SPECIAL EDITION MAGNUM SILVER	Enquire	To Order
	4G43280B84BA	MESH SIDE STRAKE LH SPECIAL EDITION	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G43519A36DA	Finisher, A Pillar, LH	Enquire	To Order
	4G43519A37DA	Finisher, A Pillar, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707135	SCREW 4.2 X 13 SELF TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701656	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C02565AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	Enquire	To Order
	4G43C02564AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	Enquire	To Order
	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702217	Screw, M5 x 2.5 x 20, Internal Hex Dome Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700235	SCREW 4.2x905 TAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F20563BA	Weatherstrip, Front Door Outer, LH	Enquire	To Order
	4G43F20562BA	Weatherstrip, Front Door Outer, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G431228495CA	Weatherstrip Rear Quarter Glass Outer LH	Enquire	To Order
	9G431228494CA	Weatherstrip, Rear Quarter Glass outer, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439110346	PAINT PROTECTION KIT -DB9	Enquire	To Order
	4G43A410K25BE	Bracket, Panel Rear Body Pillar Closing, LH	Enquire	To Order
	4G43A410K24BE	Bracket, Panel Rear Body Pillar Closing, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3310631AB	Tape, Rear quarter, LH	Enquire	To Order
	8D3310630AB	Tape, Rear quarter, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4310625AB	SILL REAR TAPE LH	Enquire	To Order
	4G4310624AB	SILL REAR TAPE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4310628AB	FRT BMPR LWR TAPE	Enquire	To Order
	4G4310627AA	SILL FRONT TAPE LH 350X175MM	Enquire	To Order
	4G439110347	INSTRUCTION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G4310608AB	SILL APPLIQUE MLDG RH	6G4310608AB SILL APPLIQUE MLDG RH -From Vin 10804 (item 1 not req'd)	-	1	Enquire
1	6G4310609AB	SILL APPLIQUE MLDG LH	6G4310609AB SILL APPLIQUE MLDG LH -From Vin 10804(item 1 not req'd)	-	1	Enquire
1	AG4310608AB	Sill applique assy, RH	AG4310608AB Sill applique assy, RH -11MY	-	1	Enquire
1	AG4310609AB	Sill applique assy, LH	AG4310609AB Sill applique assy, LH -11MY	-	1	Enquire
1	6G4310608AB	SILL APPLIQUE MLDG RH	6G4310608AB SILL APPLIQUE MLDG RH	-	1	Enquire
1	6G4310609AB	SILL APPLIQUE MLDG LH	6G4310609AB SILL APPLIQUE MLDG LH	-	1	Enquire
1	4G4350897BA	Spacer, sill	4G4350897BA Spacer, sill	-	2	Enquire
2	6G4310609AB	SILL APPLIQUE MLDG LH	6G4310609AB SILL APPLIQUE MLDG LH Up to 08MY	-	1	Enquire
2	6G4310608AB	SILL APPLIQUE MLDG RH	6G4310608AB SILL APPLIQUE MLDG RH Up to 08MY	-	1	Enquire
3	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free	-	4	Enquire
4	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	4	Enquire
5	701567	Screw, M6 x 16	701567 Screw, M6 x 16	-	14	Enquire
6	701582	RIVET PUSH-IN	701582 RIVET PUSH-IN	-	6	Enquire
7	4G4348954AA	SILL ANTI STRIP LOCKNUT	4G4348954AA SILL ANTI STRIP LOCKNUT	-	9	Enquire
8	707613	SCREW M4.2 X 13 FLANGE BLACK	707613 SCREW M4.2 X 13 FLANGE BLACK	-	9	Enquire
9	8G4316586AA	Bracket Front Wheel Shield Right Hand Side	8G4316586AA Bracket Front Wheel Shield Right Hand Side	-	1	Enquire
9	8G4316587AA	BRKT FRT WHL SHLD-LH	8G4316587AA BRKT FRT WHL SHLD-LH	-	1	Enquire
10	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	703740 NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	-	6	Enquire
11	4G43280B63AH	Side Strake Fender LH	4G43280B63AH Side Strake Fender LH -11MY	-	1	Enquire
11	4G43280B62AH	SIDE STRAKE FENDER RH	4G43280B62AH SIDE STRAKE FENDER RH -11MY	-	1	Enquire
11	4G43280B63AH	Side Strake Fender LH	4G43280B63AH Side Strake Fender LH	-	1	Enquire
11	4G43280B62AH	SIDE STRAKE FENDER RH	4G43280B62AH SIDE STRAKE FENDER RH	-	1	Enquire
12	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking 07MY	-	4	Enquire
12	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking 08MY	-	4	Enquire
13	4G4316C694ABPK	Washer Nylon M6 (Pack of 10)	4G4316C694ABPK Washer Nylon M6 (Pack of 10)	-	1	Enquire
14	4G43018K29AG	SIDE STRAKE DOOR LH	4G43018K29AG SIDE STRAKE DOOR LH	-	1	Enquire
14	4G43018K28AG	SIDE STRAKE DOOR RH	4G43018K28AG SIDE STRAKE DOOR RH	-	1	Enquire
15	BG43280B84BA	MESH SIDE STRAKE LH SPECIAL EDITION MAGNUM SILVER	BG43280B84BA MESH SIDE STRAKE LH SPECIAL EDITION MAGNUM SILVER -11MY, Magnum Silver	-	1	Enquire
15	BG43280B83BA	MESH SIDE STRAKE RH SPECIAL EDITION MAGNUM SILVER	BG43280B83BA MESH SIDE STRAKE RH SPECIAL EDITION MAGNUM SILVER -11MY, Magnum Silver	-	1	Enquire
15	4G43280B84BA	MESH SIDE STRAKE LH SPECIAL EDITION	4G43280B84BA MESH SIDE STRAKE LH SPECIAL EDITION Magnum Silver	-	1	Enquire
15	4G43280B83BA	MESH SIDE STRAKE RH SPECIAL EDITION	4G43280B83BA MESH SIDE STRAKE RH SPECIAL EDITION Magnum Silver	-	1	Enquire
15	BG43280B84AA	MESH SIDE STRAKE LH PLATINUM	BG43280B84AA MESH SIDE STRAKE LH PLATINUM -11MY	-	1	Enquire
15	BG43280B83AA	MESH SIDE STRAKE RH PLATINUM	BG43280B83AA MESH SIDE STRAKE RH PLATINUM -11MY	-	1	Enquire
15	4G437811462	MESH KIT-SD STRAKE-2	4G437811462 MESH KIT-SD STRAKE-2	-	1	Enquire
16	4G43519A36DA	Finisher, A Pillar, LH	4G43519A36DA Finisher, A Pillar, LH	-	1	Enquire
16	4G43519A37DA	Finisher, A Pillar, RH	4G43519A37DA Finisher, A Pillar, RH	-	1	Enquire
17	707135	SCREW 4.2 X 13 SELF TAPPING	707135 SCREW 4.2 X 13 SELF TAPPING	-	36	Enquire
18	701656	RETAINER	701656 RETAINER	-	38	Enquire
19	4G43C02565AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	4G43C02565AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	-	1	Enquire
19	4G43C02564AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	4G43C02564AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	-	1	Enquire
20	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	4G43C02565BD Retainer Assy, Front Body W/Strip Cover Primary, LH	-	1	Enquire
20	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH	4G43C02564BD Retainer Assy, Front Body W/Strip Cover Primary, RH	-	1	Enquire
21	702217	Screw, M5 x 2.5 x 20, Internal Hex Dome Head	702217 Screw, M5 x 2.5 x 20, Internal Hex Dome Head	-	2	Enquire
22	700235	SCREW 4.2x905 TAP	700235 SCREW 4.2x905 TAP	-	2	Enquire
23	4G43F20563BA	Weatherstrip, Front Door Outer, LH	4G43F20563BA Weatherstrip, Front Door Outer, LH	-	1	Enquire
23	4G43F20562BA	Weatherstrip, Front Door Outer, RH	4G43F20562BA Weatherstrip, Front Door Outer, RH	-	1	Enquire
24	9G431228495CA	Weatherstrip Rear Quarter Glass Outer LH	9G431228495CA Weatherstrip Rear Quarter Glass Outer LH	-	1	Enquire
24	9G431228494CA	Weatherstrip, Rear Quarter Glass outer, RH	9G431228494CA Weatherstrip, Rear Quarter Glass outer, RH	-	1	Enquire
25	4G439110346	PAINT PROTECTION KIT -DB9	4G439110346 PAINT PROTECTION KIT -DB9 Includes all items listed below	-	1	Enquire
25	4G43A410K25BE	Bracket, Panel Rear Body Pillar Closing, LH	4G43A410K25BE Bracket, Panel Rear Body Pillar Closing, LH	-	1	Enquire
25	4G43A410K24BE	Bracket, Panel Rear Body Pillar Closing, RH	4G43A410K24BE Bracket, Panel Rear Body Pillar Closing, RH	-	1	Enquire
26	8D3310631AB	Tape, Rear quarter, LH	8D3310631AB Tape, Rear quarter, LH	-	1	Enquire
26	8D3310630AB	Tape, Rear quarter, RH	8D3310630AB Tape, Rear quarter, RH	-	1	Enquire
27	4G4310625AB	SILL REAR TAPE LH	4G4310625AB SILL REAR TAPE LH	-	1	Enquire
27	4G4310624AB	SILL REAR TAPE RH	4G4310624AB SILL REAR TAPE RH	-	1	Enquire
28	4G4310628AB	FRT BMPR LWR TAPE	4G4310628AB FRT BMPR LWR TAPE see 011901-B1	-	1	Enquire
28	4G4310627AA	SILL FRONT TAPE LH 350X175MM	4G4310627AA SILL FRONT TAPE LH 350X175MM	-	1	Enquire
28	4G439110347	INSTRUCTION	4G439110347 INSTRUCTION	-	1	Enquire
28	8G4310626AB	SILL FRT TAPE RH	8G4310626AB SILL FRT TAPE RH	-	1	Enquire
