EV Structure (Volante) of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - EV Structure (Volante)

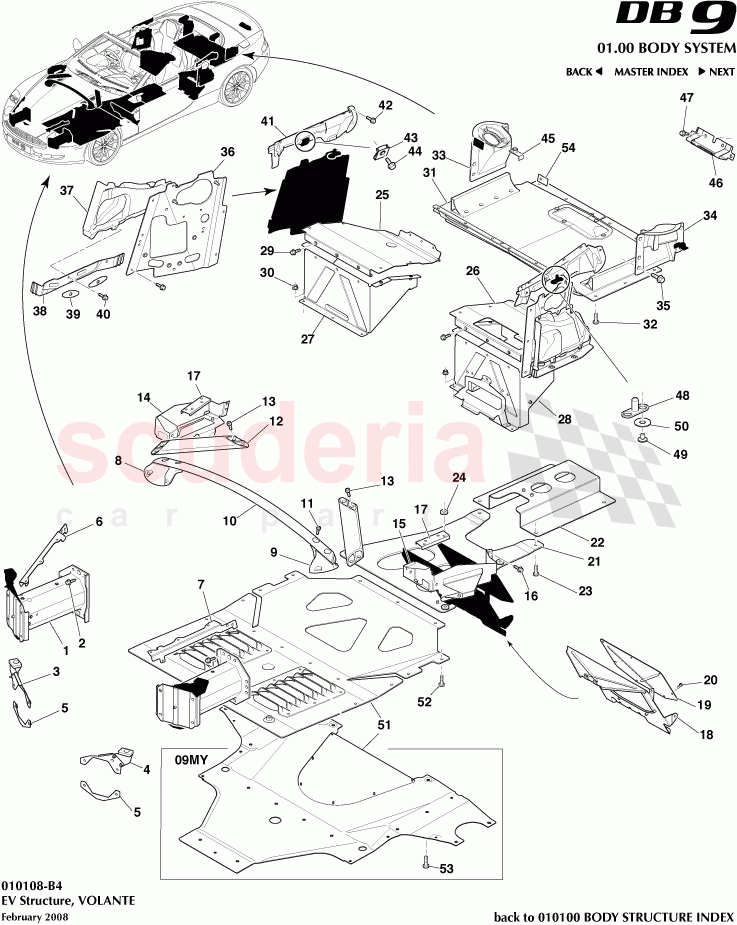

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD43V17N800AC	BUMPER FRONT CRASH CAN	Enquire	To Order
	AD43V17N800AC	BUMPER FRONT CRASH CAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	Enquire	IN STOCK
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4313068AD	PANEL HEADLAMP MOUNTING RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313069AD	PANEL HEADLAMP MOUNTING LH	Enquire	To Order
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G436367912AD	NUT PLT ASY FRT CRSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B19AC	TUBE PASSENGER AIR BAG INITIATPR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B20AC	TUBE PASSENGER AIR BAG INITIATOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43108A86AE	BRACKET FRONT CROSS BRACE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43108A87AE	BRACKET FRONT CROSS BRACE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43108A75AA	BRA FRT CS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702209	Bolt, M10 x 25, Torque Drive	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43F00198AF	Reinforce, body cross bar, RH	Enquire	To Order
	4G43F00199AF	Reinforce, body cross bar, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702209	Bolt, M10 x 25, Torque Drive	Enquire	IN STOCK
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G435340AJ	BRACKET ECU MOUNTING RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435341AJ	BRACKET ECU MOUNTING LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4316802AA	NUT PLATE HOOD HINGE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111C61AE	Panel, Dummy Floor Front, RHD	Enquire	To Order
	4G43111C60AD	PANEL DUMMY FLOOR FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111B48AB	Panel, Dummy Floor Cover, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43111K36AF	TUNNEL REINFORCEMENT FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111K37AE	Tunnel Reinforcement, Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G431660AA	TUNNEL REINFORCEMENT FRONT SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310N660AC	PANEL BATTERY COVER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310N661AA	PANEL BATTERY COVER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4367518AE	PANEL REAR SEAT HEEL BOARD RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4367519AB	Panel, rear seat heel board LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4338580AK	ASY PNL F/TNK COMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4318A000AC	Member, rear damper mnting RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318A001AC	Member, rear damper mnting LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L04702AG	Cover panel, window reg opening, RH	Enquire	To Order
	8G43L04702GA	PANEL WINDOW REGULATOR OPENING COVER RH	Enquire	To Order
	4G43L04703AG	Cover panel, window reg opening, LH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9G4328034AB	Panel, Rear Quarter Shedder, RH	Enquire	To Order
	9G4328035AB	Panel, Rear Quarter Shedder, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43303A92AB	QTR WINDOW REG MNT BRKT RH	Enquire	To Order
	4G43303A93AB	QTR WINDOW REG MNT BRKT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314A573AA	Plate Assembly, Window Regulator Rear Switch Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43A410K24AH	Panel, Rear Body Pillar Closing, RH	Enquire	To Order
	4G43A410K25AH	Panel, Rear Body Pillar Closing, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43433A32AF	REINF L/C DR LAT HSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43L243A70AA	Alignment Pin, Main Bearing Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4311262AC	REINF ASSY FRT FLR PAN FRT	Enquire	To Order
	4G4311262AC	REINF ASSY FRT FLR PAN FRT	Enquire	To Order
	9G4311262BA	Reinforcement Assembly, Floor Pan Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	Enquire	IN STOCK
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	Enquire	IN STOCK
	703268	Screw and Washer, M8 x 21	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G432943707AA	PLATE WELD NUT CENTRE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD43V17N800AC	BUMPER FRONT CRASH CAN	AD43V17N800AC BUMPER FRONT CRASH CAN 09MY	-	2	Enquire
1	AD43V17N800AC	BUMPER FRONT CRASH CAN	AD43V17N800AC BUMPER FRONT CRASH CAN	-	2	Enquire
2	703172PK	Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	703172PK Screw M8 x 25 Pan Head (Pack of 10) 07MY IN STOCK	-	12	Enquire
2	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE 08MY IN STOCK	-	12	Enquire
3	4G4313068AD	PANEL HEADLAMP MOUNTING RH	4G4313068AD PANEL HEADLAMP MOUNTING RH	-	1	Enquire
4	4G4313069AD	PANEL HEADLAMP MOUNTING LH	4G4313069AD PANEL HEADLAMP MOUNTING LH	-	1	Enquire
4	703172PK	Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	703172PK Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	-	2	Enquire
5	4G436367912AD	NUT PLT ASY FRT CRSH	4G436367912AD NUT PLT ASY FRT CRSH	-	2	Enquire
6	4G43043B19AC	TUBE PASSENGER AIR BAG INITIATPR RH	4G43043B19AC TUBE PASSENGER AIR BAG INITIATPR RH	-	1	Enquire
7	4G43043B20AC	TUBE PASSENGER AIR BAG INITIATOR LH	4G43043B20AC TUBE PASSENGER AIR BAG INITIATOR LH	-	1	Enquire
8	4G43108A86AE	BRACKET FRONT CROSS BRACE RH	4G43108A86AE BRACKET FRONT CROSS BRACE RH	-	1	Enquire
9	4G43108A87AE	BRACKET FRONT CROSS BRACE LH	4G43108A87AE BRACKET FRONT CROSS BRACE LH	-	1	Enquire
10	4G43108A75AA	BRA FRT CS	4G43108A75AA BRA FRT CS	-	1	Enquire
11	702209	Bolt, M10 x 25, Torque Drive IN STOCK	702209 Bolt, M10 x 25, Torque Drive IN STOCK	-	4	Enquire
12	4G43F00198AF	Reinforce, body cross bar, RH	4G43F00198AF Reinforce, body cross bar, RH Order in pairs	-	2	Enquire
12	4G43F00199AF	Reinforce, body cross bar, LH	4G43F00199AF Reinforce, body cross bar, LH Order in pairs	-	2	Enquire
13	702209	Bolt, M10 x 25, Torque Drive IN STOCK	702209 Bolt, M10 x 25, Torque Drive IN STOCK	-	4	Enquire
13	703163	Nut, M6, Hex Flange Head, Locking IN STOCK	703163 Nut, M6, Hex Flange Head, Locking IN STOCK	-	4	Enquire
14	4G435340AJ	BRACKET ECU MOUNTING RH	4G435340AJ BRACKET ECU MOUNTING RH	-	1	Enquire
15	4G435341AJ	BRACKET ECU MOUNTING LH	4G435341AJ BRACKET ECU MOUNTING LH	-	1	Enquire
16	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	-	12	Enquire
17	4G4316802AA	NUT PLATE HOOD HINGE MOUNTING BRACKET	4G4316802AA NUT PLATE HOOD HINGE MOUNTING BRACKET	-	2	Enquire
18	4G43111C61AE	Panel, Dummy Floor Front, RHD	4G43111C61AE Panel, Dummy Floor Front, RHD RHD	-	1	Enquire
18	4G43111C60AD	PANEL DUMMY FLOOR FRONT	4G43111C60AD PANEL DUMMY FLOOR FRONT LHD	-	1	Enquire
19	4G43111B48AB	Panel, Dummy Floor Cover, Front	4G43111B48AB Panel, Dummy Floor Cover, Front	-	1	Enquire
20	701553	Screw, M6 x 16, Pan Head IN STOCK	701553 Screw, M6 x 16, Pan Head IN STOCK	-	8	Enquire
21	4G43111K36AF	TUNNEL REINFORCEMENT FRONT	4G43111K36AF TUNNEL REINFORCEMENT FRONT	-	1	Enquire
22	4G43111K37AE	Tunnel Reinforcement, Centre	4G43111K37AE Tunnel Reinforcement, Centre	-	1	Enquire
23	703172PK	Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	703172PK Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	-	8	Enquire
24	4G431660AA	TUNNEL REINFORCEMENT FRONT SPACER	4G431660AA TUNNEL REINFORCEMENT FRONT SPACER	-	4	Enquire
25	7G4310N660AC	PANEL BATTERY COVER RH	7G4310N660AC PANEL BATTERY COVER RH	-	1	Enquire
26	7G4310N661AA	PANEL BATTERY COVER LH	7G4310N661AA PANEL BATTERY COVER LH 07MY	-	1	Enquire
27	4G4367518AE	PANEL REAR SEAT HEEL BOARD RH	4G4367518AE PANEL REAR SEAT HEEL BOARD RH	-	1	Enquire
28	7G4367519AB	Panel, rear seat heel board LH	7G4367519AB Panel, rear seat heel board LH 07MY	-	1	Enquire
29	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	-	22	Enquire
30	703163	Nut, M6, Hex Flange Head, Locking IN STOCK	703163 Nut, M6, Hex Flange Head, Locking IN STOCK	-	12	Enquire
31	4G4338580AK	ASY PNL F/TNK COMP	4G4338580AK ASY PNL F/TNK COMP	-	1	Enquire
32	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head IN STOCK	-	16	Enquire
33	4G4318A000AC	Member, rear damper mnting RH	4G4318A000AC Member, rear damper mnting RH	-	1	Enquire
34	4G4318A001AC	Member, rear damper mnting LH	4G4318A001AC Member, rear damper mnting LH	-	1	Enquire
35	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	703185 M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	-	8	Enquire
36	4G43L04702AG	Cover panel, window reg opening, RH	4G43L04702AG Cover panel, window reg opening, RH 07MY	-	1	Enquire
36	8G43L04702GA	PANEL WINDOW REGULATOR OPENING COVER RH	8G43L04702GA PANEL WINDOW REGULATOR OPENING COVER RH 08MY	-	1	Enquire
36	4G43L04703AG	Cover panel, window reg opening, LH	4G43L04703AG Cover panel, window reg opening, LH 07MY	-	1	Enquire
36	8G43L04703GA	PANEL WINDOW REGULATOR OPENING COVER LH	8G43L04703GA PANEL WINDOW REGULATOR OPENING COVER LH 08MY	-	1	Enquire
37	9G4328034AB	Panel, Rear Quarter Shedder, RH	9G4328034AB Panel, Rear Quarter Shedder, RH	-	1	Enquire
37	9G4328035AB	Panel, Rear Quarter Shedder, LH	9G4328035AB Panel, Rear Quarter Shedder, LH	-	1	Enquire
38	4G43303A92AB	QTR WINDOW REG MNT BRKT RH	4G43303A92AB QTR WINDOW REG MNT BRKT RH	-	1	Enquire
38	4G43303A93AB	QTR WINDOW REG MNT BRKT LH	4G43303A93AB QTR WINDOW REG MNT BRKT LH	-	1	Enquire
39	4G4314A573AA	Plate Assembly, Window Regulator Rear Switch Cover	4G4314A573AA Plate Assembly, Window Regulator Rear Switch Cover	-	4	Enquire
40	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	4	Enquire
41	4G43A410K24AH	Panel, Rear Body Pillar Closing, RH	4G43A410K24AH Panel, Rear Body Pillar Closing, RH	-	1	Enquire
41	4G43A410K25AH	Panel, Rear Body Pillar Closing, LH	4G43A410K25AH Panel, Rear Body Pillar Closing, LH	-	1	Enquire
42	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	4	Enquire
43	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) IN STOCK	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) IN STOCK	-	4	Enquire
44	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD IN STOCK	-	4	Enquire
45	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14	-	2	Enquire
46	4G43433A32AF	REINF L/C DR LAT HSE	4G43433A32AF REINF L/C DR LAT HSE	-	1	Enquire
47	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head IN STOCK	-	2	Enquire
48	4G43L243A70AA	Alignment Pin, Main Bearing Bracket	4G43L243A70AA Alignment Pin, Main Bearing Bracket	-	2	Enquire
49	703149	SCREW M6x16 PAN FLG TORX CHROME FRE IN STOCK	703149 SCREW M6x16 PAN FLG TORX CHROME FRE IN STOCK	-	4	Enquire
50	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10)	-	4	Enquire
51	4G4311262AC	REINF ASSY FRT FLR PAN FRT	4G4311262AC REINF ASSY FRT FLR PAN FRT Up to 22/01/2007	-	1	Enquire
51	4G4311262AC	REINF ASSY FRT FLR PAN FRT	4G4311262AC REINF ASSY FRT FLR PAN FRT From 22/01/2007	-	1	Enquire
51	9G4311262BA	Reinforcement Assembly, Floor Pan Front	9G4311262BA Reinforcement Assembly, Floor Pan Front 09MY	-	1	Enquire
52	703172PK	Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	703172PK Screw M8 x 25 Pan Head (Pack of 10) 07MY IN STOCK	-	13	Enquire
52	703172PK	Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	703172PK Screw M8 x 25 Pan Head (Pack of 10) 08MY IN STOCK	-	13	Enquire
52	703268	Screw and Washer, M8 x 21 IN STOCK	703268 Screw and Washer, M8 x 21 09MY IN STOCK	-	14	Enquire
53	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20) IN STOCK	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) IN STOCK	-	2	Enquire
54	4G432943707AA	PLATE WELD NUT CENTRE	4G432943707AA PLATE WELD NUT CENTRE	-	2	Enquire
