Aston Martin DB9 (2004-2012) - Fuel Filler Door Latches and Mechanisms (Volante)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G433710067	Actuator Assy, Fuel Filler	$358.15	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4340180BA	Cable, Fuel Filler Flap Release	$59.00	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439N447AB	Mounting Bracket, Fuel Filler Solenoid	$25.10	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order
	702944	Nut, M6, Hex Flanged Head	$1.05	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L405A02BA	Door, Fuel Filler Opening	$63.63	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43L405B96BD	ASY FU/FILL DR LAT C	$511.26	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	$0.75	To Order
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4328630AA	Gasket, Fuel Filler Mounting	$69.91	To Order

View All

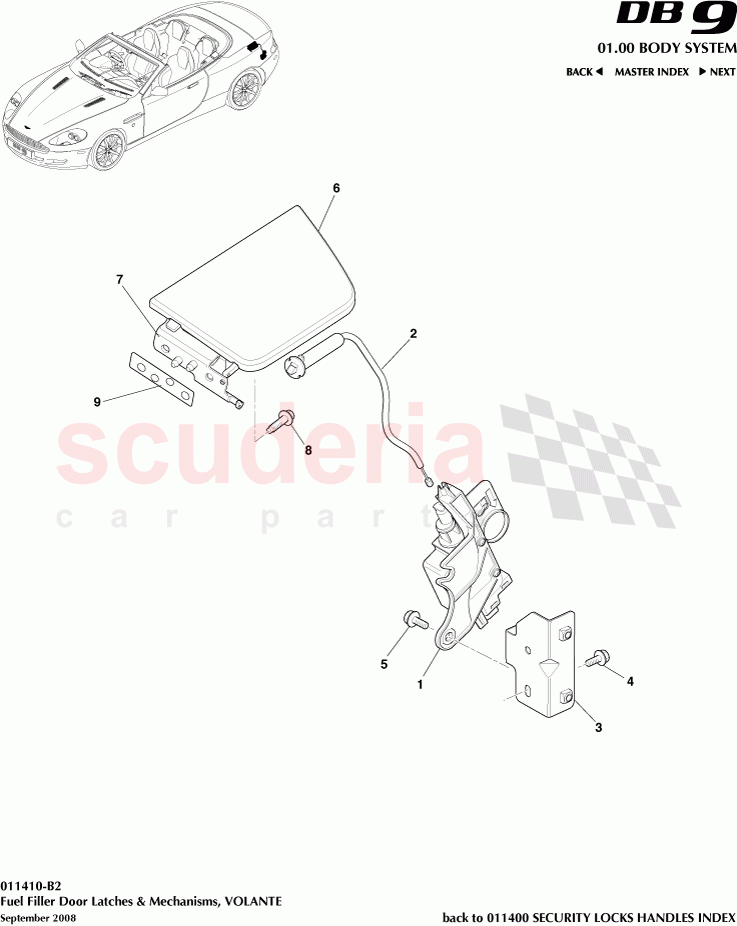

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4G433710067	Actuator Assy, Fuel Filler	4G433710067 Actuator Assy, Fuel Filler	$358.15	1
2	AG4340180BA	Cable, Fuel Filler Flap Release	AG4340180BA Cable, Fuel Filler Flap Release	$59.00	1
3	4G439N447AB	Mounting Bracket, Fuel Filler Solenoid	4G439N447AB Mounting Bracket, Fuel Filler Solenoid	$25.10	1
4	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD Solenoid bracket to body 07MY	$0.75	2
4	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD Solenoid bracket to body 08MY	$0.75	2
4	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head Solenoid bracket to body 07MY	$1.05	2
4	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking Solenoid bracket to body 08MY	$0.12	2
5	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD Solenoid to bracket 07MY	$0.75	2
5	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD Solenoid to bracket 08MY	$0.75	2
6	4G43L405A02BA	Door, Fuel Filler Opening	4G43L405A02BA Door, Fuel Filler Opening VOLANTE	$63.63	1
7	BG43L405B96BD	ASY FU/FILL DR LAT C	BG43L405B96BD ASY FU/FILL DR LAT C	$511.26	1
8	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE 07MY	$0.75	2
8	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE 08MY	$0.75	2
9	4G4328630AA	Gasket, Fuel Filler Mounting	4G4328630AA Gasket, Fuel Filler Mounting VOLANTE	$69.91	1
