Find Your Part

Front Bumper of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Front Bumper

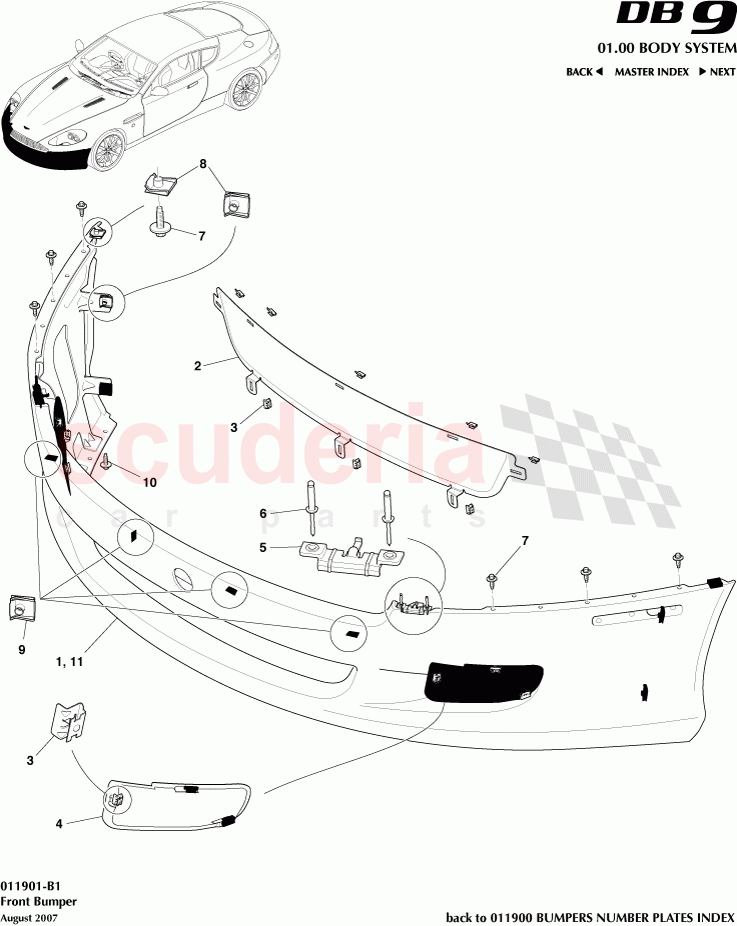

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AG438156BC	Mesh Lower Grille Centre, Magnum silver	Enquire	To Order
	AG438156AC	Mesh Lower Grille Centre	Enquire	To Order
	9G438156AA	Mesh Lower Front Grille	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G4317E811AB	Cover Front Bumper Opening LH	Enquire	To Order
	6G4317E810AB	Cover Front Bumper Opening RH	Enquire	To Order
	AG4317E811BC	COVER FRONT BUMPER OPENING LH	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G43023A50BBPK	External Fender Clip (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701580PK	Rivet Dome Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438191AAPK	Clip Bumper Grille (Pack Of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4310628AB	FRT BMPR LWR TAPE	Enquire	To Order
	AG4332692BA	M8X25 STEEL WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AG4317D957DD	Cover assy, front bumper, PDC, FEDERAL	AG4317D957DD Cover assy, front bumper, PDC, FEDERAL -11MY	-	1	Enquire
-	AG4317D957CD	Cover assy, front bumper, PDC, ROW	AG4317D957CD Cover assy, front bumper, PDC, ROW -11MY	-	1	Enquire
-	AG4317D957BD	Cover assy, front bumper, FEDERAL	AG4317D957BD Cover assy, front bumper, FEDERAL -11MY	-	1	Enquire
-	AG4317D957AD	Cover assy, front bumper, ROW	AG4317D957AD Cover assy, front bumper, ROW -11MY	-	1	Enquire
-	6G4317D957BD	COVER ASSY - FRONT BUMPER - FED	6G4317D957BD COVER ASSY - FRONT BUMPER - FED	-	1	Enquire
-	6G4317D957AD	COVER ASSY - FRONT BUMPER - WORLD	6G4317D957AD COVER ASSY - FRONT BUMPER - WORLD	-	1	Enquire
-	4G4317D957BM	COVER ASSY - FRONT BUMPER - FED	4G4317D957BM COVER ASSY - FRONT BUMPER - FED	-	1	Enquire
-	4G4317D957AM	COVER ASSY - FRONT BUMPER - WORLD	4G4317D957AM COVER ASSY - FRONT BUMPER - WORLD	-	1	Enquire
2	AG438156BC	Mesh Lower Grille Centre, Magnum silver	AG438156BC Mesh Lower Grille Centre, Magnum silver -11MY option	-	1	Enquire
2	AG438156AC	Mesh Lower Grille Centre	AG438156AC Mesh Lower Grille Centre -11MY	-	1	Enquire
2	9G438156AA	Mesh Lower Front Grille	9G438156AA Mesh Lower Front Grille - PDC	-	1	Enquire
2	9G438156AA	Mesh Lower Front Grille	9G438156AA Mesh Lower Front Grille	-	1	Enquire
2	4G438191AAPK	Clip Bumper Grille (Pack Of 10)	4G438191AAPK Clip Bumper Grille (Pack Of 10)	-	4	Enquire
3	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	4G4317F773ABPK Retainer Grille to Front Bumper (Pack of 10)	-	14	Enquire
4	6G4317E811AB	Cover Front Bumper Opening LH	6G4317E811AB Cover Front Bumper Opening LH 07MY From (V) TBA	-	1	Enquire
4	6G4317E810AB	Cover Front Bumper Opening RH	6G4317E810AB Cover Front Bumper Opening RH 07MY From (V) TBA	-	1	Enquire
4	AG4317E811BC	COVER FRONT BUMPER OPENING LH	AG4317E811BC COVER FRONT BUMPER OPENING LH -11MY	-	1	Enquire
4	AG4317E811AD	COVER FRT BMPR OPG	AG4317E811AD COVER FRT BMPR OPG -11MY	-	1	Enquire
4	AG4317E810AD	COVER FRONT BUMPER OPENING RH	AG4317E810AD COVER FRONT BUMPER OPENING RH -11MY	-	1	Enquire
4	6G4317E811AB	Cover Front Bumper Opening LH	6G4317E811AB Cover Front Bumper Opening LH	-	1	Enquire
4	6G4317E810AB	Cover Front Bumper Opening RH	6G4317E810AB Cover Front Bumper Opening RH	-	1	Enquire
5	4G43023A50BBPK	External Fender Clip (Pack of 5)	4G43023A50BBPK External Fender Clip (Pack of 5)	-	2	Enquire
6	701580PK	Rivet Dome Head (Pack of 20)	701580PK Rivet Dome Head (Pack of 20)	-	4	Enquire
7	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10)	-	8	Enquire
8	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	-	4	Enquire
9	4G438191AAPK	Clip Bumper Grille (Pack Of 10)	4G438191AAPK Clip Bumper Grille (Pack Of 10)	-	4	Enquire
10	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20)	-	14	Enquire
11	4G4310628AB	FRT BMPR LWR TAPE	4G4310628AB FRT BMPR LWR TAPE see 010805-B1	-	1	Enquire
11	AG4332692BA	M8X25 STEEL WASHER	AG4332692BA M8X25 STEEL WASHER	-	4	Enquire
