Name: Hood Latching System
Rating: 5.0 (1 reviews)

View All

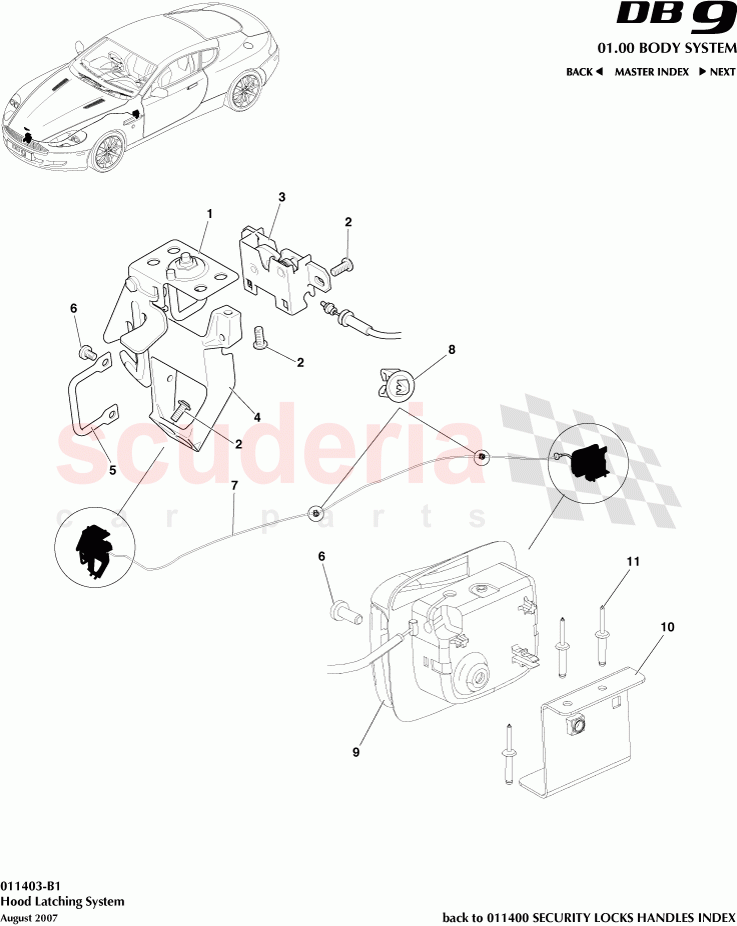

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G4316B768AF	Latch Assembly Hood Secondary	$750.04	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	$0.75	To Order
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436410063	Bonnet Latch	$33.48	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433804AC	Bonnet Latch Mounting Bracket	$666.32	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316A944AB	SECONDARY LATCH STRIKER BAR	$40.49	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316C656AF	CABLE ASSEMBLY HOOD LATCH	$61.63	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	$69.55	To Order

Photo	Part No	Description	Price (each)	Stock
	9G436411062	Lever, Bonnet Release	$194.41	To Order

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	$0.21	To Order
	4G4316C730AB	Bracket, Hood Release Handle Mounting	$15.73	To Order

Photo	Part No	Description	Price (each)	Stock
	701580PK	Rivet Dome Head (Pack of 20)	$11.36	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4G4316B768AF	Latch Assembly Hood Secondary	4G4316B768AF Latch Assembly Hood Secondary	$750.04	1
2	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE 07MY	$0.75	6
2	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE 08MY	$0.75	6
3	4G436410063	Bonnet Latch	4G436410063 Bonnet Latch	$33.48	1
4	4G433804AC	Bonnet Latch Mounting Bracket	4G433804AC Bonnet Latch Mounting Bracket	$666.32	1
5	4G4316A944AB	SECONDARY LATCH STRIKER BAR	4G4316A944AB SECONDARY LATCH STRIKER BAR	$40.49	1
6	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head 07MY	$0.36	4
6	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head 08MY	$0.36	4
7	4G4316C656AF	CABLE ASSEMBLY HOOD LATCH	4G4316C656AF CABLE ASSEMBLY HOOD LATCH	$61.63	1
8	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100)	$69.55	4
9	9G436411062	Lever, Bonnet Release	9G436411062 Lever, Bonnet Release	$194.41	1
10	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	$0.21	1
10	4G4316C730AB	Bracket, Hood Release Handle Mounting	4G4316C730AB Bracket, Hood Release Handle Mounting	$15.73	1
11	701580PK	Rivet Dome Head (Pack of 20)	701580PK Rivet Dome Head (Pack of 20)	$11.36	3
