Name: Grille Opening Panel
Rating: 5.0 (1 reviews)

Grille Opening Panel of Aston Martin Aston Martin DB9 (2004-2012)

View All

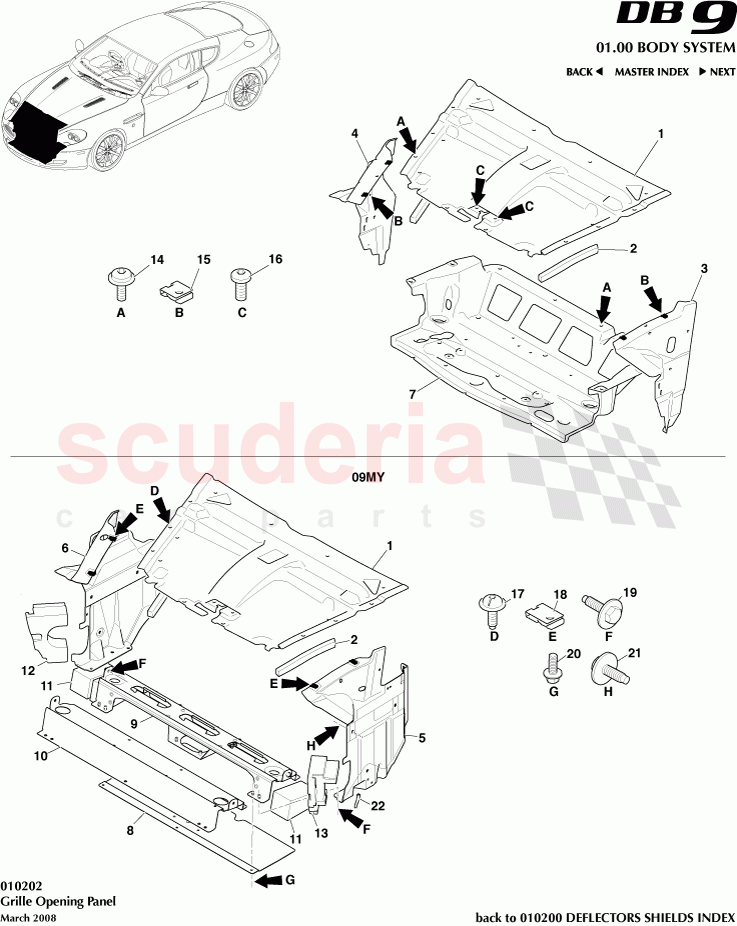

Aston Martin DB9 (2004-2012) - Grille Opening Panel

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D338136AC	Grille Radiator Centre	$1,536.53	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43403D62AA	SE UPR PNL VEN AIT	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F01991AB	PANEL VENT AIR LEFT HAND SIDE	$435.20	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F01990AC	PANEL VENT AIR RIGHT SIDE	$435.20	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43F01991AF	PNL VEN AIR LH	$488.83	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43F01990AF	PNL VEN AIR RH	$488.83	To Order

Photo	Part No	Description	Price (each)	Stock

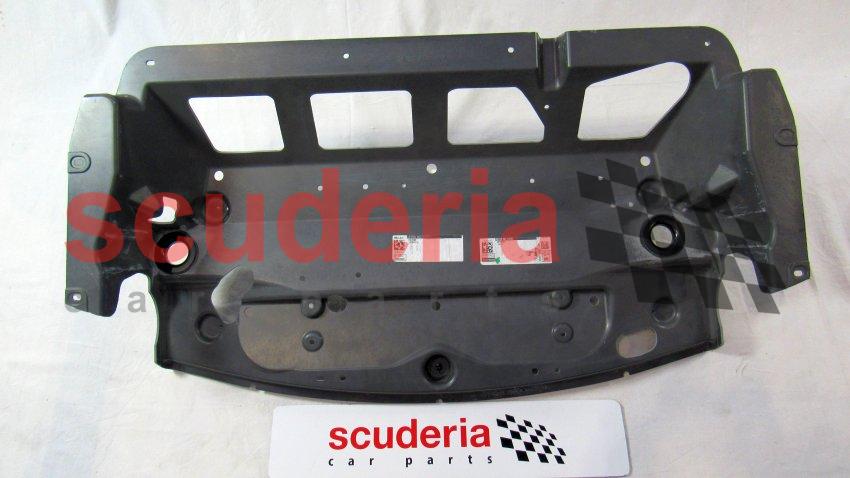

	4G438052AH	Radiator Support Lower	$837.53	To Order

Photo	Part No	Description	Price (each)	Stock
	8G432943751AB	Beam, Radiator Support Lower	$74.56	To Order

Photo	Part No	Description	Price (each)	Stock
	8G438052AD	CVR ASY - RAD SUPT LWR	$298.62	To Order

Photo	Part No	Description	Price (each)	Stock
	8G438052BA	CVR ASY - RAD SUPT LWR (MANUAL)	$298.62	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3342761AA	Foam Pad, Cover Assy Radiator Support	$80.00	To Order

Photo	Part No	Description	Price (each)	Stock
	AG43334610AA	BMPR INTF FOAM RH	$40.20	To Order

Photo	Part No	Description	Price (each)	Stock
	AG43334611AA	BMPR INTF FOAM LH	$40.20	To Order

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	$0.82	To Order

Photo	Part No	Description	Price (each)	Stock
	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	$3.92	To Order

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	$0.82	To Order

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	$0.82	To Order

Photo	Part No	Description	Price (each)	Stock
	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	$3.92	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	$5.40	To Order

Photo	Part No	Description	Price (each)	Stock
	200020135PK	Screw, M6 x 16, Flange Hex Head	$307.51	To Order

Photo	Part No	Description	Price (each)	Stock
	703139	Screw/Washer M8x20 Chrome Free	$3.42	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L41041AA	Edge Strip, Black 2 x 40	$11.34	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	8D338136AC	Grille Radiator Centre	8D338136AC Grille Radiator Centre	$1,536.53	1
2	4G43403D62AA	SE UPR PNL VEN AIT	4G43403D62AA SE UPR PNL VEN AIT	$3.32	2
3	4G43F01991AB	PANEL VENT AIR LEFT HAND SIDE	4G43F01991AB PANEL VENT AIR LEFT HAND SIDE	$435.20	1
4	4G43F01990AC	PANEL VENT AIR RIGHT SIDE	4G43F01990AC PANEL VENT AIR RIGHT SIDE	$435.20	1
5	8G43F01991AF	PNL VEN AIR LH	8G43F01991AF PNL VEN AIR LH 09MY	$488.83	1
6	8G43F01990AF	PNL VEN AIR RH	8G43F01990AF PNL VEN AIR RH 09MY	$488.83	1
7	4G438052AH	Radiator Support Lower	4G438052AH Radiator Support Lower	$837.53	1
8	8G432943751AB	Beam, Radiator Support Lower	8G432943751AB Beam, Radiator Support Lower 09MY	$74.56	1
9	8G438052AD	CVR ASY - RAD SUPT LWR	8G438052AD CVR ASY - RAD SUPT LWR 09MY	$298.62	1
10	8G438052BA	CVR ASY - RAD SUPT LWR (MANUAL)	8G438052BA CVR ASY - RAD SUPT LWR (MANUAL) 09MY	$298.62	1
11	8D3342761AA	Foam Pad, Cover Assy Radiator Support	8D3342761AA Foam Pad, Cover Assy Radiator Support 09MY	$80.00	2
12	AG43334610AA	BMPR INTF FOAM RH	AG43334610AA BMPR INTF FOAM RH 09MY	$40.20	1
13	AG43334611AA	BMPR INTF FOAM LH	AG43334611AA BMPR INTF FOAM LH 09MY	$40.20	1
14	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free	$0.82	30
15	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	703740 NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	$3.92	6
16	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free	$0.82	2
17	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free 09MY	$0.82	14
18	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	703740 NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG 09MY	$3.92	4
19	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) 09MY	$5.40	6
20	200020135PK	Screw, M6 x 16, Flange Hex Head	200020135PK Screw, M6 x 16, Flange Hex Head 09MY	$307.51	8
21	703139	Screw/Washer M8x20 Chrome Free	703139 Screw/Washer M8x20 Chrome Free 09MY	$3.42	8
22	4G43L41041AA	Edge Strip, Black 2 x 40	4G43L41041AA Edge Strip, Black 2 x 40 09MY	$11.34	1
