Wipers & Washers - Washer Bottle

Aston Martin GT VIRAGE (2012-2013)

Find Your Part

Aston Martin GT VIRAGE (2012-2013) - Wipers & Washers - Washer Bottle

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

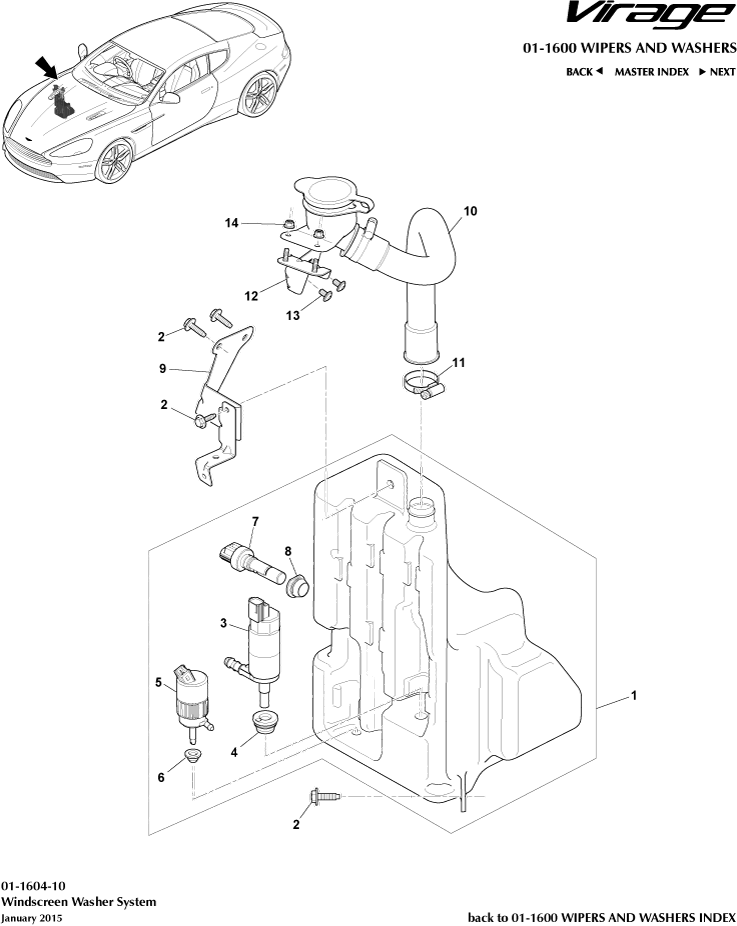

Wipers & Washers - Washer Bottle of Aston Martin Aston Martin GT VIRAGE (2012-2013) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G4317B613APIA001
WASH RESERVOIR ONLY
- 		- 1 Enquire
1 4G4317B613BA
Reservoir & Motor Assembly
No longer available. Please use individual Parts listed 		- 1 Enquire
2 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
Pack of 10 		- 5 Enquire
3 4G430110305
Pump Headlight Wash
- 		- 1 Enquire
4 1X4313K188AA
Grommet, Sealing Headlamp Pump
- 		- 1 Enquire
5 4G430110304

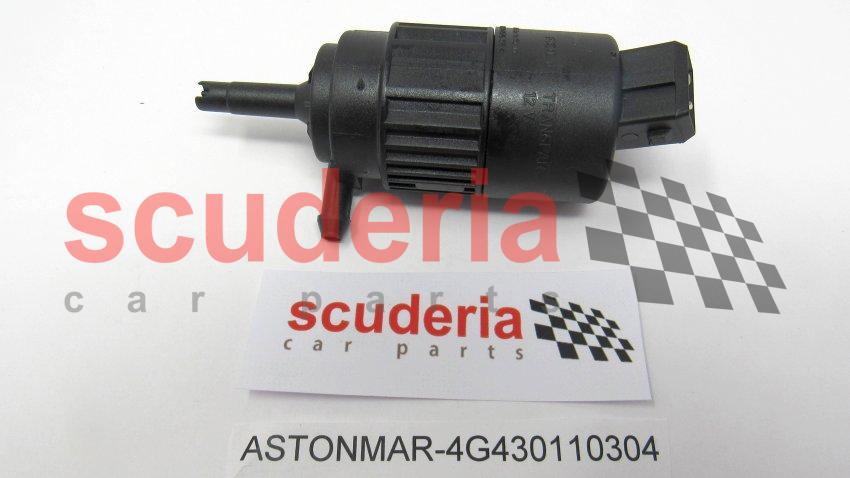

Motor & Pump, Windscreen Washer
- 		- 1 Enquire
6 1X4317673AA
Grommet, Sealing Windscreen Wash Pump
- 		- 1 Enquire
7 4G433710236
Water Low Level Sensor
Includes item 8 		- 1 Enquire
8 4G433710237
Seal, Low Level Sensor
No longer available 		- N/A Enquire
9 4G4317614AB
Bracket Assembly, Windshield Washer Reservoir Mounting
- 		- 1 Enquire
10 4G4313K175BA
Washer Reservoir Filler Neck Assembly
- 		- 1 Enquire
11 701562
Clamp, Worm Drive 30-45mm
- 		- 2 Enquire
12 4G4317C625AC
Bracket, Filler Neck
- 		- 1 Enquire
13 703266
Screw M6 x 10 Pan Head Torx
- 		- 2 Enquire
14 13A5568CP
BAFFLE MOULDING - B-POST - RH
- 		- 2 Enquire
