Body Exterior Trim & Ornamentation - Upper Exterior Finishers, Volante of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

Aston Martin GT VIRAGE (2012-2013) - Body Exterior Trim & Ornamentation - Upper Exterior Finishers, Volante

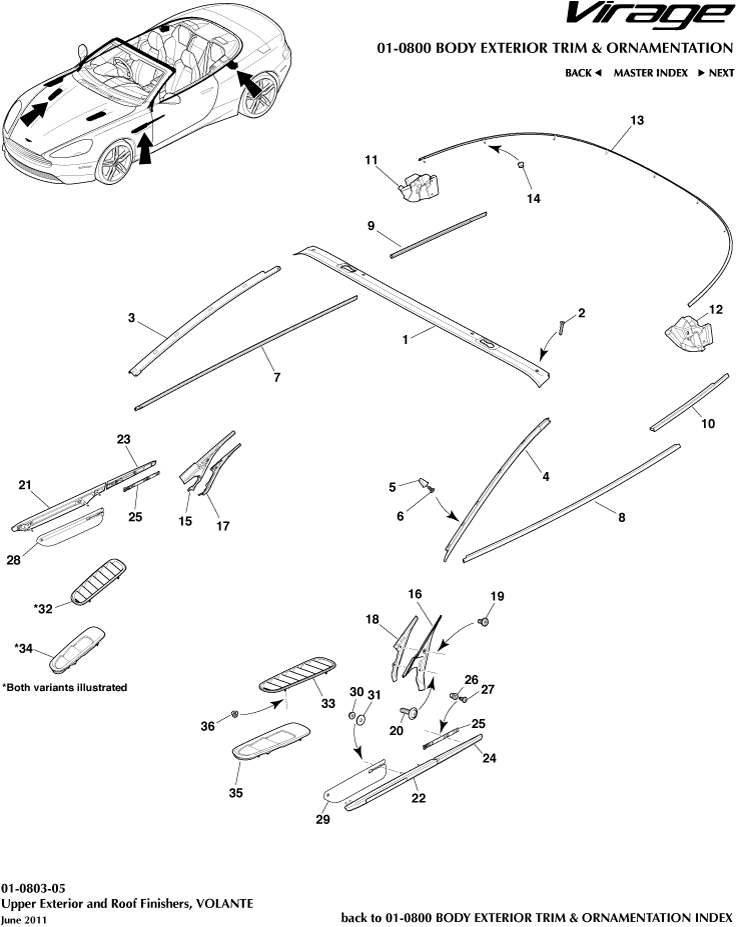

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD33L03065AC	FINISHER - FRT HDR	AD33L03065AC FINISHER - FRT HDR -	-	1	Enquire
2	AG43608073AA	SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK	AG43608073AA SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK -	-	4	Enquire
5	9G3351756AA	Rivnut, M5 Closed Hex	9G3351756AA Rivnut, M5 Closed Hex -	-	10	Enquire
6	4G4351757AA	Screw M4 Self Tap M4 (Mini C Rail)	4G4351757AA Screw M4 Self Tap M4 (Mini C Rail) -	-	10	Enquire
7	4G43F20562BA	Weatherstrip, Front Door Outer, RH	4G43F20562BA Weatherstrip, Front Door Outer, RH -	-	1	Enquire
8	4G43F20563BA	Weatherstrip, Front Door Outer, LH	4G43F20563BA Weatherstrip, Front Door Outer, LH -	-	1	Enquire
9	9G431228494CA	Weatherstrip, Rear Quarter Glass outer, RH	9G431228494CA Weatherstrip, Rear Quarter Glass outer, RH -	-	1	Enquire
10	9G431228495CA	Weatherstrip Rear Quarter Glass Outer LH	9G431228495CA Weatherstrip Rear Quarter Glass Outer LH -	-	1	Enquire
11	4G43A410K24BE	Bracket, Panel Rear Body Pillar Closing, RH	4G43A410K24BE Bracket, Panel Rear Body Pillar Closing, RH -	-	1	Enquire
12	4G43A410K25BE	Bracket, Panel Rear Body Pillar Closing, LH	4G43A410K25BE Bracket, Panel Rear Body Pillar Closing, LH -	-	1	Enquire
13	4G431228494DA	TONNEAU FIN SCALP	4G431228494DA TONNEAU FIN SCALP -	-	1	Enquire
14	708867	P/SMPL-SILVER FOX	708867 P/SMPL-SILVER FOX -	-	9	Enquire
15	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH	4G43C02564BD Retainer Assy, Front Body W/Strip Cover Primary, RH -	-	1	Enquire
16	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	4G43C02565BD Retainer Assy, Front Body W/Strip Cover Primary, LH -	-	2	Enquire
17	4G43C02564AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	4G43C02564AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH -	-	1	Enquire
18	4G43C02565AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	4G43C02565AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH -	-	1	Enquire
20	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head -	-	2	Enquire
21	CG43280K62AB	Side Strake, Fender, RH	CG43280K62AB Side Strake, Fender, RH -	-	1	Enquire
22	CG43280K63AB	Side Strake, Fender, LH	CG43280K63AB Side Strake, Fender, LH -	-	1	Enquire
23	CG43018K28AC	Side Strake, Door, RH	CG43018K28AC Side Strake, Door, RH -	-	1	Enquire
24	CG43018K29AC	Side Strake, Door, LH	CG43018K29AC Side Strake, Door, LH -	-	1	Enquire
25	CG430937AC	Retainer, Door Side Strake	CG430937AC Retainer, Door Side Strake -	-	2	Enquire
26	AD43E620011AB	M5 HEX OPEN RIVNUT	AD43E620011AB M5 HEX OPEN RIVNUT -	-	6	Enquire
27	6G3351756AA	SC M5X13 PN HD	6G3351756AA SC M5X13 PN HD -	-	6	Enquire
28	CG43280B83AC	Mesh, Side Strake, Black, RH	CG43280B83AC Mesh, Side Strake, Black, RH Black	-	1	Enquire
28	CG43280B83BC	MESH SIDE STRAKE RH	CG43280B83BC MESH SIDE STRAKE RH Titanium	-	1	Enquire
29	CG43280B84AC	Mesh, Side Strake, Black, LH	CG43280B84AC Mesh, Side Strake, Black, LH Black	-	1	Enquire
29	CG43280B84BC	MESH SIDE STRAKE LH	CG43280B84BC MESH SIDE STRAKE LH Titanium	-	1	Enquire
30	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	8	Enquire
31	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 -	-	2	Enquire
32	AD4316C692AA	Louvre, Hood, RH	AD4316C692AA Louvre, Hood, RH -	-	1	Enquire
33	AD4316C693AA	Louvre, Hood, LH	AD4316C693AA Louvre, Hood, LH -	-	1	Enquire
34	11A8456CP	MOTOR - DOOR MIRROR GLASS - LH	11A8456CP MOTOR - DOOR MIRROR GLASS - LH -	$119.41	1
35	13A4871CP	Seal - Door Mirror - Mount - RH	13A4871CP Seal - Door Mirror - Mount - RH -	$35.68	1
36	700242	SCREW M5 X 16 PAN HEAD BLACK	700242 SCREW M5 X 16 PAN HEAD BLACK -	-	8	Enquire
