Front Lightweight Seats

Aston Martin GT VIRAGE (2012-2013)

Find Your Part

Aston Martin GT VIRAGE (2012-2013) - Front Lightweight Seats

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

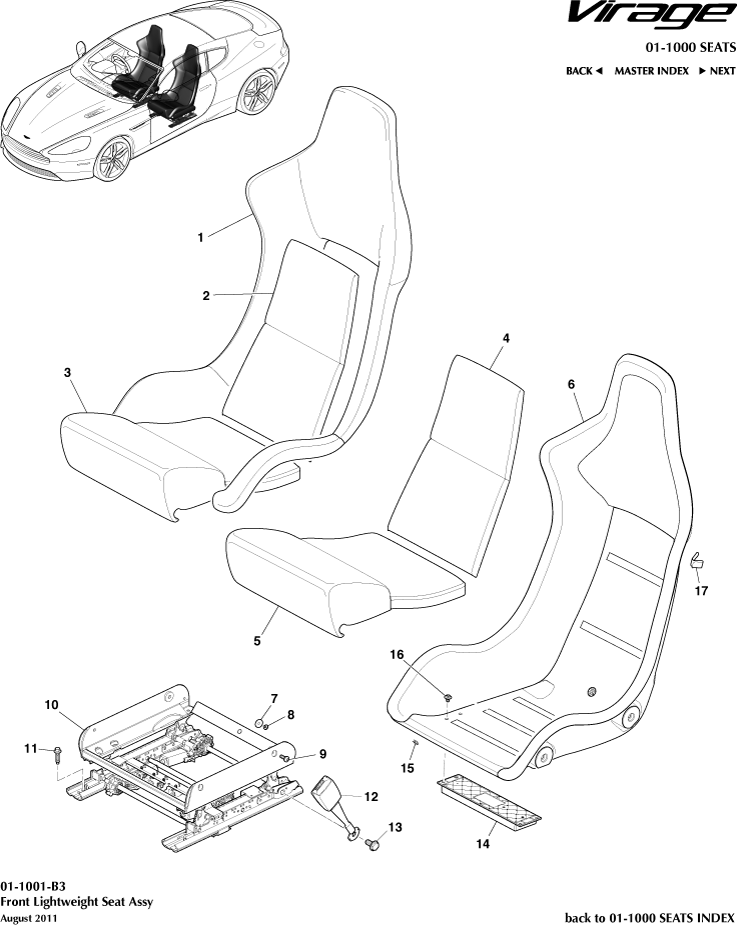

Front Lightweight Seats of Aston Martin Aston Martin GT VIRAGE (2012-2013) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CG4360008BCW
Front Seat Assembly Complete, Trimmed, RH
- 		- 1 Enquire
- CG4360009BCW
Front Seat Assembly Complete, Trimmed, LH
- 		- 1 Enquire
- CG43600C14AA
Front Seat and Track Assembly, Not Trimmed
- 		- 1 Enquire
- SY9Y044E37DCW
ASSY LWR PASS MIDL P
- 		- 2 Enquire
1 13A4912CP
Internal Arm - Door Mirror - LH
- 		$153.07 1
2 14A3463CP
SCALP-RH-PAINTED-CCC
- 		$81.63 1
3 CG4364572BAW
Cover Assembly, Seat Outer
- 		- 2 Enquire
4 NSS
 Seat Belt Loops Frt/ Rear and Left/Right
- 		- 1 Enquire
5 NSS
 Seat Belt Loops Frt/ Rear and Left/Right
- 		- 1 Enquire
6 00RB218
Clip - Finisher - Rear Quarter Glass
- 		- 2 Enquire
7 00RB218
Clip - Finisher - Rear Quarter Glass
- 		- 2 Enquire
8 00RB218
Clip - Finisher - Rear Quarter Glass
- 		- 2 Enquire
9 SY9Y10160AA
M8X1.25X110 HEX FLAN
- 		- 4 Enquire
10 4G437410116
Track Assembly, Front Lightweight Seat
- 		- 2 Enquire
11 SY9Y10677AA
SD DR ELATCH CAB COV
- 		- 4 Enquire
12 4G43613K22BD
Buckle Assembly, Front Seatbelt
- 		- 1 Enquire
13 SY9YC025B39CBW
A PILLAR ASSY LH ROW
- 		- 1 Enquire
14 CG4314C249BA
SEAT ECU
- 		- 2 Enquire
15 00RB218
Clip - Finisher - Rear Quarter Glass
- 		- 8 Enquire
16 8D3360302BA
EDGE CLIP
- 		- 3 Enquire
17 SY9Y045A13DBW
RR CONSOLE UPPER ASY
- 		- 2 Enquire
