Front Bumper

Aston Martin GT VIRAGE (2012-2013)

Find Your Part

Aston Martin GT VIRAGE (2012-2013) - Front Bumper

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

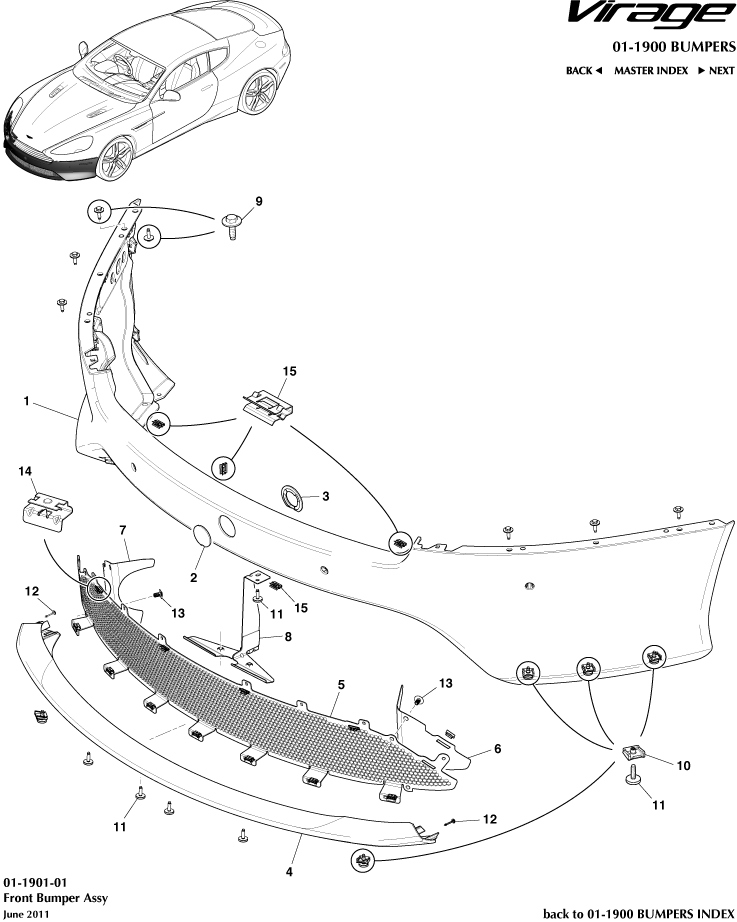

Front Bumper of Aston Martin Aston Martin GT VIRAGE (2012-2013) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CG4317D957DC
CVR ASY FRT BMPR
Federal 		- 1 Enquire
- CG4317D957AC
COVER ASSY FRONT BUMPER WORLD ROW
RoW 		- 1 Enquire
- CG4317D957BC
CVR ASY FRT BMPR FED
Federal 		- 1 Enquire
- 00RL023
CABLE TIE - HIGH TEMP
- 		- - Enquire
- CG438156BC
MESH LWR FRT GRILLE
Titanium Silver 		- 1 Enquire
- CG438156CA
Mesh, Lower Front Grille, Magnum Silver
Magnum Silver 		- 1 Enquire
1 CG4317D957CC
COVER ASSY FRONT BUMPER WORLD PDC
RoW 		- 1 Enquire
2 4G4317C832BA
Front Bumper Cover Cap
- 		- 1 Enquire
3 4G4317C832CB
Cover Front Bumper Cap Assy Rear
- 		- 1 Enquire
4 CG4317626AB
FRONT LOWER SPOILER
- 		- 1 Enquire
5 CG438156AC
Mesh, Lower Front Grille, Black
Black 		- 1 Enquire
6 CG4317E811AA
Blanking Panel, Lower Mesh LH
- 		- 1 Enquire
7 CG4317E810AA
Blanking Panel, Lower Mesh RH
- 		- 1 Enquire
8 CG4317630AA
SPLITTER CTR BKT ASY
- 		- 1 Enquire
9 703152PK
Screw & Washer M6 x 20 Hex Head (Pack of 10)
- 		- 8 Enquire
10 7G4310609EAA
CLIP SPG M6
- 		- 8 Enquire
11 6G33FA0115AB
Screw & Washer, M6 x 20, Torx Hd
- 		- 14 Enquire
12 CG43504691AA
Screw ST 4.5X25 Washer - 6 Lobe
- 		- 2 Enquire
13 1R12642790AA
SCRIVET
- 		- 4 Enquire
14 4G4317F773AB
RET GRILLE BUMPER
- 		- 14 Enquire
15 4G438191AA
CLIP BUMPER RAD GRL
- 		- 4 Enquire
