Interior Trim & Ornamentation - Load Compartment Trim, Volante

Aston Martin GT VIRAGE (2012-2013)

Find Your Part

Aston Martin GT VIRAGE (2012-2013) - Interior Trim & Ornamentation - Load Compartment Trim, Volante

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

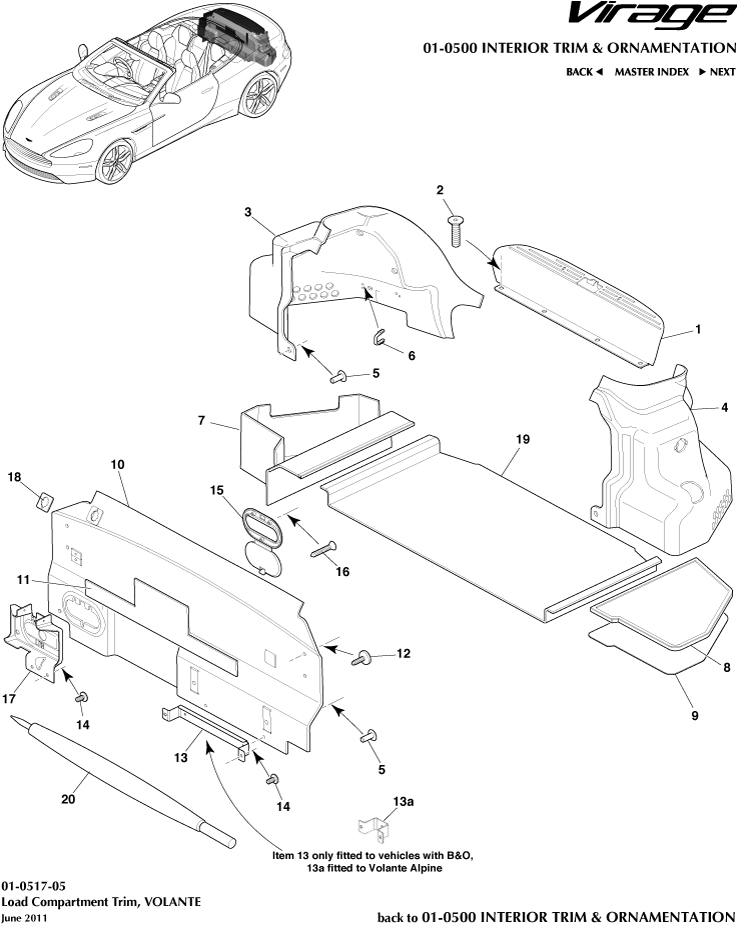

Interior Trim & Ornamentation - Load Compartment Trim, Volante of Aston Martin Aston Martin GT VIRAGE (2012-2013) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G43L45445BCW
Back Board, Loadspace
B&O FED 		- 1 Enquire
- 4G43L45444AD
LOADSPACE BACKBOARD ASSY - CONV
Alpine 		- 1 Enquire
1 4G43L42626AB
REAR LOADSPACE SCUFF PLATE - CONV
- 		- 1 Enquire
2 4G433L657AA
Screw, M5 x 20, Countersunk, Black
- 		- 4 Enquire
3 4G43L45423AB
LHS LOADSPACE MOULDED CARPET CONV
- 		- 1 Enquire
4 4G43L45422AE
Carpet assy, luggage compartment side, RH
- 		- 1 Enquire
7 4G43L454K64AB
LHS FLOOR CARPET ASSEMBLY - CONV
- 		- 1 Enquire
8 11A8422CP
MIRROR GLASS ASSEMBLY - CONVEX - RH
- 		$393.73 1
9 11A8426CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - CONVEX - RH
- 		$310.64 1
10 9G43L45445ACW
LOADSPACE BACKBOARD ASSY - CONV
B&O ROW 		- 1 Enquire
11 11A8430CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH
- 		- 1 Enquire
12 6G33FA0115AB
Screw & Washer, M6 x 20, Torx Hd
- 		- 4 Enquire
13 9G43130C62AA
Bracket, Luggage compartment, front
B&O 		- 1 Enquire
13a 4G43L454A21AA
Bracket, Boot Front Boad Support
ALPINE 		- 1 Enquire
14 22AB727GP
SEAL BONNET MARGIN MLD RH
- 		- 2 Enquire
15 4G4313A752AC
LOAD COMPARTMENT SWITCH PLATE - LID
- 		- 1 Enquire
16 703726
Screw, No 8 x 25, Countersunk
- 		- 3 Enquire
17 4G43L43660AE
LOADSPACE POWER / BATTERY SWITCH PLATE
- 		- 1 Enquire
18 4G43L40170AA
Grommet, Reinforcement
- 		- 1 Enquire
19 4G4345456CC
LOADSPACE CARPET CTR - COUPE
- 		- 1 Enquire
20 7G43700712BB
AML BLK STD UMBRELLA
- 		- 1 Enquire
