Instrument And Console Panels - Centre Stack Trim Panel

Aston Martin GT VIRAGE (2012-2013)

Find Your Part

Aston Martin GT VIRAGE (2012-2013) - Instrument and Console Panels - Centre Stack Trim Panel

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

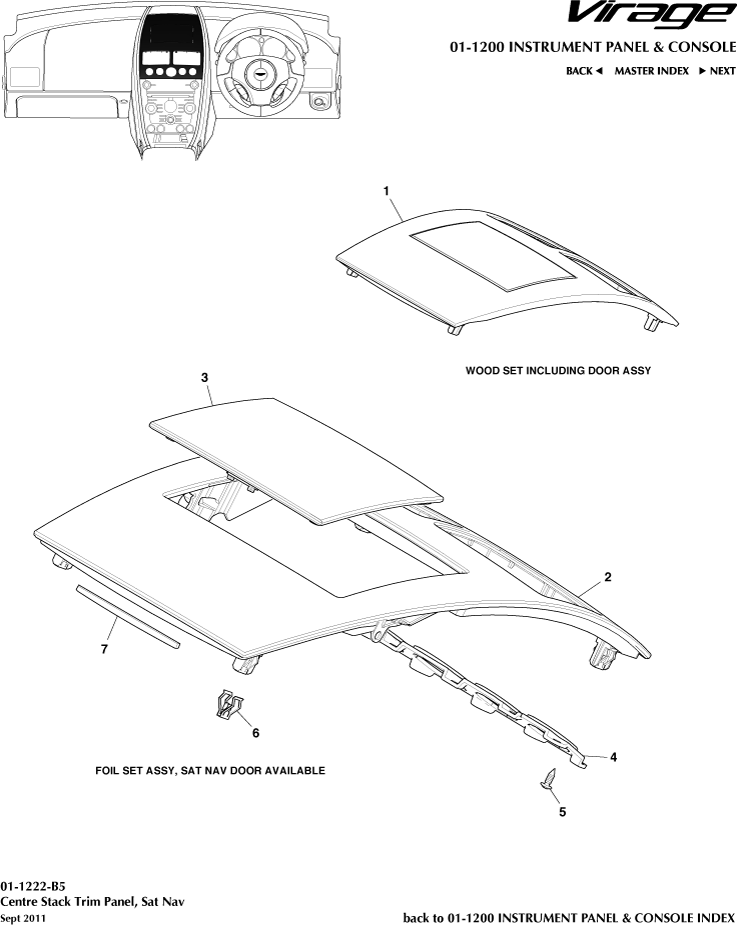

Instrument and Console Panels - Centre Stack Trim Panel of Aston Martin Aston Martin GT VIRAGE (2012-2013) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CG43045J10SB
NAV SURROUND - ASH
- 		- 1 Enquire
- CG43045J10BB
NAV SURROUND -MAH
- 		- 1 Enquire
- CG43045J10CB
NAV SURROUND -BAMBO
- 		- 1 Enquire
- 22AA722GP
MLDG BASE DOOR MIRROR COVER LWR LH
- 		$21.68 1
- CG43045J10GB
BXL ASY I/PNL CTRL
- 		- 1 Enquire
- CG43045J10VB
BZL ASY I/PNL CONTR
- 		- 1 Enquire
- CG43045J10HB
BZL ASSY I/PNL CTRL
- 		- 1 Enquire
- CG43045J10JB
BZL ASY I/PNL CTRL
- 		- 1 Enquire
- CG43045J10RB
BZL ASY I/PNL CONTR
- 		- 1 Enquire
- CG33045J10AA
VNR NAV AUTO BLK
Dragon 88 		- 1 Enquire
- 13A2049CP
Cover - Door Mirror Base - Lower - LH
- 		$31.27 1
- 00RA140
SCREW - 3X8 - TORX
- 		- 1 Enquire
- 00RA363
SCREW - TORX - 4X12
- 		- 1 Enquire
- AG43045G37AA
DOOR CONSOLE NAV
- 		- 1 Enquire
- 8D3314A462AJ
RETAINER CONTROL SWITCH - VENEER
- 		- 1 Enquire
- CG43204A34AB
Clip, Console Tether Strap
- 		- 2 Enquire
- 00RA374
SCREW - TORX - 3.5X12
- 		- 1 Enquire
1 CG43045J10AB
NAV SURROUND -WALNUT
- 		- 1 Enquire
2 13A2055CP
Cover - Door Mirror Base - Lower - RH
- 		$31.27 1
3 AD43045G37AA
DOOR CONSOLE NAV NEXUS ALLOY
- 		- 1 Enquire
4 8D3314A462BH
RETAINER CONTROL SWITCH - FOIL
- 		- 1 Enquire
5 703178
M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE
- 		- 12 Enquire
6 702520
CLIP 8.5x16x1.7 TRIM
- 		- 4 Enquire
7 CG43F46970AA
Foam Strip, 90mm x 5mm x 3mm
- 		- 1 Enquire
