Aston Martin GT VIRAGE (2012-2013) - Handles & Locks Mechanisms - Outer Handles & Actuation

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

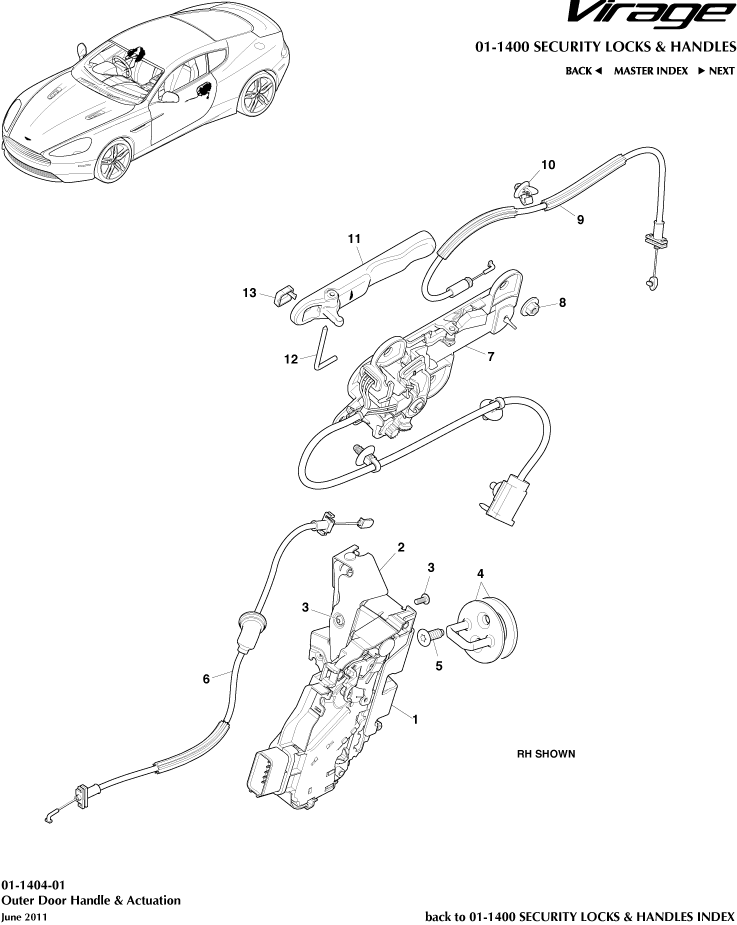

Handles & Locks Mechanisms - Outer Handles & Actuation of Aston Martin Aston Martin GT VIRAGE (2012-2013) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8G4321813AA
LT ASY FRT DR DB LK
- 		- 1 Enquire
- 4G43F219B09AA
SHIELD DR LATCH LH
- 		- 1 Enquire
- 703981
SCREW-M4x10 TORX PAN TAP
- 		- 2 Enquire
- CD3322405AC
Handle Blade Assy, LH
Carbon 		- 1 Enquire
- CD3322404AC
Handle Blade Assy, RH
Carbon 		- 1 Enquire
1 8G4321812AA
LT ASSY FT DR DB LK
- 		- 1 Enquire
2 4G43F219B08AA
SHIELD DR LAT RH
- 		- 1 Enquire
3 703746
SCREW-M6x16 PAN TORX
- 		- 2 Enquire
4 8D33F21982BA
SIDE DR LTCH STRK USE WHEN ADJUST REQ OUTSIDE NORM RAN
- 		- 2 Enquire
5 700610
SCREW M8x25 FLAT CSK PIL 10.9
- 		- 2 Enquire
6 4G43F218A01CB
CABLE ASSY FRT DR
- 		- 2 Enquire
7 7G43226A28AF
HANDLE DOOR EXT FRT
- 		- 2 Enquire
8 703612
Nut & Washer, M6, HVAC to XCB
- 		- 6 Enquire
9 4G43221A00CA
CABLE ASSY FRT DR
- 		- 2 Enquire
10 4G436510059
CLIP-FIRTREE 5x6.5x2
- 		- 2 Enquire
11 SY9Y9142DA
HTS BRKT
Standard 		- 2 Enquire
12 4G43224A68AA
Pivot Pin, Outside Handle
- 		- 2 Enquire
13 4G43224A72AG
DUMMY LIGHT LENS
- 		- 2 Enquire
