Interior Trim & Ornamentation - NVH Pads, Volante of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

Aston Martin GT VIRAGE (2012-2013) - Interior Trim & Ornamentation - NVH Pads, Volante

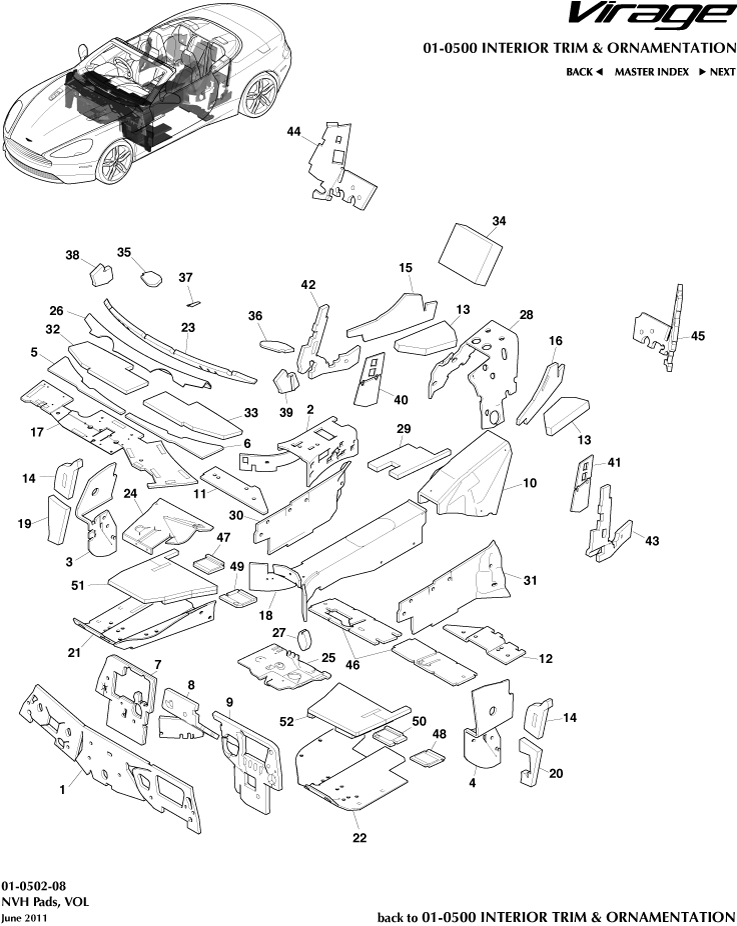

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8G43002K05AA	BAFFLE BODY FRONT PANEL LHD RH	8G43002K05AA BAFFLE BODY FRONT PANEL LHD RH LHD	-	1	Enquire
-	8G43015A23AA	BAFFLE BODY FRONT PANEL LHD LH	8G43015A23AA BAFFLE BODY FRONT PANEL LHD LH LHD	-	1	Enquire
-	4G4300152AG	LHD UNDER WIPER MOTOR NVH	4G4300152AG LHD UNDER WIPER MOTOR NVH LHD	-	1	Enquire
-	4G4311455BH	Insulation Assembly, Front Floor Pan Sound, RH, LHD	4G4311455BH Insulation Assembly, Front Floor Pan Sound, RH, LHD LHD	-	1	Enquire
-	4G4311455AH	Insulation Assembly, Front Floor Pan Sound, LH, LHD	4G4311455AH Insulation Assembly, Front Floor Pan Sound, LH, LHD LHD	-	1	Enquire
-	4G4311455BH	Insulation Assembly, Front Floor Pan Sound, RH, LHD	4G4311455BH Insulation Assembly, Front Floor Pan Sound, RH, LHD -	-	1	Enquire
-	4G4311455AH	Insulation Assembly, Front Floor Pan Sound, LH, LHD	4G4311455AH Insulation Assembly, Front Floor Pan Sound, LH, LHD -	-	1	Enquire
2	8G4311446AB	Insulation, Sound, Floor Pan Gear Shift Cover	8G4311446AB Insulation, Sound, Floor Pan Gear Shift Cover -	-	1	Enquire
7	8G43002K06AB	BAFFLE BODY FRONT PANEL RHD RH	8G43002K06AB BAFFLE BODY FRONT PANEL RHD RH RHD	-	1	Enquire
9	8G43015A22AB	BAFFLE BODY FRONT PANEL RHD LH	8G43015A22AB BAFFLE BODY FRONT PANEL RHD LH RHD	-	1	Enquire
14	4G4328112AB	NVH FOAM PAD ASY FNDR RH UPR	4G4328112AB NVH FOAM PAD ASY FNDR RH UPR -	-	2	Enquire
17	4G4300152BG	RHD UNDER WIPER MOTOR NVH	4G4300152BG RHD UNDER WIPER MOTOR NVH RHD	-	1	Enquire
19	4G4328110AB	NVH FOAM PAD ASY FNDR RH LWR	4G4328110AB NVH FOAM PAD ASY FNDR RH LWR -	-	1	Enquire
20	4G4328111AB	NVH FOAM PAD ASY FNDR LH LWR	4G4328111AB NVH FOAM PAD ASY FNDR LH LWR -	-	1	Enquire
24	4G4311454BH	Insulation Assembly, Front Floor Pan Sound, RH, RHD	4G4311454BH Insulation Assembly, Front Floor Pan Sound, RH, RHD RHD	-	1	Enquire
25	4G4311454AH	Insulation Assembly, Front Floor Pan Sound, LH, RHD	4G4311454AH Insulation Assembly, Front Floor Pan Sound, LH, RHD RHD	-	1	Enquire
26	6G3368066AC	NVH DASH FOAM UNDER SIDE CAVITY ASSY	6G3368066AC NVH DASH FOAM UNDER SIDE CAVITY ASSY -	-	1	Enquire
35	9G43046B72AA	Insulation, I/ panel radio speaker opening, RH	9G43046B72AA Insulation, I/ panel radio speaker opening, RH -	-	1	Enquire
36	9G43046B73AA	Insulation, I/ pnl radio speaker opening, LH	9G43046B73AA Insulation, I/ pnl radio speaker opening, LH -	-	1	Enquire
37	51165B682C7	Trim, USB port	51165B682C7 Trim, USB port -	-	1	Enquire
42	AD33L27746AC	Insulation, quarter panel front side, RH	AD33L27746AC Insulation, quarter panel front side, RH -	-	1	Enquire
43	00RB196	CLIP - NUT STRAP - 4.2X0.8	00RB196 CLIP - NUT STRAP - 4.2X0.8 -	-	1	Enquire
45	AD33L31181AC	REAR BULKHEAD NVH LH	AD33L31181AC REAR BULKHEAD NVH LH -	-	1	Enquire
46	4G43111C73AE	Kit, Insulation Assembly, Sound Centre Floor Pan	4G43111C73AE Kit, Insulation Assembly, Sound Centre Floor Pan -	-	1	Enquire
47	6G33114B32AA	RH OUT INS FOAM	6G33114B32AA RH OUT INS FOAM -	-	1	Enquire
48	6G33114B33AA	LH OUT INS FOAM	6G33114B33AA LH OUT INS FOAM -	-	1	Enquire
49	6G33114A42AA	RH INN INS FOAM	6G33114A42AA RH INN INS FOAM -	-	1	Enquire
50	6G33114A43AA	LH INN INS FOAM	6G33114A43AA LH INN INS FOAM -	-	1	Enquire
51	4G4311454BH	Insulation Assembly, Front Floor Pan Sound, RH, RHD	4G4311454BH Insulation Assembly, Front Floor Pan Sound, RH, RHD -	-	1	Enquire
52	4G4311454AH	Insulation Assembly, Front Floor Pan Sound, LH, RHD	4G4311454AH Insulation Assembly, Front Floor Pan Sound, LH, RHD -	-	1	Enquire
