Interior Trim & Ornamentation - Main Floor Trim, LHD, B&O of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

Aston Martin GT VIRAGE (2012-2013) - Interior Trim & Ornamentation - Main Floor Trim, LHD, B&O

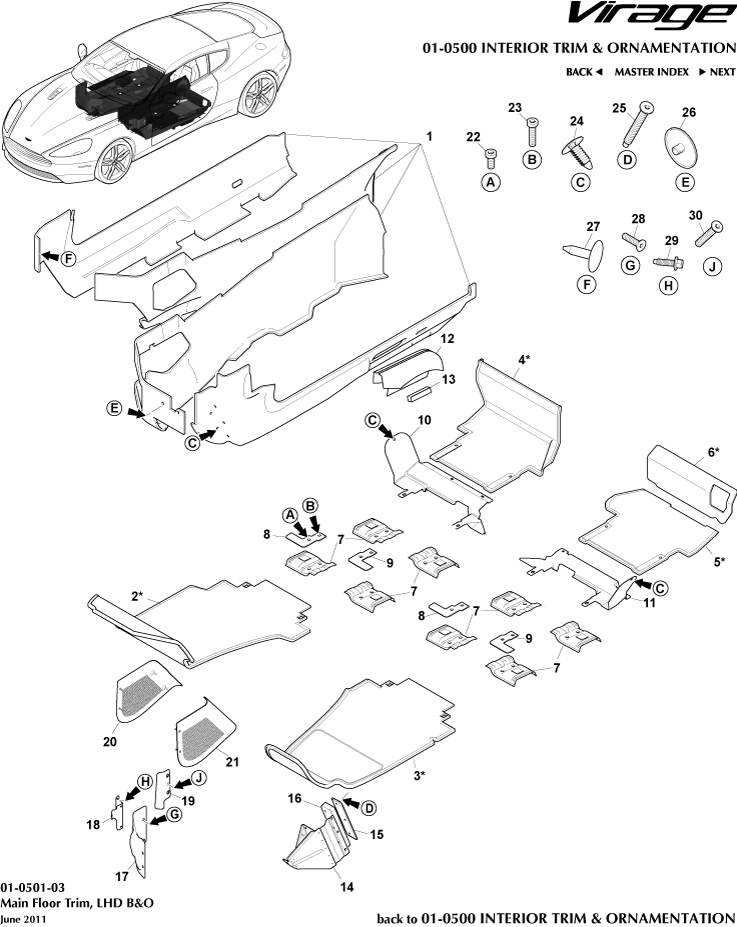

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
*	8G43281B13ADW	KIT ASY-FLR CRPT LHD	8G43281B13ADW KIT ASY-FLR CRPT LHD -	-	1	Enquire
-	6G33100N00AA	Adhesive Tape, Double Sided	6G33100N00AA Adhesive Tape, Double Sided -	-	-	Enquire
1	9D33281B11DFW	Kit assy, side carpet RHD	9D33281B11DFW Kit assy, side carpet RHD -	-	1	Enquire
2*	22AD733GP	ELECTRIC HATCH LID	22AD733GP ELECTRIC HATCH LID -	$135.45	1
3*	22AB528GP	SHIM TAILGATE HINGE 0.5MM	22AB528GP SHIM TAILGATE HINGE 0.5MM -	$7.66	1
4*	4G43130A36ACW	Carpet Assembly, Rear Floor RH	4G43130A36ACW Carpet Assembly, Rear Floor RH -	-	1	Enquire
5*	11A4539CP	ADHESIVE - SEMI-STRUCTURAL - DP620 - 400CC	11A4539CP ADHESIVE - SEMI-STRUCTURAL - DP620 - 400CC -	$330.56	1
6*	8G4310K973ABW	Carpet Heelboard Assembly, Rear LH	8G4310K973ABW Carpet Heelboard Assembly, Rear LH -	-	1	Enquire
7	6G33M1H403AA	Cover, Floor Pan	6G33M1H403AA Cover, Floor Pan -	-	8	Enquire
8	6G33666A40AB	Finisher, Carpet, Common, RHS	6G33666A40AB Finisher, Carpet, Common, RHS -	-	4	Enquire
9	6G33666A41AB	Finisher, Carpet, Common, LHS	6G33666A41AB Finisher, Carpet, Common, LHS -	-	4	Enquire
10	4G43100A90AA	Support Panel, Rear Floor, RH	4G43100A90AA Support Panel, Rear Floor, RH -	-	1	Enquire
11	8G43100A91AB	LH REAR FLOOR SUPPORT	8G43100A91AB LH REAR FLOOR SUPPORT -	-	1	Enquire
12	4G43831237ABW	HANDBRAKE GAITER ASSY LHD	4G43831237ABW HANDBRAKE GAITER ASSY LHD -	-	1	Enquire
13	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	4G43M4D4515AA Foam Strip, Handbrake Gaiter -	-	1	Enquire
14	4G433N328BE	Bracket, Foot Rest	4G433N328BE Bracket, Foot Rest -	-	1	Enquire
15	9G4312020BA	LHD FOOTREST TOP PAD ASSY	9G4312020BA LHD FOOTREST TOP PAD ASSY -	-	1	Enquire
16	4G43044J09AC	ENERY ABSORBING BLOCK LHD FOOTREST	4G43044J09AC ENERY ABSORBING BLOCK LHD FOOTREST -	-	1	Enquire
17	4G4318449BD	ACCELERATOR SCUFF PLATE LHD	4G4318449BD ACCELERATOR SCUFF PLATE LHD -	-	1	Enquire
18	4G432B099AD	Mounting Bracket, Accelerator Scuff Plate, LH	4G432B099AD Mounting Bracket, Accelerator Scuff Plate, LH -	-	1	Enquire
19	9D33201A49AA	Sheild, Speaker Grille Protection LH	9D33201A49AA Sheild, Speaker Grille Protection LH -	-	1	Enquire
20	9D33311A76CA	Speaker Grille, Footwell, RH, B&O	9D33311A76CA Speaker Grille, Footwell, RH, B&O -	-	1	Enquire
21	9D33311A77CA	Speaker Grille, Footwell, LH, B&O	9D33311A77CA Speaker Grille, Footwell, LH, B&O -	-	1	Enquire
22	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head -	-	4	Enquire
23	6G3368D11BA	Screw, M5 x 20, Cap Head	6G3368D11BA Screw, M5 x 20, Cap Head -	-	4	Enquire
24	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) 20 per pack	-	4	Enquire
25	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK -	-	3	Enquire
26	697564	Retainer, Push On	697564 Retainer, Push On -	-	3	Enquire
27	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) 20 per pack	-	1	Enquire
28	4G433L657AA	Screw, M5 x 20, Countersunk, Black	4G433L657AA Screw, M5 x 20, Countersunk, Black -	-	4	Enquire
29	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head -	-	3	Enquire
30	703725	SCREW-M4x10 FLAT CSK SOCKET-STAINLESS STL	703725 SCREW-M4x10 FLAT CSK SOCKET-STAINLESS STL -	-	1	Enquire
