Body Structure - Body Dash & Cowl, Volante of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

Aston Martin GT VIRAGE (2012-2013) - Body Structure - Body Dash & Cowl, Volante

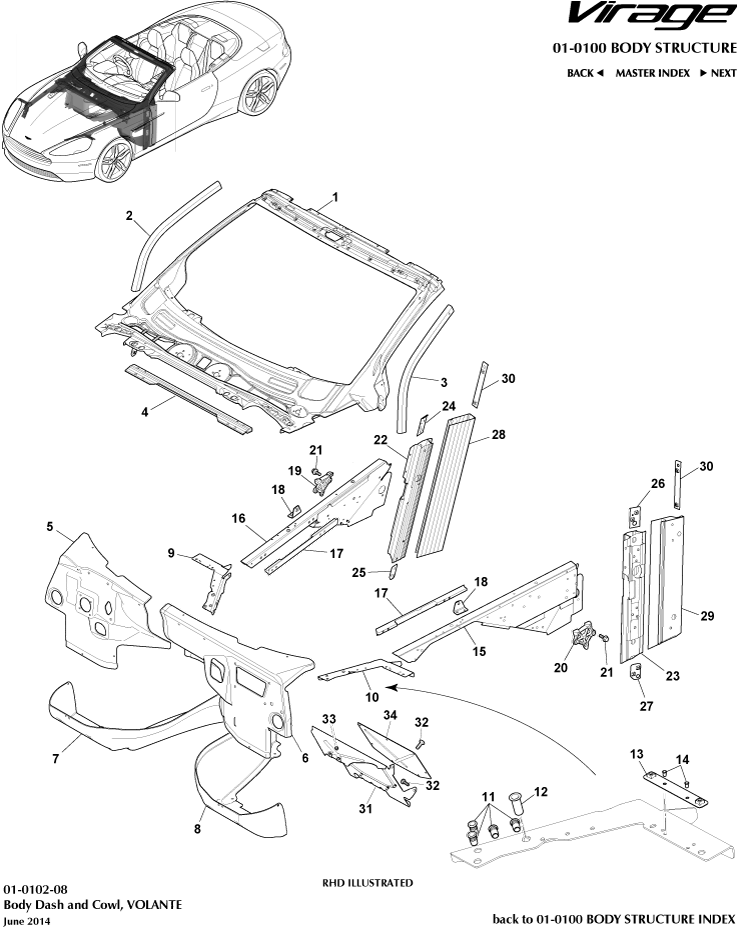

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G33L03014AE	FRAME ASSEMBLY WINDSHIELD	6G33L03014AE FRAME ASSEMBLY WINDSHIELD Structural Cat. A only	-	1	Enquire
-	22AB325GP	TAILGATE COOLING AIR DUCT LH	22AB325GP TAILGATE COOLING AIR DUCT LH Structural Cat. A only	-	1	Enquire
-	8G4316431AA	REINF HOOD STRIKER PLATE LH	8G4316431AA REINF HOOD STRIKER PLATE LH Structural Cat. A only	-	1	Enquire
1	SY9Y13W030BC	H/LAMP LHS LHD	SY9Y13W030BC H/LAMP LHS LHD Structural Cat. A only	-	1	Enquire
3	22AA651GP	UPPER TRIM TAILGATE MACHINED	22AA651GP UPPER TRIM TAILGATE MACHINED Structural Cat. A only	-	1	Enquire
4	AG3310414AA	MEMBER FRONT CS AT DH	AG3310414AA MEMBER FRONT CS AT DH Structural Cat. A only	-	1	Enquire
5	6G33F01760AB	PANEL DASH UPPER RH	6G33F01760AB PANEL DASH UPPER RH Structural Cat. A only	-	1	Enquire
6	6G33F01760BB	PANEL DASH UPPER RH	6G33F01760BB PANEL DASH UPPER RH 1 per rail.Structural Cat. A only	-	2	Enquire
7	6G33F01761AB	PANEL DASH UPPER LH	6G33F01761AB PANEL DASH UPPER LH Structural Cat. A only	-	1	Enquire
8	6G33F01761BB	PANEL DASH UPPER LH	6G33F01761BB PANEL DASH UPPER LH Structural Cat. A only	-	1	Enquire
9	22AB017GP	ASSY PNL TAILGATE OTR	22AB017GP ASSY PNL TAILGATE OTR Structural Cat. A only	-	1	Enquire
10	8G4316430AA	REINF HOOD STRIKER PLATE RH	8G4316430AA REINF HOOD STRIKER PLATE RH Structural Cat. A only	-	1	Enquire
11	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni 4 per striker plate	-	8	Enquire
12	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni 1 per striker plate	-	2	Enquire
13	8G43199901AA	Nutplate, M6 Headlamp Bracket	8G43199901AA Nutplate, M6 Headlamp Bracket -	-	2	Enquire
14	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 2 per nut plate	-	4	Enquire
15	4G432010882	SUPPORT ARM ASSY- FRT WING LH-DB9	4G432010882 SUPPORT ARM ASSY- FRT WING LH-DB9 Structural Cat. A only	-	1	Enquire
16	4G432010881	SUPPORT ARM ASSY- FRT WING RH-DB9	4G432010881 SUPPORT ARM ASSY- FRT WING RH-DB9 Structural Cat. A only	-	1	Enquire
17	GOAG3317F790AA	NUTPLATE SHOTGUN M10	GOAG3317F790AA NUTPLATE SHOTGUN M10 -	-	2	Enquire
19	CG4316A681AB	RH REINF HOOD HINGE ON BODY RH	CG4316A681AB RH REINF HOOD HINGE ON BODY RH -	-	1	Enquire
20	CG4316A682AB	LH RNF HOOD HINGE ON BODY LH	CG4316A682AB LH RNF HOOD HINGE ON BODY LH -	-	1	Enquire
21	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	18	Enquire
22	GOAG33F02660AA	PLR FRT BDY LWR FRT	GOAG33F02660AA PLR FRT BDY LWR FRT Structural Cat. A only	-	1	Enquire
23	GOAG33F02661AA	PLR FRT BDY LWR FRT	GOAG33F02661AA PLR FRT BDY LWR FRT Structural Cat. A only	-	1	Enquire
24	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	6G3371490AA Nutplate, A Post Hinge, Upper, RH -	-	1	Enquire
25	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	6G3315110AB Nutplate M8, ??post hinge, lower, RH -	-	1	Enquire
26	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	6G3394545AA Nutplate, A Post Hinge, Upper, LH -	-	1	Enquire
27	22AB326GP	TAILGATE COOLING AIR DUCT RH	22AB326GP TAILGATE COOLING AIR DUCT RH -	-	1	Enquire
28	GOAG33F02662AA	EXTRUSION FRONT BODY PILLAR LOWER RH	GOAG33F02662AA EXTRUSION FRONT BODY PILLAR LOWER RH Structural Cat. A only	-	1	Enquire
29	GOAG33F02663AA	EXT FRT BDY PLR LWR	GOAG33F02663AA EXT FRT BDY PLR LWR Structural Cat. A only	-	1	Enquire
30	6G33486226AA	Nutplate, M8, IP beam	6G33486226AA Nutplate, M8, IP beam -	-	2	Enquire
31	4G43111C61AD	PNL DUMMY FLR FRT	4G43111C61AD PNL DUMMY FLR FRT Structural Cat. A only	-	1	Enquire
32	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head -	-	13	Enquire
33	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE -	-	2	Enquire
