Aston Martin GT VIRAGE (2012-2013) - Interior Trim & Ornamentation - Main Floor Trim, RHD, B&O

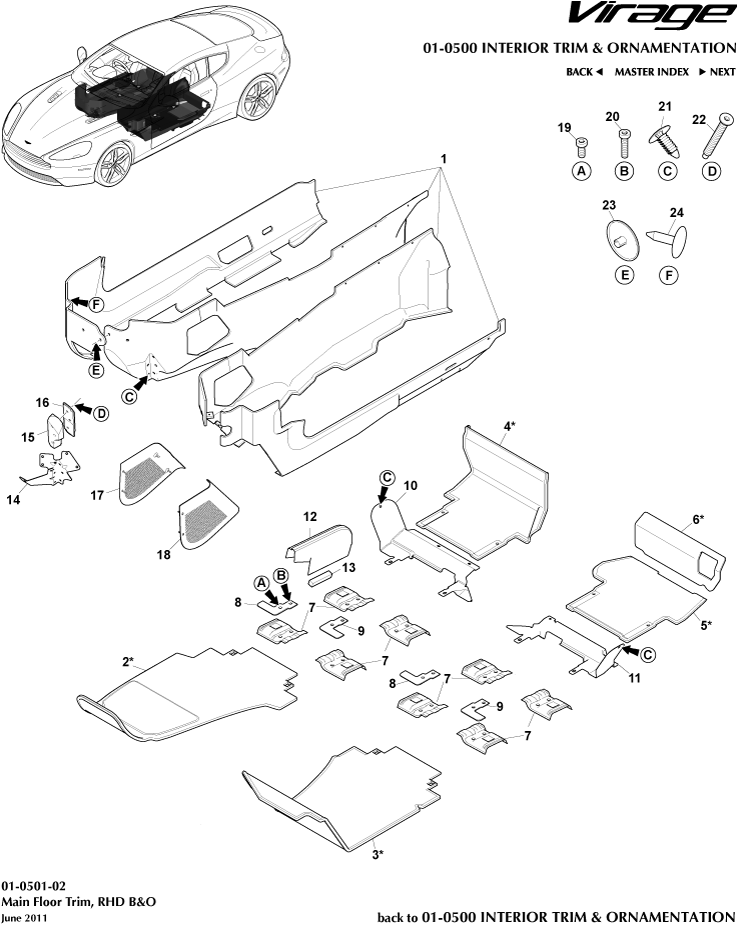

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
*	8G43281B12ADW	KIT ASSY FLR CRPT RH	8G43281B12ADW KIT ASSY FLR CRPT RH -	-	1	Enquire
-	6G33100N00AA	Adhesive Tape, Double Sided	6G33100N00AA Adhesive Tape, Double Sided -	-	-	Enquire
1	9D33281B10DDW	Kit assy, side carpet RHD	9D33281B10DDW Kit assy, side carpet RHD -	-	1	Enquire
2*	22AB131GP	GAS STRUT	22AB131GP GAS STRUT -	-	1	Enquire
3*	22AB133GP	POWER GAS STRUT	22AB133GP POWER GAS STRUT -	-	1	Enquire
4*	4G43130A36ACW	Carpet Assembly, Rear Floor RH	4G43130A36ACW Carpet Assembly, Rear Floor RH -	-	1	Enquire
5*	11A4539CP	ADHESIVE - SEMI-STRUCTURAL - DP620 - 400CC	11A4539CP ADHESIVE - SEMI-STRUCTURAL - DP620 - 400CC -	$330.56	1
6*	8G4310K973ABW	Carpet Heelboard Assembly, Rear LH	8G4310K973ABW Carpet Heelboard Assembly, Rear LH -	-	1	Enquire
7	6G33M1H403AA	Cover, Floor Pan	6G33M1H403AA Cover, Floor Pan -	-	8	Enquire
8	6G33666A40AB	Finisher, Carpet, Common, RHS	6G33666A40AB Finisher, Carpet, Common, RHS -	-	4	Enquire
9	6G33666A41AB	Finisher, Carpet, Common, LHS	6G33666A41AB Finisher, Carpet, Common, LHS -	-	4	Enquire
10	4G43100A90AA	Support Panel, Rear Floor, RH	4G43100A90AA Support Panel, Rear Floor, RH -	-	1	Enquire
11	8G43100A91AB	LH REAR FLOOR SUPPORT	8G43100A91AB LH REAR FLOOR SUPPORT -	-	1	Enquire
12	4G43831236ABW	HANDBRAKE GAITER ASSY RHD	4G43831236ABW HANDBRAKE GAITER ASSY RHD -	-	1	Enquire
13	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	4G43M4D4515AA Foam Strip, Handbrake Gaiter -	-	1	Enquire
14	6G333N234AB	BRACKET FOOTREST RHD	6G333N234AB BRACKET FOOTREST RHD -	-	1	Enquire
15	6G33044J08AA	Energy Absorber, Footrest	6G33044J08AA Energy Absorber, Footrest -	-	1	Enquire
16	9G3312021AA	Cover Plate, Foot Rest, RH	9G3312021AA Cover Plate, Foot Rest, RH -	-	1	Enquire
17	9D33311A76CA	Speaker Grille, Footwell, RH, B&O	9D33311A76CA Speaker Grille, Footwell, RH, B&O -	-	1	Enquire
18	9D33311A77CA	Speaker Grille, Footwell, LH, B&O	9D33311A77CA Speaker Grille, Footwell, LH, B&O -	-	1	Enquire
19	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head -	-	4	Enquire
20	6G3368D11BA	Screw, M5 x 20, Cap Head	6G3368D11BA Screw, M5 x 20, Cap Head -	-	4	Enquire
21	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) 20 per pack	-	4	Enquire
22	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK -	-	3	Enquire
23	697564	Retainer, Push On	697564 Retainer, Push On -	-	3	Enquire
24	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) 20 per pack	-	3	Enquire
