Front Heated Seats of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

Aston Martin GT VIRAGE (2012-2013) - Front Heated Seats

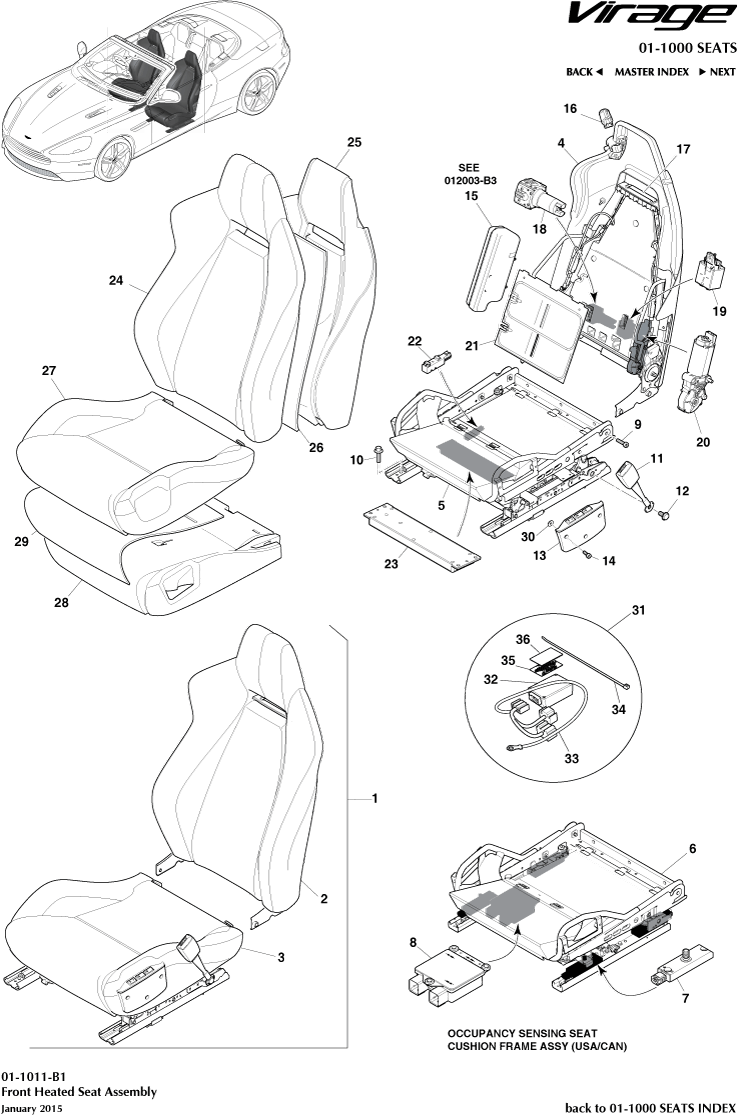

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4360009ADW	Seat Assembly, Front Complete, LH	CG4360009ADW Seat Assembly, Front Complete, LH -	-	1	Enquire
-	CG4360137ACW	Squab Assembly, Front Seat Trimmed, LH	CG4360137ACW Squab Assembly, Front Seat Trimmed, LH -	-	1	Enquire
-	CG4360051ABW	Cushion Assembly, Front Seat Trimmed, LH	CG4360051ABW Cushion Assembly, Front Seat Trimmed, LH -	-	1	Enquire
-	CG4364802AB	FRT ST SQB FRAME MEM	CG4364802AB FRT ST SQB FRAME MEM -	-	1	Enquire
-	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting USA/Can	-	1	Enquire
-	7G4314E693AA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH -	-	1	Enquire
-	CG4364573AAW	Cover Assembly, Front Seat Squab, LH	CG4364573AAW Cover Assembly, Front Seat Squab, LH -	-	1	Enquire
-	AG434D9513AA	Foam, Squab, LH	AG434D9513AA Foam, Squab, LH -	-	1	Enquire
-	CG4362901AAW	Cover Assembly, Front Seat Cushion, LH	CG4362901AAW Cover Assembly, Front Seat Cushion, LH -	-	1	Enquire
-	8G439516AA	FRT ST CUSH FOAM LH	8G439516AA FRT ST CUSH FOAM LH -	-	1	Enquire
1	CG4360008ADW	Seat Assembly, Front Complete, RH	CG4360008ADW Seat Assembly, Front Complete, RH -	-	1	Enquire
2	MY63L465C09CA	FRT ROPS CVR LH	MY63L465C09CA FRT ROPS CVR LH -	-	1	Enquire
3	708704	L/SAMPLE-PALE BLU-SA	708704 L/SAMPLE-PALE BLU-SA -	-	1	Enquire
4	CG4364800AB	FRT ST SQB FRAM MEM	CG4364800AB FRT ST SQB FRAM MEM -	-	1	Enquire
5	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting RoW	-	2	Enquire
6	7G43L60344CB	Cushion Frame, Front Seat, Non Height Adjusting, OCS	7G43L60344CB Cushion Frame, Front Seat, Non Height Adjusting, OCS USA/Can	-	1	Enquire
9	4G4361538AB	M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT	4G4361538AB M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT -	-	4	Enquire
10	703733	SCREW-M8x25 HF PI8.8	703733 SCREW-M8x25 HF PI8.8 4 Per Seat	-	8	Enquire
11	4G43613K22BD	Buckle Assembly, Front Seatbelt	4G43613K22BD Buckle Assembly, Front Seatbelt -	-	2	Enquire
12	14A3464CP	SCALP-LH-PAINTED-CCC	14A3464CP SCALP-LH-PAINTED-CCC -	$81.63	2
13	7G4314E693BA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	7G4314E693BA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH -	-	2	Enquire
16	AD33062A00AA	SEAT TILT SWITCH	AD33062A00AA SEAT TILT SWITCH -	-	1	Enquire
18	AG4365530AA	PUMP FRONT SEAT LUMBAR	AG4365530AA PUMP FRONT SEAT LUMBAR -	-	1	Enquire
19	AG4362690AA	VALVE FRONT SOLENOID SEAT LUMBAR	AG4362690AA VALVE FRONT SOLENOID SEAT LUMBAR -	-	1	Enquire
21	920033499	SPARCO SHOES FORMULA 41	920033499 SPARCO SHOES FORMULA 41 -	-	1	Enquire
24	CG4364572AAW	Cover Assembly, Front Seat Squab, RH	CG4364572AAW Cover Assembly, Front Seat Squab, RH -	-	1	Enquire
25	AG434D9514AA	Foam, Squab, RH	AG434D9514AA Foam, Squab, RH -	-	1	Enquire
27	CG4362900AAW	Cover Assembly, Front Seat Cushion, RH	CG4362900AAW Cover Assembly, Front Seat Cushion, RH -	-	1	Enquire
30	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20. Front Fixing, LH Seat Only	-	1	Enquire
31	FG43632B22AA	SUPERVISOR KIT	FG43632B22AA SUPERVISOR KIT See QN-01-0026, January 2015	-	1	Enquire
32	FG4318B512AA	SUPERVISOR BOX	FG4318B512AA SUPERVISOR BOX Part of kit #31	-	2	Enquire
33	FG4314B510AA	SUPERVISOR HARNESS	FG4314B510AA SUPERVISOR HARNESS Part of kit #31	-	2	Enquire
34	4G43N02091AB	Tie, Wrap	4G43N02091AB Tie, Wrap Part of kit #31	-	2	Enquire
35	920033488	SPARCO RACING GLOVES 12	920033488 SPARCO RACING GLOVES 12 Part of kit #31	-	2	Enquire
36	920033489	SPARCO RACING GLOVES 13	920033489 SPARCO RACING GLOVES 13 Part of kit #31	-	2	Enquire
