Interior Trim & Ornamentation - Cabin Rear Trim, 2+0 Coupe

Aston Martin GT VIRAGE (2012-2013)

Find Your Part

Aston Martin GT VIRAGE (2012-2013) - Interior Trim & Ornamentation - Cabin Rear Trim, 2+0 Coupe

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

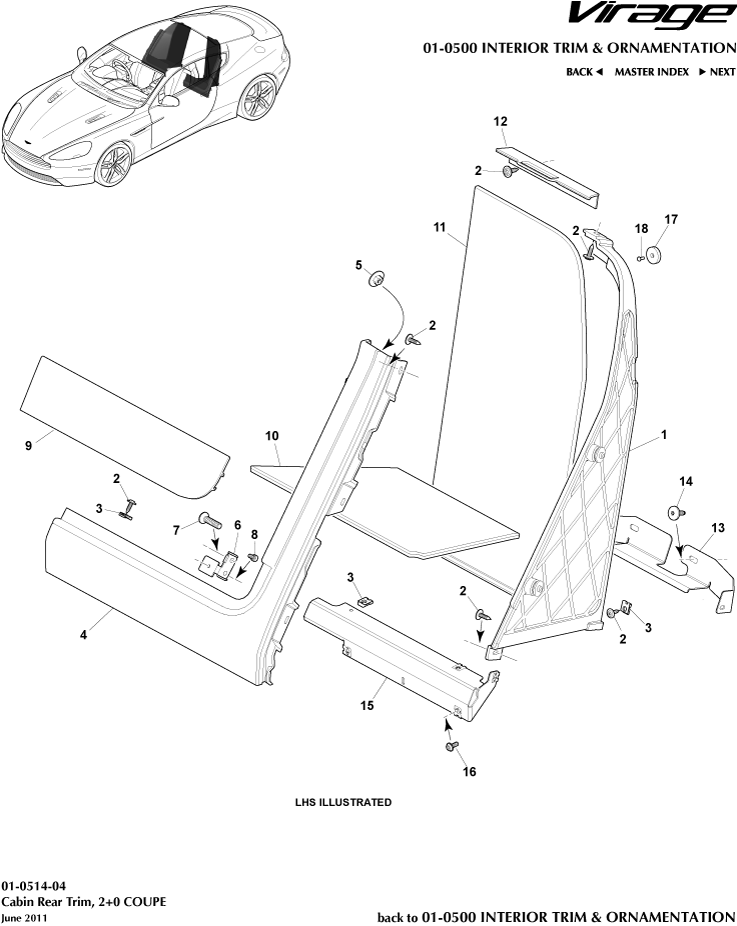

Interior Trim & Ornamentation - Cabin Rear Trim, 2+0 Coupe of Aston Martin Aston Martin GT VIRAGE (2012-2013) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D33045C63ADW
Panel Assy, Stowage Compartement Side, LH
- 		- 1 Enquire
- 8D33313A72AB
Bracket, Cabin Finisher, Outboard, RH
- 		- 1 Enquire
- 22AA847GP
ANTI SQUEAK TAPE 0.5MM 100X3
- 		- 1 Enquire
- 22AB727GP
SEAL BONNET MARGIN MLD RH
- 		- 1 Enquire
1 8D33045C62ADW
Panel Assy, Stowage Compartement Side, RH
- 		- 1 Enquire
2 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
- 		- 24 Enquire
3 701448
Spring Nut, U Type, 4.2 x 2.1
- 		- 12 Enquire
5 22AB727GP
SEAL BONNET MARGIN MLD RH
- 		- 2 Enquire
6 8D33313A73AB
Bracket, Cabin Finisher, Outboard, LH
- 		- 1 Enquire
7 00RB218
Clip - Finisher - Rear Quarter Glass
- 		- 4 Enquire
12 22AB727GP
SEAL BONNET MARGIN MLD RH
- 		- 1 Enquire
13 8D33310A85AB
BRKT BLK HD SD LH
- 		- 1 Enquire
14 22AB727GP
SEAL BONNET MARGIN MLD RH
- 		- 4 Enquire
16 22AB727GP
SEAL BONNET MARGIN MLD RH
- 		- 6 Enquire
17 4G43C045F70AB
RETAINER PASSENGER AIRBAG COVER PAD
- 		- 10 Enquire
18 8D330465A02AE
PNL ASY MLDG CVR RR
- 		- 10 Enquire
