Sound & Heat Control - Heat Insulation, Vehicle Fit

Aston Martin GT VIRAGE (2012-2013)

Find Your Part

Aston Martin GT VIRAGE (2012-2013) - Sound & Heat Control - Heat Insulation, Vehicle Fit

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

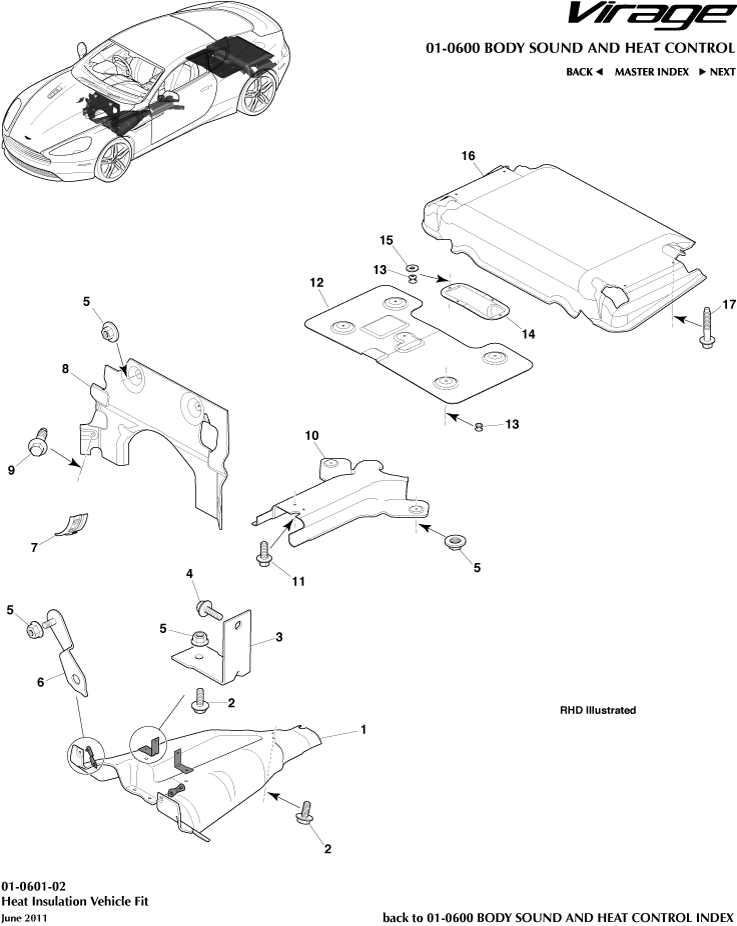

Sound & Heat Control - Heat Insulation, Vehicle Fit of Aston Martin Aston Martin GT VIRAGE (2012-2013) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G43017A16AG
HEATSHIELD - FRONT BULKHEAD - LHD
- 		- 1 Enquire
1 4G4311398AF
HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT
- 		- 1 Enquire
2 703752
Screw and Washer, M6 x 16
- 		- 6 Enquire
3 4G433962CD
HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET
- 		- 2 Enquire
4 703752
Screw and Washer, M6 x 16
- 		- 2 Enquire
6 4G433962ED
Bracket, Support
- 		- 2 Enquire
7 4G432B485AC
HEATSHIELD - BRAKE BOOSTER
- 		- 1 Enquire
8 4G43017A16BG
HEATSHIELD - FRONT BULKHEAD - RHD
- 		- 1 Enquire
9 703151
Screw M6x16 Washer Hex HD Chrome Free
- 		- 2 Enquire
11 703265
Screw, M6 x 16, Hex Flange Head
- 		- 2 Enquire
12 4G439A032AG
Heat Shield, Fuel Tank
- 		- 1 Enquire
13 13A2053CP
REGULATOR & MOTOR ASSY - DOOR GLASS - RH
- 		- 9 Enquire
14 4G439B184AB
Heat Shield, Fuel Tank, Auxiliary
- 		- 1 Enquire
15 13A2053CP
REGULATOR & MOTOR ASSY - DOOR GLASS - RH
- 		- 4 Enquire
16 CG435290AB
Heat Shield, Rear Silencer
- 		- 1 Enquire
17 703145
M6 x 30 WSHR HO BOLT ASSY CHROME FREE
- 		- 4 Enquire
