Body Structure - Underbody of Aston Martin Aston Martin GT VIRAGE (2012-2013)

View All

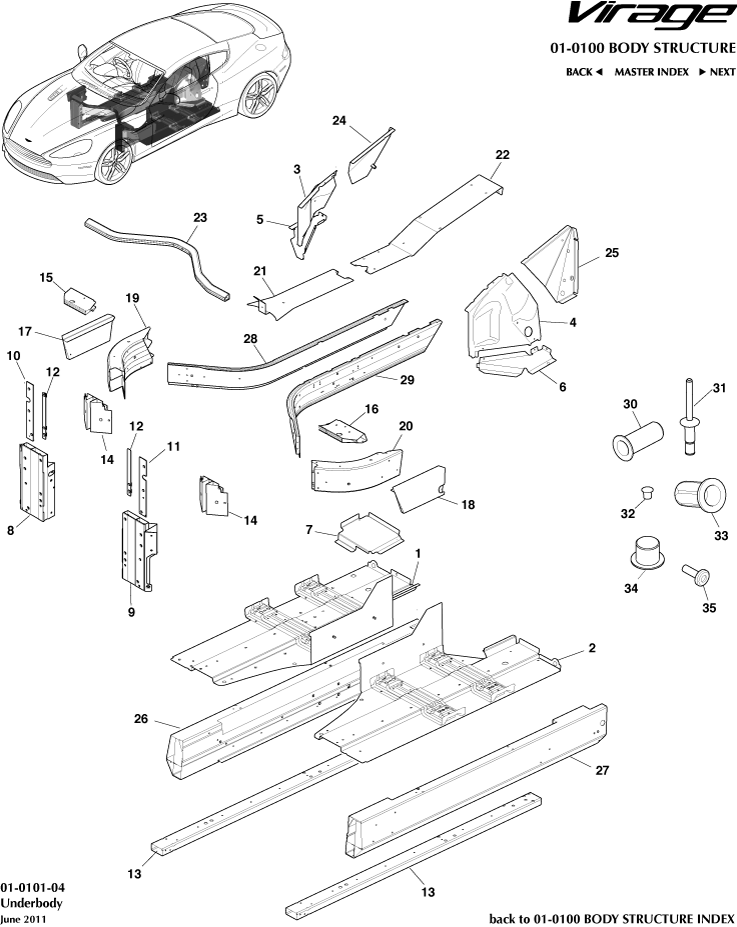

Aston Martin GT VIRAGE (2012-2013) - Body Structure - Underbody

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AA421GP	ASSY DOOR RH	22AA421GP ASSY DOOR RH VOLANTEStructural Cat. A only	-	1	Enquire
-	BG43L1899AA	ASSEMBLY SILL OUTER LH	BG43L1899AA ASSEMBLY SILL OUTER LH VOLANTEStructural Cat. A only	-	1	Enquire
1	4G431610879S	Panel assy, floor, RH	4G431610879S Panel assy, floor, RH VIN stamp required.Structural Cat. A only	-	1	Enquire
2	4G431610880	PANEL FLOOR LH	4G431610880 PANEL FLOOR LH Structural Cat. A only	-	1	Enquire
3	8G4313058AB	TUNNEL REAR SIDE RH	8G4313058AB TUNNEL REAR SIDE RH Structural Cat. A only	-	1	Enquire
4	9G4313059AB	TUNNEL REAR SIDE LH	9G4313059AB TUNNEL REAR SIDE LH Structural Cat. A only	-	1	Enquire
5	8G4367340AA	PANEL REAR SEAT HEEL BOARD LOWER RH	8G4367340AA PANEL REAR SEAT HEEL BOARD LOWER RH Structural Cat. A only	-	1	Enquire
6	8G4367341GA	PANEL REAR SEAT HEEL BOARD LOWER LH	8G4367341GA PANEL REAR SEAT HEEL BOARD LOWER LH Structural Cat. A only	-	1	Enquire
7	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	8G4367342AA SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH Structural Cat. A only	-	1	Enquire
8	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	4G432010876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9 Structural Cat. A only	-	1	Enquire
9	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	4G432010877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9 Structural Cat. A only	-	1	Enquire
10	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12 -	-	1	Enquire
11	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12 -	-	1	Enquire
12	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	8G43390725AA NUT PLATE FRONT END MOUNTING INR M12 -	-	2	Enquire
13	CG4310120AA	MEMBER FLOOR SIDE FRONT	CG4310120AA MEMBER FLOOR SIDE FRONT Structural Cat. A only	-	2	Enquire
14	22AC871GP	REINFOR. BRACKET REAR FENDER REAR LH	22AC871GP REINFOR. BRACKET REAR FENDER REAR LH Structural Cat. A only	$58.39	2
15	22AC872GP	REINFOR. BRACKET REAR FENDER REAR RH	22AC872GP REINFOR. BRACKET REAR FENDER REAR RH Structural Cat. A only	$58.39	1
16	AG3310095AA	Member, Reinforcement Front Side, LH	AG3310095AA Member, Reinforcement Front Side, LH Structural Cat. A only	-	1	Enquire
17	22AA392GP	ASSY BONNET	22AA392GP ASSY BONNET Structural Cat. A only	-	1	Enquire
18	GOAG33100A95AA	Member, Lower Reinforcement, Front Side, LH	GOAG33100A95AA Member, Lower Reinforcement, Front Side, LH Structural Cat. A only	-	1	Enquire
19	11A3663CP	BALL STUD - LUGGAGE COMPARTMENT LID - ENGINE COVER - STRUT	11A3663CP BALL STUD - LUGGAGE COMPARTMENT LID - ENGINE COVER - STRUT Structural Cat. A only	$6.59	1
20	00RA127	SCREW - M6X20 - HEX	00RA127 SCREW - M6X20 - HEX Structural Cat. A only	-	1	Enquire
21	P0BG33113C18AA	Panel, tunnel top front	P0BG33113C18AA Panel, tunnel top front Structural Cat. A only	-	1	Enquire
22	RY6314B278AA	CLN FD BAR CBL	RY6314B278AA CLN FD BAR CBL Structural Cat. A only	-	1	Enquire
23	13A5155CP	Hinge - Bonnet - RH	13A5155CP Hinge - Bonnet - RH Structural Cat. A only	$324.69	1
24	SY9Y16005HC	FENDER FRONT RH	SY9Y16005HC FENDER FRONT RH Structural Cat. A only	-	1	Enquire
25	13A6312CP	Hinge - Bonnet - LH	13A6312CP Hinge - Bonnet - LH Structural Cat. A only	$324.69	1
26	22AA403GP	GAS STRUT BONNET	22AA403GP GAS STRUT BONNET COUPEStructural Cat. A only	-	1	Enquire
27	BG43C1899AA	Assembly Sill Out LH	BG43C1899AA Assembly Sill Out LH COUPEStructural Cat. A only	-	1	Enquire
28	22AA407GP	ASSY DOOR LH	22AA407GP ASSY DOOR LH Structural Cat. A only	-	1	Enquire
29	22AD320GP	FRT DOOR STONE CHIP PROTECTOR LH	22AD320GP FRT DOOR STONE CHIP PROTECTOR LH Structural Cat. A only	$33.38	1
30	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni -	-	4	Enquire
31	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind -	-	A/R	Enquire
32	6G3368885AB	SELF PIERCING RIVET 5.0 x 6.0mm	6G3368885AB SELF PIERCING RIVET 5.0 x 6.0mm -	-	A/R	Enquire
33	6G3333800AA	Rivnut, 7/16UNF hex flange	6G3333800AA Rivnut, 7/16UNF hex flange -	-	4	Enquire
34	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	4G43N800631AA Rubber Plug, 11mm, Black Thermoplastic -	-	2	Enquire
35	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 -	-	6	Enquire
